Elite Series
Miami-Dade NOA
HVHZ
Approved
Impact Rating LMI
Design Pressure +90/-90 psf
NFRC Certified
ES Windows Elite ES-5000 Casement
ES Windows's mid-tier aluminum impact line covering the full residential operation range.
Flagship aluminum impact casement in Elite, available in X and XX configurations on a 2-1/8 inch frame depth. Stainless 4-bar hinges, rated to 90 psf.
Miami-Dade NOA
HVHZ
Approved
Impact Rating LMI
Design Pressure +90/-90 psf
NFRC Certified
Impact protection, built for South Florida

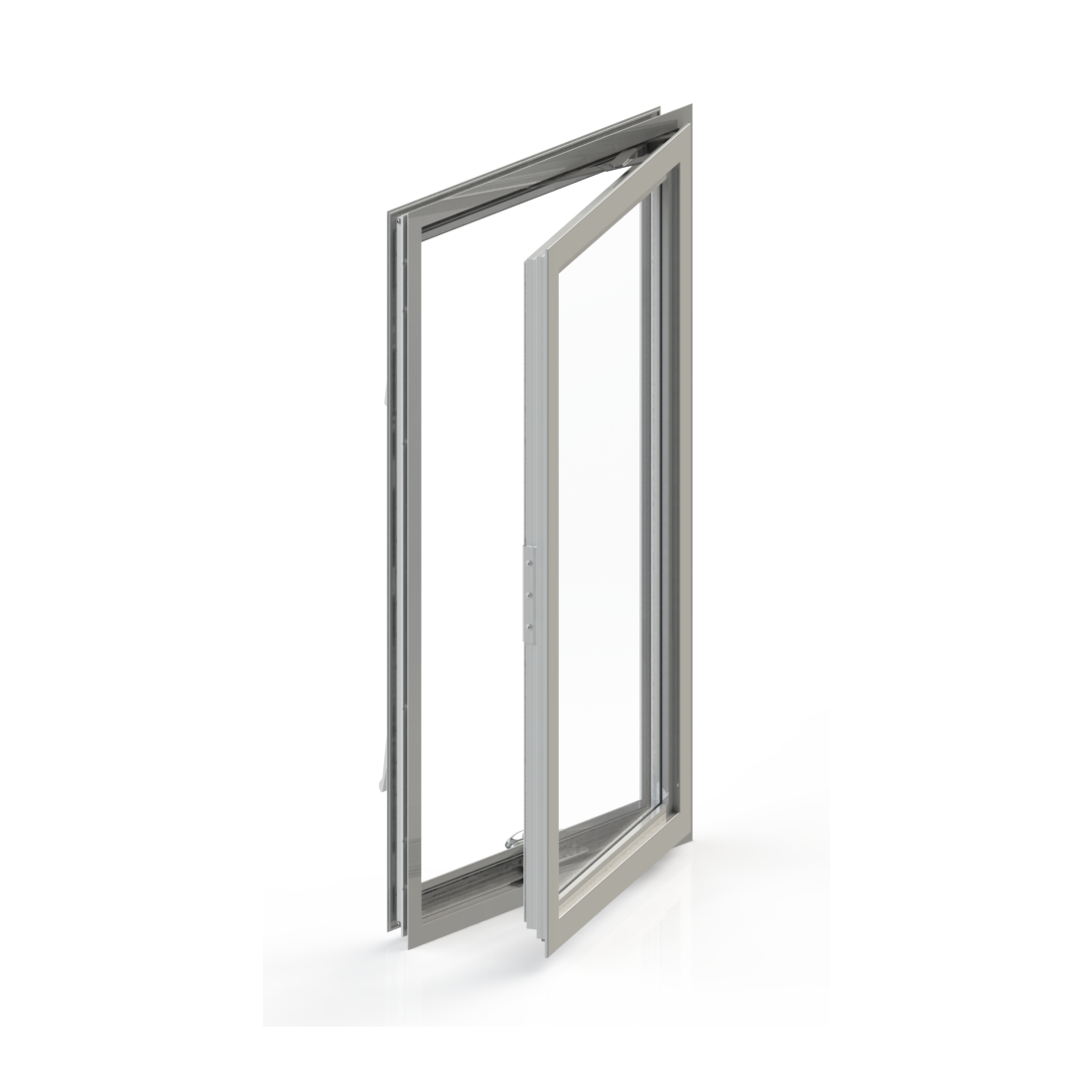

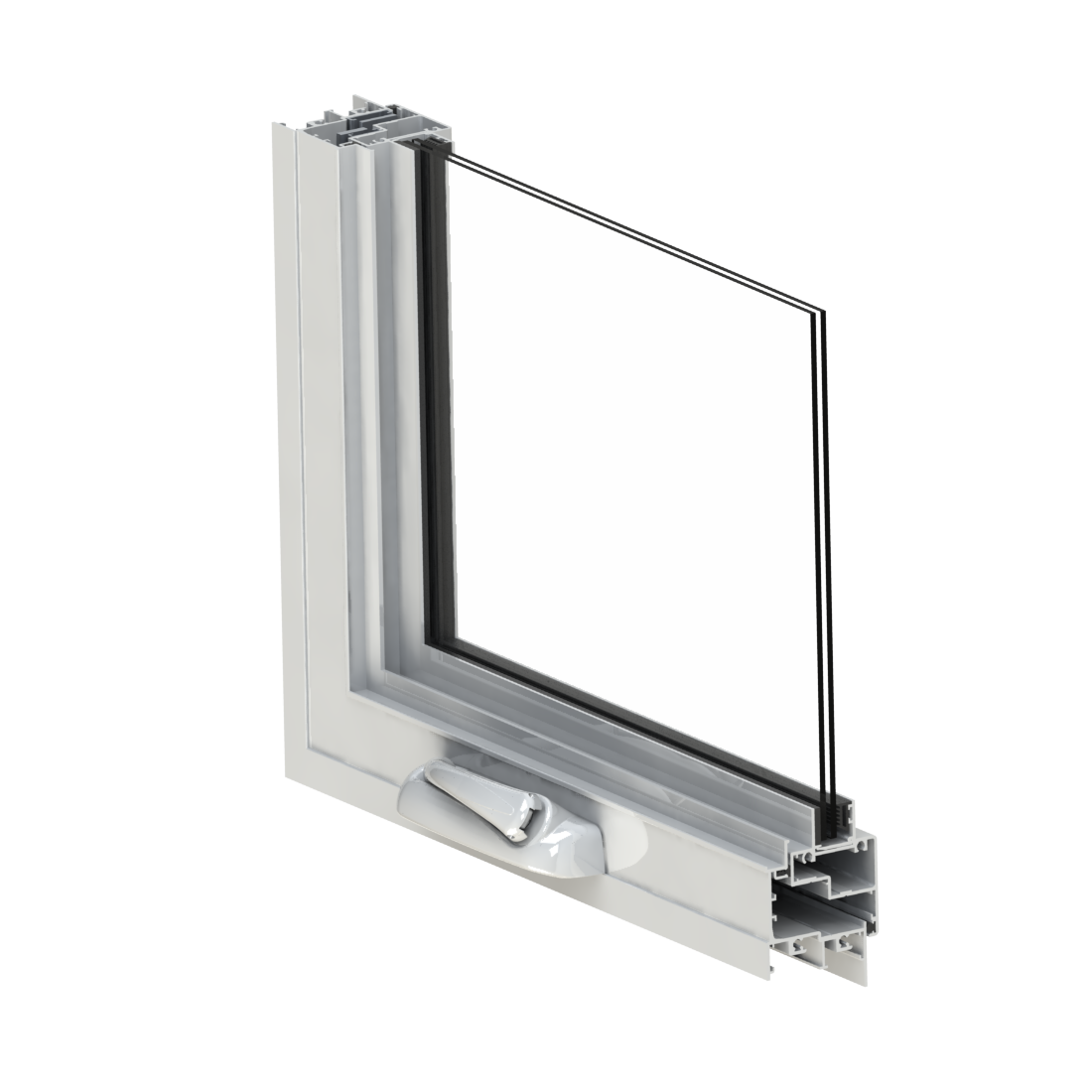

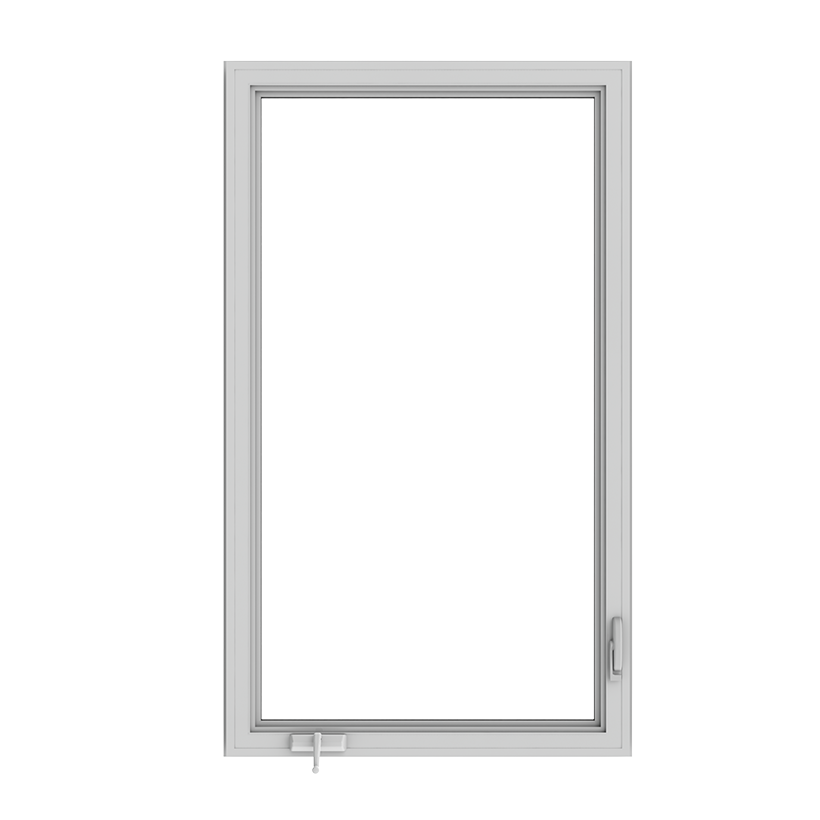

The ES-5000 is the Elite flagship aluminum impact casement window, available in X and XX configurations on a 2-1/8 inch frame depth. Heavy-duty stainless-steel 4-bar hinges keep the sash aligned across the operation range. LMI impact-rated at 90 psf positive and negative design pressure for HVHZ installations.
- Tested & certified to Miami-Dade HVHZ hurricane standards
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
36 x 76 in or 72 x 76 in
Design Pressure
+90/-90 psf
U-Factor
0.7
SHGC
0.22
Visible Trans.
0.26–0.58
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Project-out | 36 x 76 in or 72 x 76 in | +90/-90 psf |
| Fixed | 36 x 76 in or 72 x 76 in | +90/-90 psf |
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| 3/4" insulated laminated — 5/32" HS + 1/4" air + 1/8" HS + 0.090 SentryGlas + 5/32" HS (LMI/SMI) | 0.7 | 0.21 | — | — |
| 3/8" laminated — 5/32" HS + 0.090 SentryGlas + 1/8" HS (LMI/SMI) | 1.026 | 0.382 | 0.396 | 14 |
| 5/16" laminated — 1/8" HS + 0.090 SentryGlas + 1/8" HS (LMI/SMI) | 1.026 | 0.382 | 0.396 | 14 |
Performance Certifications
- 23-0717.25 exp. 2028
Options
Related Products
More models in the Elite Series.
Ready to install the ES Windows Elite ES-5000 Casement?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other casement models Armor Pro installs.
Pella
Pella Lifestyle Casement
See price & specs
PGT Custom Windows & Doors
PGT WinGuard Aluminum Casement CA740A
See price & specs
Eastern Architectural Systems
EAS 143 Casement Impact Vinyl (Bertha-Branded)
See price & specs
ECO Window Systems
Eco-Guard Casement Window Series 500
See price & specs
Frequently Asked Questions
The ES-5000 is the flagship aluminum impact casement window in ES Windows's Elite line, built on a 2-1/8 inch frame depth and offered in X (single operable) and XX (two-sash) configurations. A casement cranks open on side hinges, so it ventilates fully and seals tightly when closed. We install the ES-5000 on South Florida homes where you want a fully opening, hurricane-rated casement with HVHZ certification at Elite's mid-tier pricing.
Yes. The ES-5000 is a Large Missile Impact (LMI) rated casement and carries Miami-Dade NOA 23-0717.25, which is valid for the High-Velocity Hurricane Zone covering Miami-Dade and Broward counties. That NOA is listed as expiring April 3, 2028, and we confirm the current approval on file at the time of your permit. As your installer, we make sure the ES-5000's approval matches your jurisdiction's requirements.
The ES-5000 installs up to a maximum of 36 by 76 inches in both its project-out and fixed configurations. It is rated to a design pressure of +90/-90 psf, the wind load the unit is built to resist. Because the design pressure your opening must reach depends on its size and wind exposure, we confirm the rating your specific window must meet at quote.
The ES-5000's top glass package is a 3/4-inch insulated laminated unit (5/32-inch HS + 1/4-inch air + 1/8-inch HS + 0.090 SentryGlas + 5/32-inch HS) rated for both large- and small-missile impact, with a U-factor of 0.70 and SHGC of 0.21. It is also offered in 3/8-inch and 5/16-inch laminated make-ups. Across the line the SHGC ranges from about 0.21 to 0.53 and the U-factor from roughly 0.69 to 1.05, so we recommend the package that best balances energy performance and budget for your home.
The ES-5000 is available in anodized and painted frame finishes, and uses heavy-duty stainless-steel 4-bar hinges with a multipoint lock and operator as standard hardware, plus an optional edge drip. It can be ordered with an aluminum-frame or fiberglass-mesh screen, a fin frame, and muntins (grids) for a divided-light look. We will go over the finish, hardware, and grid options so the ES-5000 matches your home.
Installed pricing for the ES-5000 depends on the size, the X or XX configuration, the glass package, the finish and grid options, and the condition of the existing opening, so there is no single price. The Elite line is positioned to deliver HVHZ-rated Miami-Dade certification without architectural-grade pricing, and as your installer Armor Pro handles measurement, permitting, and code-compliant installation. Contact us for a free, no-obligation estimate and we will measure your openings and quote the ES-5000.
Yes. Elite is ES Windows's mid-tier aluminum impact line and carries current Miami-Dade NOAs filed under the 2023 (8th edition) Florida Building Code across its operation range, so it is HVHZ-eligible in Miami-Dade and Broward. We confirm the exact approval and design pressure for each opening before ordering.
Elite spans the full standard residential range: casement, single hung, fixed picture, sliding window, French door, and sliding glass door, all under one certified system. That breadth is why it shows up on so many quotes; a whole house can be specified on a single line. What it does not include are the architectural pivot and folding doors, which live in the Prestige tier.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
