143 Series Vinyl
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +70/-70 psf
NFRC Certified
Made in Florida
EAS 143 Casement Impact Vinyl (Bertha-Branded)
EAS's volume-tier vinyl window family with a 3-1/4 inch fusion-welded frame.
Vinyl impact casement on the 143 Series frame with HVHZ certification, marketed under the Bertha Vinyl Impact branding for South Florida coastal.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +70/-70 psf
NFRC Certified
Made in Florida
Frame finish
White
Desert Sand
Custom
Impact protection, built for South Florida

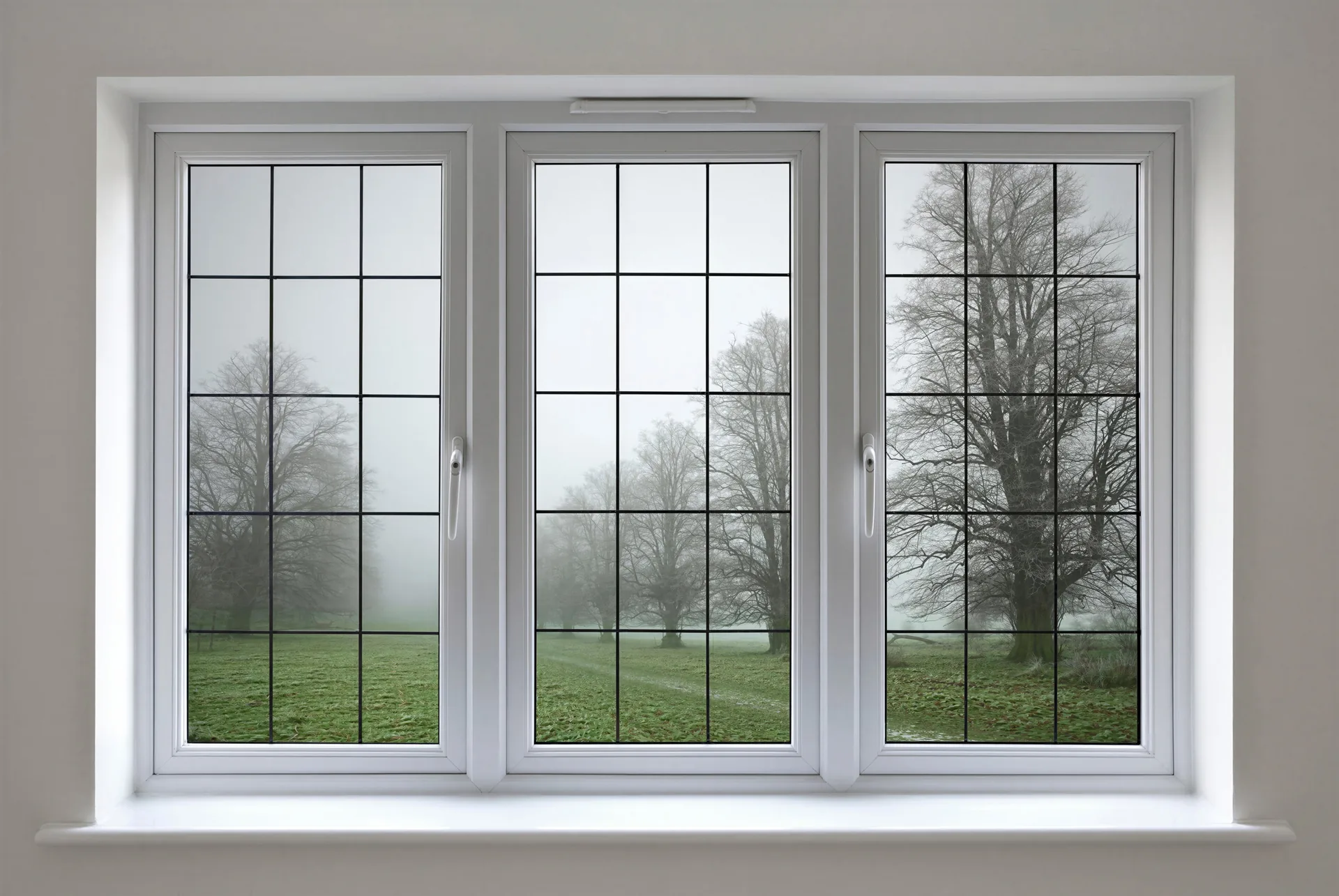

The 143 Casement HVHZ is EAS's vinyl impact casement window, built on the 143 Series fusion-welded vinyl frame with HVHZ certification for South Florida coastal installations. Marketed under the Bertha Vinyl Impact branding and rated to 70 psf design pressure with LMI impact certification.
- Florida Building Code product-approved
- Vinyl frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Patterns
Grille Styles
Grids Between Glass (GBG)Simulated Divided Light (SDL)
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Vinyl
Max Size
37 x 76 in
Design Pressure
+70/-70 psf
U-Factor
0.28–0.44
SHGC
0.14–0.55
Visible Trans.
0.18–0.59
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Casement — Fin & Flange, HVHZ impact | 37 x 76 in | +70/-70 psf |
Fin & Flange.
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT |
|---|---|---|---|
| Clear / arg90 / clear (DS/DS) - 3/4" IG | 0.42 | 0.55 | 0.59 |
| E366 / arg90 / clear (DS/DS) - 3/4" IG | 0.27 | 0.2 | 0.47 |
| E366 / arg90 / Solargray (DS/DS) - 3/4" IG | 0.27 | 0.2 | 0.31 |
| E340 / arg90 / clear (DS/DS) - 3/4" IG | 0.28 | 0.14 | 0.28 |
| E452 / arg90 / clear (DS/DS) - 3/4" IG | 0.27 | 0.17 | 0.38 |
| Clear / arg90 / lami (DS/DS|090PVB|DS) - 3/4" IG | 0.44 | 0.52 | 0.58 |
| E366 / arg90 / lami (DS/DS|090PVB|DS) - 3/4" IG | 0.32 | 0.21 | 0.46 |
| E366 / arg90 / Solargray-lami (DS/DS|090PVB|DS) - 3/4" IG | 0.32 | 0.2 | 0.31 |
| E340 / arg90 / lami (DS/DS|090PVB|DS) - 3/4" IG | 0.32 | 0.14 | 0.27 |
| E452 / arg90 / lami (DS/DS|090PVB|DS) - 3/4" IG | 0.31 | 0.17 | 0.37 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- FL14609.R11
- FL15971
Options
Related Products
More models in the 143 Series Vinyl.
Ready to install the EAS 143 Casement Impact Vinyl (Bertha-Branded)?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other casement models Armor Pro installs.
Frequently Asked Questions
Yes. The EAS 143 Casement is a vinyl impact casement carrying HVHZ certification with a Large Missile Impact (LMI) rating, marketed under EAS's Bertha Vinyl Impact branding for South Florida coastal installations. That means it's built to pass the High-Velocity Hurricane Zone requirements without separate shutters. When we quote your project we'll confirm the exact approval that matches your wind zone and opening.
The 143 Casement is approved up to 37 inches wide by 76 inches tall as a fin-and-flange HVHZ impact unit. It's rated to a +70/-70 psf design pressure, which covers most South Florida residential openings. We'll measure each opening and confirm the size and pressure rating you need at your free estimate.
It's built on a 3-1/4 inch fusion-welded vinyl frame with argon-filled 3/4-inch insulated glass, and the energy numbers depend on the glass package you choose. Across the available glass makeups the U-factor ranges from 0.27 to 0.44 and the SHGC from 0.14 to 0.55. For the best efficiency, the E366 and E340 Low-E packages get the U-factor down to 0.27–0.28 with SHGC as low as 0.14, and we'll help you pick the package that fits your heat-gain and light goals.
The 143 Casement comes in clear and several Low-E glass packages, including E366, E340, E452, and tinted Solargray, in both standard and laminated impact makeups. For the lowest solar heat gain, the E340 / argon / clear package hits an SHGC of 0.14 with a U-factor of 0.28, while E366 packages balance heat control with more visible light (VT up to 0.47). We'll walk you through the trade-off between heat rejection and natural light when we quote the window.
The 143 Casement is offered in White as the standard finish, plus Desert Sand and a two-tone Bronze Exterior / White Interior option. For the glass look, you can add grids in Grids Between Glass (GBG), Simulated Divided Light (SDL), or Colonial, Prairie, and Perimeter patterns. Hardware includes a standard multi-point lock and Truth Hardware with E-Guard, with egress hinge and coastal hardware available.
We don't quote a flat price because the installed cost of a 143 Casement depends on the size of the opening, the glass package you choose, and the condition and prep of the existing opening. A larger unit, a laminated or specialty Low-E glass package, and added options like grids or coastal hardware all affect the number. Armor Pro provides a free, no-obligation estimate so you get an exact installed price for your specific windows.
The 143 Series is EAS's volume-tier vinyl window family, the everyday line for residential replacement. It is built on the same 3-1/4 inch fusion-welded frame as the flagship Bertha line, with a 0.070 inch wall that EAS markets as about 12 percent thicker than most vinyl windows. It is the broadest line in the catalog, covering six operation styles on one frame platform.

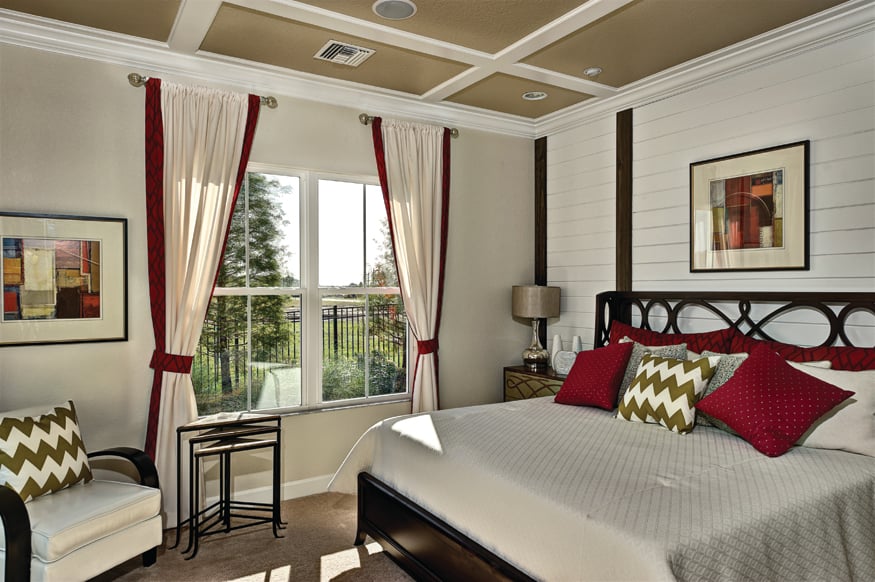

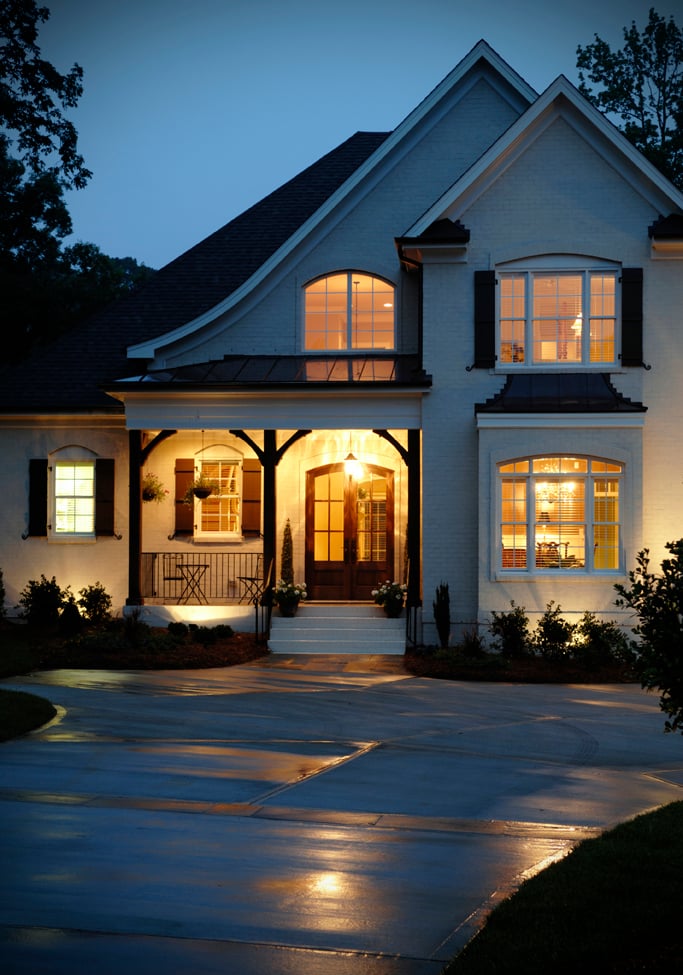

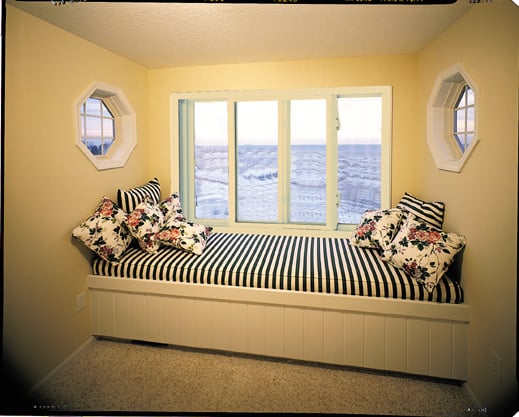

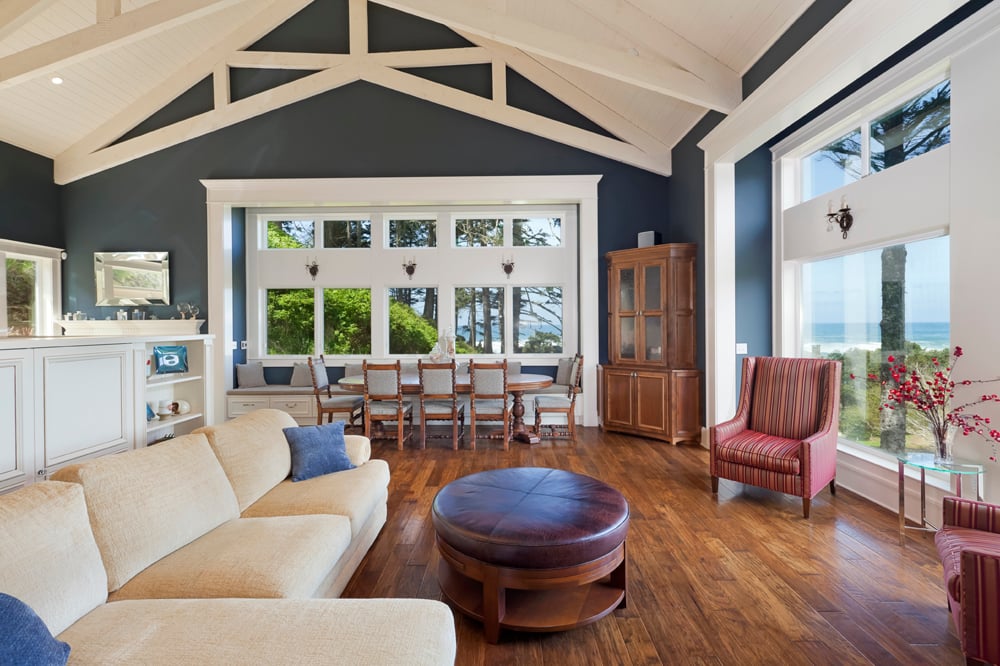

Six: single hung, double hung, horizontal roller, picture, casement, and awning. That is the widest operation coverage in the EAS vinyl catalog, which is why it is the workhorse line for a full-home replacement where you want to keep a consistent frame look across different opening types. Single hung is the volume style; the fixed picture model carries the highest design pressure in the line at 80 psf.
Eastern Architectural Systems (EAS) is a Florida manufacturer based in Fort Myers, with roots in the Eastern Metal Supply family. It builds vinyl and aluminum impact-resistant windows and doors for the Florida residential market, and is the maker of the Bertha impact line. EAS has been part of Cornerstone Building Brands since late 2023, though it still operates under its own brand. We install and service EAS products throughout South Florida.
