ClassicVue Max Aluminum
Miami-Dade NOA
Florida DBPR
Approved
HVHZ
Approved
Design Pressure +90/-150 psf
NFRC Certified
Made in Florida
PGT ClassicVue Max Aluminum Casement CA640A
PGT's premium non-impact aluminum line for Florida coastal non-HVHZ replacement projects.
Premium non-impact aluminum casement in single, double, and triple sash configurations with foldaway handle and optional wash hinge for cleaning.
Miami-Dade NOA
Florida DBPR
Approved
HVHZ
Approved
Design Pressure +90/-150 psf
NFRC Certified
Made in Florida
Frame finish
White
Bronze
Black
Clear Anodize
Custom
Impact protection, built for South Florida

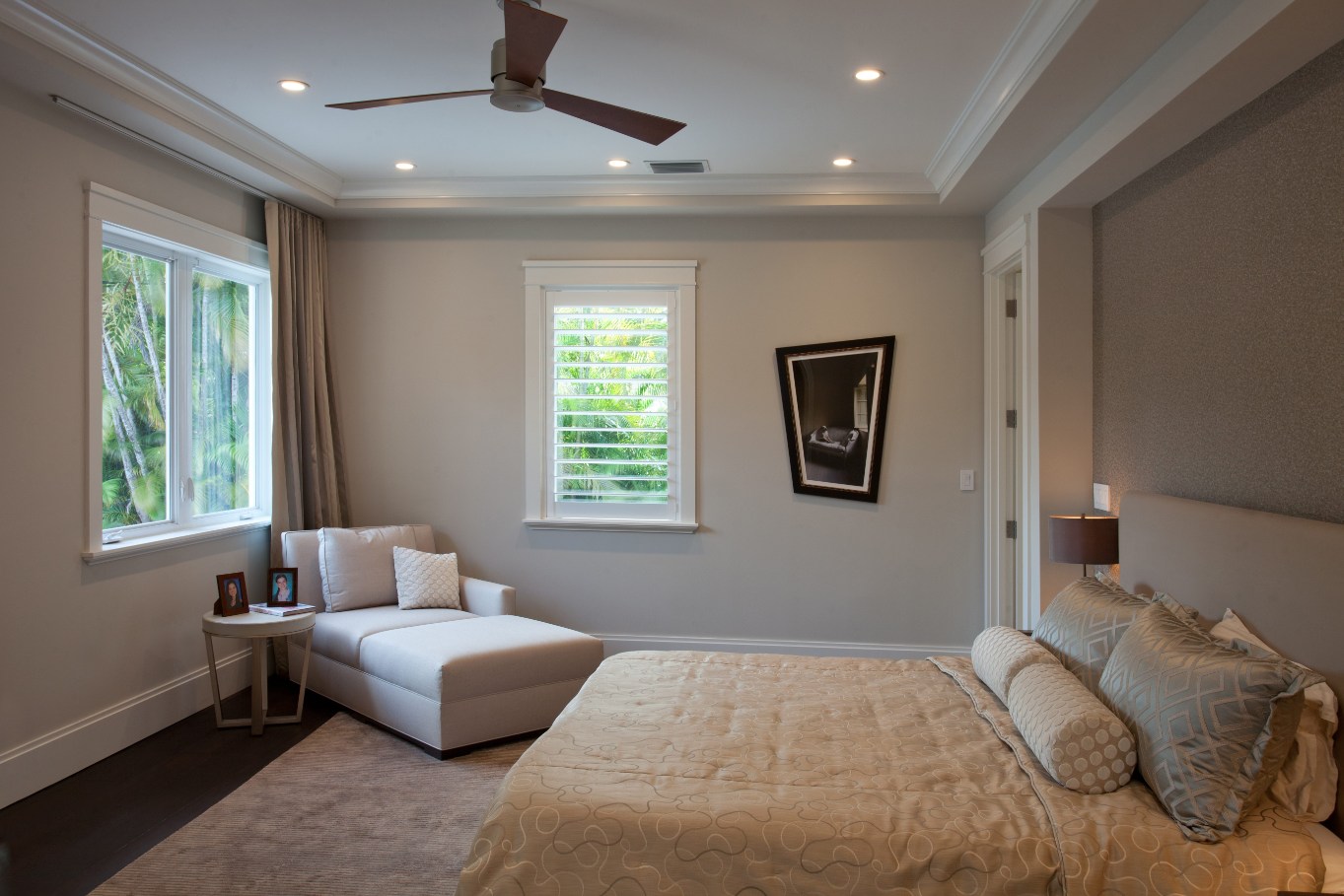

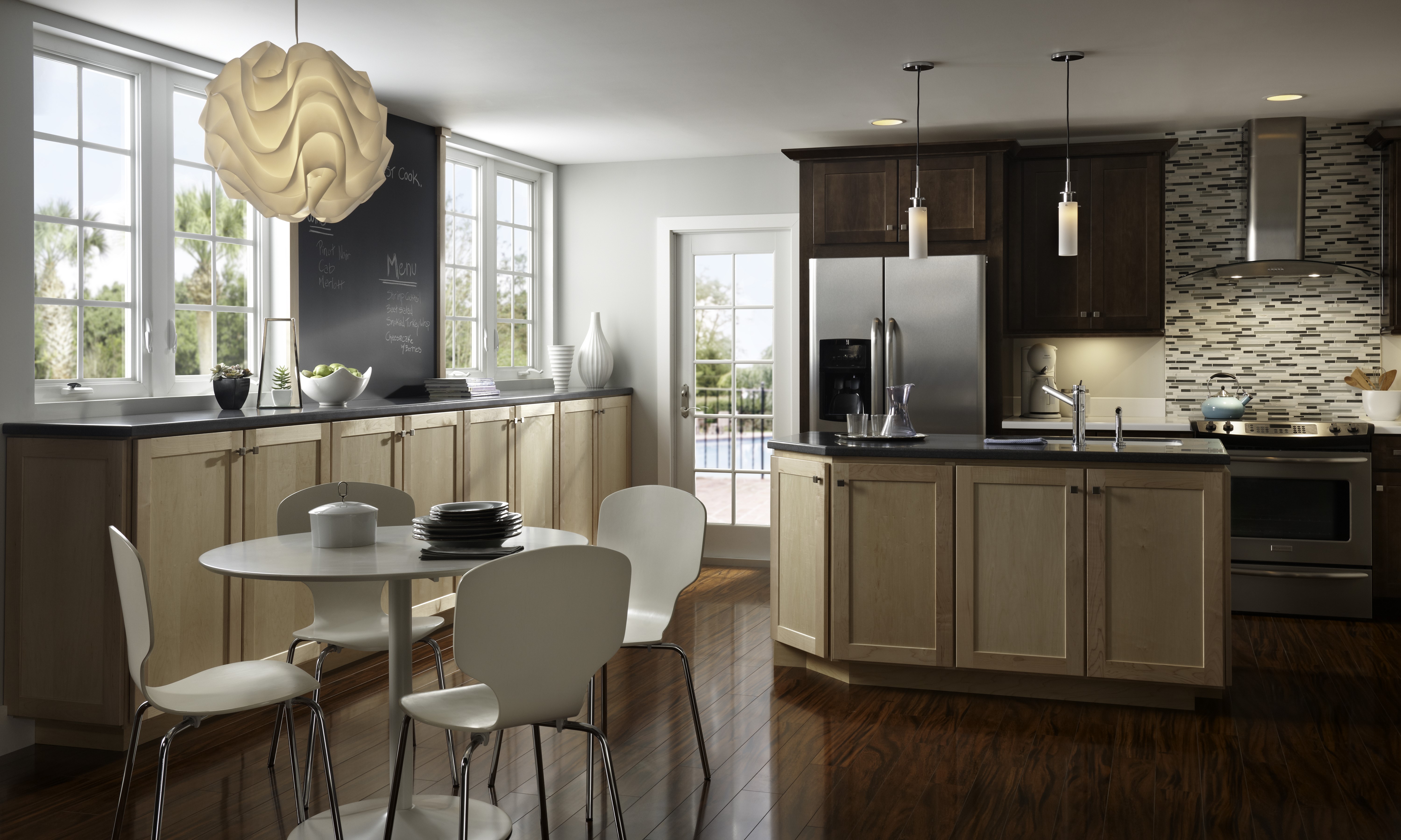

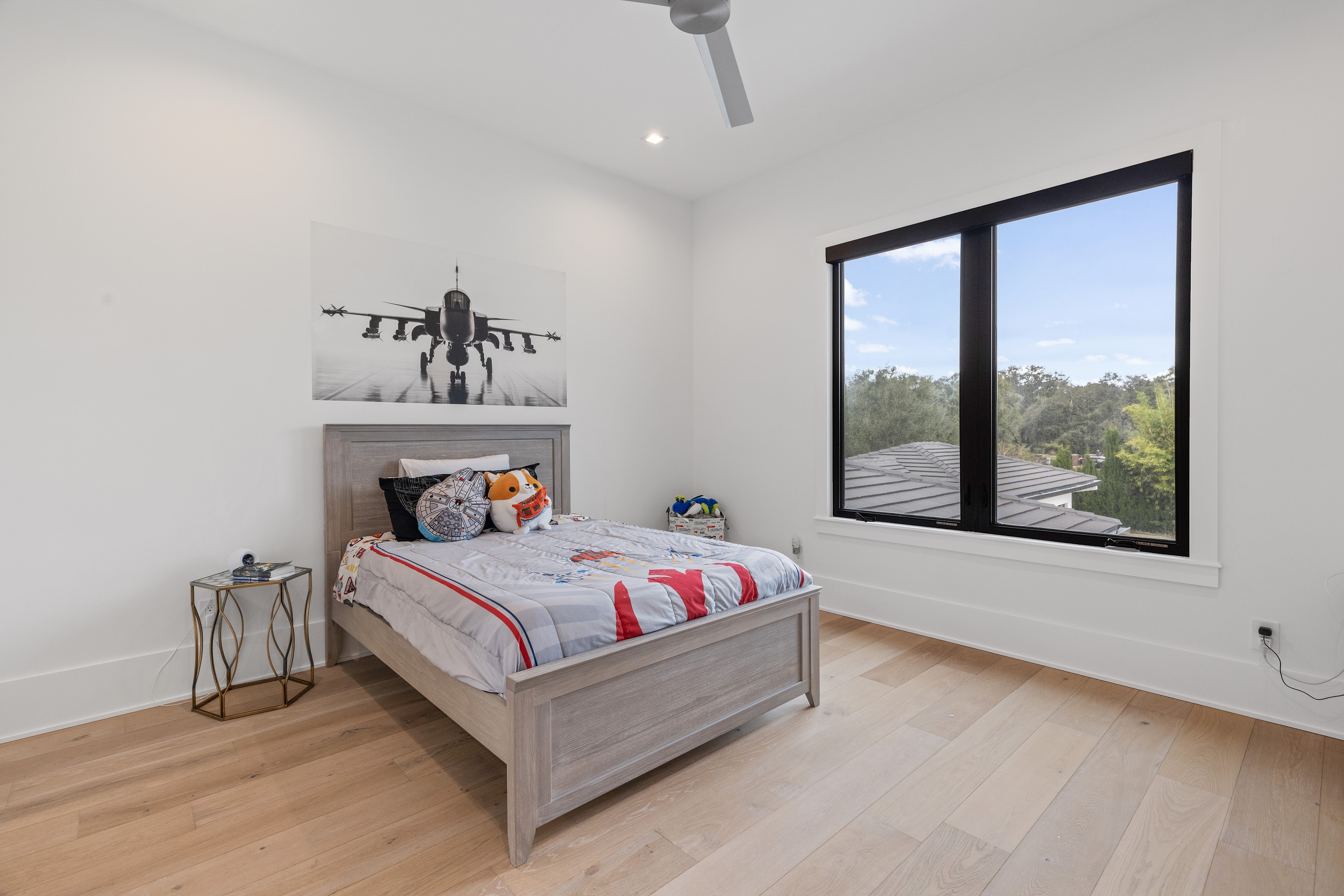

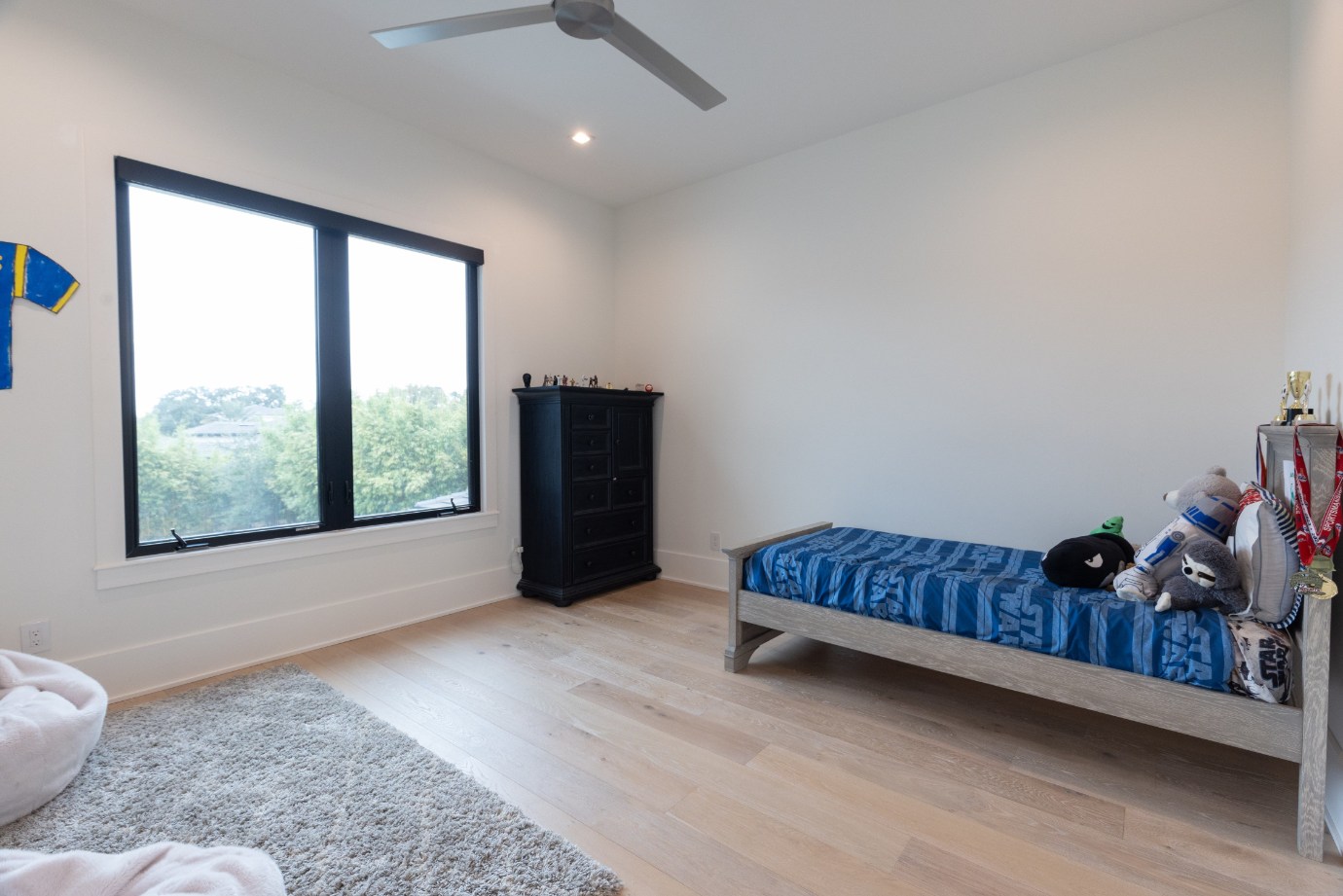

The CA640A is PGT's ClassicVue Max premium non-impact aluminum casement window, opening outward with a foldaway handle. Available in single, double, and triple sash configurations with multi-point locking and an optional wash-hinge for cleaning the exterior glass from inside the home. Pairs sightline-clean with the AW640A awning and PW640A picture.
- Tested & certified to Miami-Dade HVHZ hurricane standards
- Aluminum frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Styles
1" Raised/Flat Grid9/16" Flat Grid-Between-the-Glass
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
37 x 76 in or 33.5 x 84 in
Design Pressure
+90/-150 psf
U-Factor
0.71
SHGC
0.16–0.27
Visible Trans.
0.05–0.45
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| X | 18.5 x 17 in | 37 x 76 in or 33.5 x 84 in | +90/-150 psf |
| XX | 37 x 17 in | 74 x 63 in | +70/-90 psf |
| XOX 1/4-1/2-1/4 | 74 x 18 in | 120 x 63 in | +70/-90 psf |
| XOX 1/3-1/3-1/3 | 55.5 x 18 in | 111 x 63 in | +70/-90 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Bronze, Low-E, Air | 0.71 | 0.22 | 0.19 | 18 |
| Clear, Low-E, Air | 0.71 | 0.207 | 0.347 | 18 |
| Green, Low-E, Air | 0.71 | 0.26 | 0.39 | 18 |
| Gray, Low-E, Air | 0.71 | 0.22 | 0.12 | 18 |
Performance Certifications
- 23-0816.11 exp. 2028
- FL2766.R19
- FL243.R30
- FL245.R17
Options
Anchorage
Tested for 11 anchor conditions across block/masonry, metal, wood substrates. See the NOA & installation instructions for the full schedule.
Related Products
More models in the ClassicVue Max Aluminum.
PGT ClassicVue Max Aluminum Horizontal Roller HR7610A
Horizontal Roller
See price & specs
PGT ClassicVue Max Aluminum Casement Picture PW640A
Fixed Window
See price & specs
PGT ClassicVue Max Aluminum Picture PW7620A
Fixed Window
See price & specs
PGT ClassicVue Max Aluminum Preferred SGD SGD670A
Sliding Glass Door
See price & specs
Ready to install the PGT ClassicVue Max Aluminum Casement CA640A?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other casement models Armor Pro installs.
Frequently Asked Questions
The CA640A is PGT's ClassicVue Max premium non-impact aluminum casement window that opens outward using a foldaway crank handle, with multi-point locking for a tight seal. It comes in single, double, and triple sash configurations and offers an optional wash hinge so you can clean the exterior glass from inside the home. We install it on South Florida non-HVHZ projects where homeowners want a clean sightline and easy crank-open ventilation.
No, the CA640A is a non-impact aluminum casement, sold into Florida non-HVHZ counties where the code does not require impact glazing. It carries Miami-Dade NOA 23-0816.11 for its tested structural performance, but that is not an impact-glass rating. If your opening needs true hurricane impact protection, we'd steer you to PGT's WinGuard impact line instead and confirm the right product for your jurisdiction at quote.
The CA640A is offered as a single sash from about 18.5 by 17 inches up to 37 by 76 inches at +90/-150 psf, a two-sash unit up to 74 by 63 inches, and three-sash XOX units up to 120 by 63 inches, both rated +70/-90 psf. Design pressure depends on size and configuration, so wider multi-sash units carry a different rating than a tall single sash. We'll lay out the configuration that fits your opening and confirm the design pressure when we quote.
The CA640A offers Low-E glass packages with a U-factor of 0.71, a solar heat gain coefficient (SHGC) from 0.16 to 0.27, and visible transmittance from 0.05 to 0.45, with a condensation resistance of 18. You can pick clear, bronze, gray, or green-tinted Low-E glass to balance daylight against solar control. For South Florida sun we'll usually recommend a lower-SHGC package and walk you through how much light you want to keep.
The CA640A is available in PGT's standard aluminum finishes of White, Bronze, Black, and Clear Anodize, with custom colors offered, on a 2.75-inch frame. It uses a foldaway nesting handle as standard, and an optional wash hinge lets you reach the outside of the glass from inside. Grids are offered as a 1-inch raised or flat grid or a 9/16-inch flat grille between the glass, and we'll coordinate the look with any AW640A awnings or PW640A picture windows in the same wall.
There's no flat price because the installed cost depends on whether it's a single, double, or triple sash, the overall size, the glass package and grid you choose, the finish, and the substrate it anchors into, since the CA640A is tested for many anchor conditions across masonry, metal, and wood. The condition of the existing opening also matters. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the CA640A for your project.
No — ClassicVue Max is a non-impact aluminum line, so it can't be installed in the High-Velocity Hurricane Zone of Miami-Dade and Broward, and it doesn't carry the Miami-Dade NOAs the impact lines do. It's built for Florida counties outside the HVHZ where the code does not require laminated impact glazing. Any opening that needs storm certification calls for WinGuard Aluminum instead, which is the impact line above it in the catalog.
ClassicVue Max is the premium non-impact aluminum tier, built to a coastal standard rather than a builder-basic one. It carries the same EnergyShield, EnergyShield Max, and Solar Control Low-E glass packages and the same full four-color aluminum palette as the flagship WinGuard Aluminum line, plus a Limited Lifetime Warranty. The aluminum construction is engineered to resist salt, heat, and moisture. It's the choice for a non-HVHZ home that still wants premium glass and finishes.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
