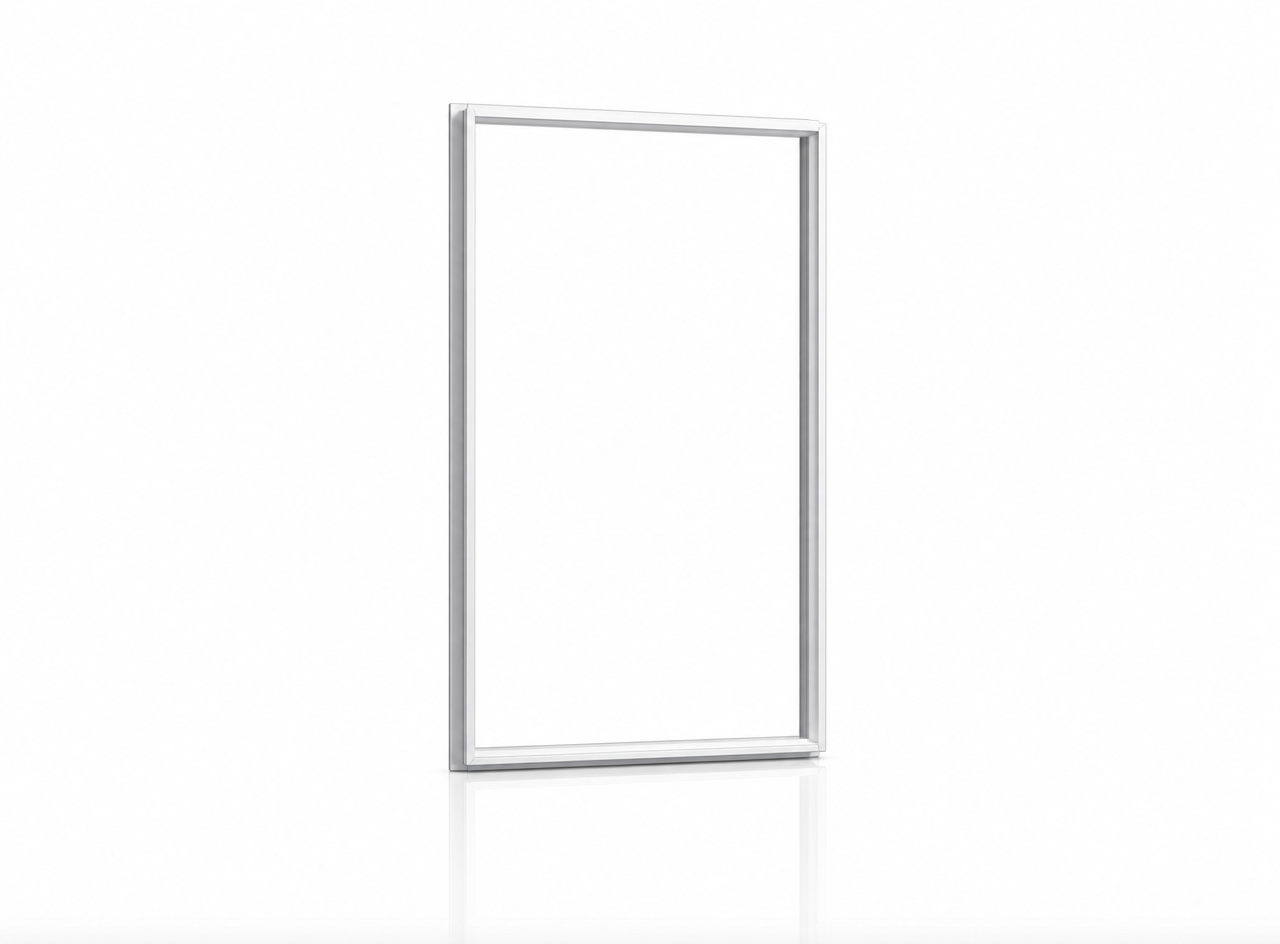

PGT Scout Aluminum Picture PW4020A
PGT's non-impact aluminum value-tier line for builder new-construction projects.
Value-tier non-impact aluminum fixed picture window with an integral nail-fin frame option for new-construction installations.
Design Pressure +50/-50 psf
NFRC Certified
Made in Florida
Frame finish
Built for South Florida homes
The PW4020A is PGT's Scout value-tier non-impact aluminum fixed picture window, with an integral nail-fin frame option for new-construction installations. Available with a 13/16 inch flat between-glass grid for decorative configurations.
- Aluminum frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Styles
1" Flat/Flat13/16" Grid Between the Glass
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
32 sq ft or 96 x 96 in
Design Pressure
+50/-50 psf
U-Factor
1.07–1.08
SHGC
0.3–0.77
Visible Trans.
0.1–0.82
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Picture Window | 9.375 x 9.375 in | 32 sq ft or 96 x 96 in | +50/-50 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.47 | 0.37 |
| Argon/Energy Shield | 0.42 | 0.37 |
| Energy Shield Max | 0.47 | 0.26 |
| Argon/Energy Shield Max | 0.41 | 0.26 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
Comparable from Other Brands
Other fixed window models Armor Pro installs.
Frequently Asked Questions
The PW4020A is PGT's Scout value-tier non-impact aluminum fixed picture window, built for builder new-construction projects on a slim 2-inch aluminum frame. As a fixed unit it doesn't open, so it's used where you want a clear, uninterrupted view and maximum daylight, often flanking operable windows or filling a large wall opening. We install it in South Florida non-HVHZ projects where impact glazing isn't required by code.
No, the PW4020A is a non-impact picture window. The Scout line is PGT's value tier for new-construction projects outside the High-Velocity Hurricane Zone, so it isn't rated for Miami-Dade or Broward HVHZ openings that require impact glazing. If you need a code-compliant impact picture window, the step up is PGT's Sparta PW4120A, which is LMI impact-rated for HVHZ; we'll confirm what your jurisdiction and opening require at quote.
The PW4020A runs up to a maximum panel of 48 inches wide by 96 inches tall and carries a design pressure of +50/-50 psf. That gives you a tall picture unit for a non-impact opening, though final design pressure always depends on the size and how the unit is anchored. We'll size the window and confirm the rating for your specific opening when we quote.
The PW4020A is offered with PGT's Energy Shield and Energy Shield Max Low-E glass, with U-factors from 0.41 to 0.49 and SHGC ratings from 0.24 to 0.37 depending on the package and whether you add grids; adding argon improves the U-factor further. All values are based on a 3/4-inch insulated glass unit. For South Florida sun, we typically recommend an Argon/Energy Shield Max package to keep heat gain low, and we'll walk you through the trade-offs at quote.
The PW4020A comes in two standard powder-coat finishes, White and Bronze. For a decorative look you can add grids, either a 1-inch flat grid or a 13/16-inch flat grille set between the glass for a maintenance-free finish. We coordinate the color and grid with the rest of your Scout windows so the look stays consistent across the home.
There's no flat price, because the installed cost depends on the size of the window, the glass package and grid you choose, the frame finish, and the condition of the opening it goes into. Since the PW4020A also offers an integral nail-fin frame for new construction, how it ties into the wall affects labor too. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the PW4020A for your project.
No — Scout is PGT's non-impact aluminum value line, so it can't be installed in the High-Velocity Hurricane Zone and doesn't carry impact certification. It's a builder-grade window built for new-construction homes outside the HVHZ where the code does not require impact glazing. If your address falls inside Miami-Dade or Broward, or you want storm protection regardless of jurisdiction, the answer is the impact-rated WinGuard line, not Scout.
Scout is deliberately narrow — four window styles only: single hung, horizontal roller, fixed picture, and architectural shapes, in white or bronze. There's no casement, awning, or sliding door in the Scout line, so a Scout-spec house pulls those openings from a different line. We treat it as a spec-and-builder option: pick the operation style and a standard finish, and it goes in.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
