Scout Aluminum
Design Pressure +50/-50 psf
NFRC Certified
Made in Florida
PGT Scout Aluminum Horizontal Roller HR4010A
PGT's non-impact aluminum value-tier line for builder new-construction projects.
Value-tier non-impact aluminum horizontal roller in 2-lite and 3-lite configurations on a 2-inch frame. Adjustable brass rollers.
Design Pressure +50/-50 psf
NFRC Certified
Made in Florida
Frame finish
Built for South Florida homes

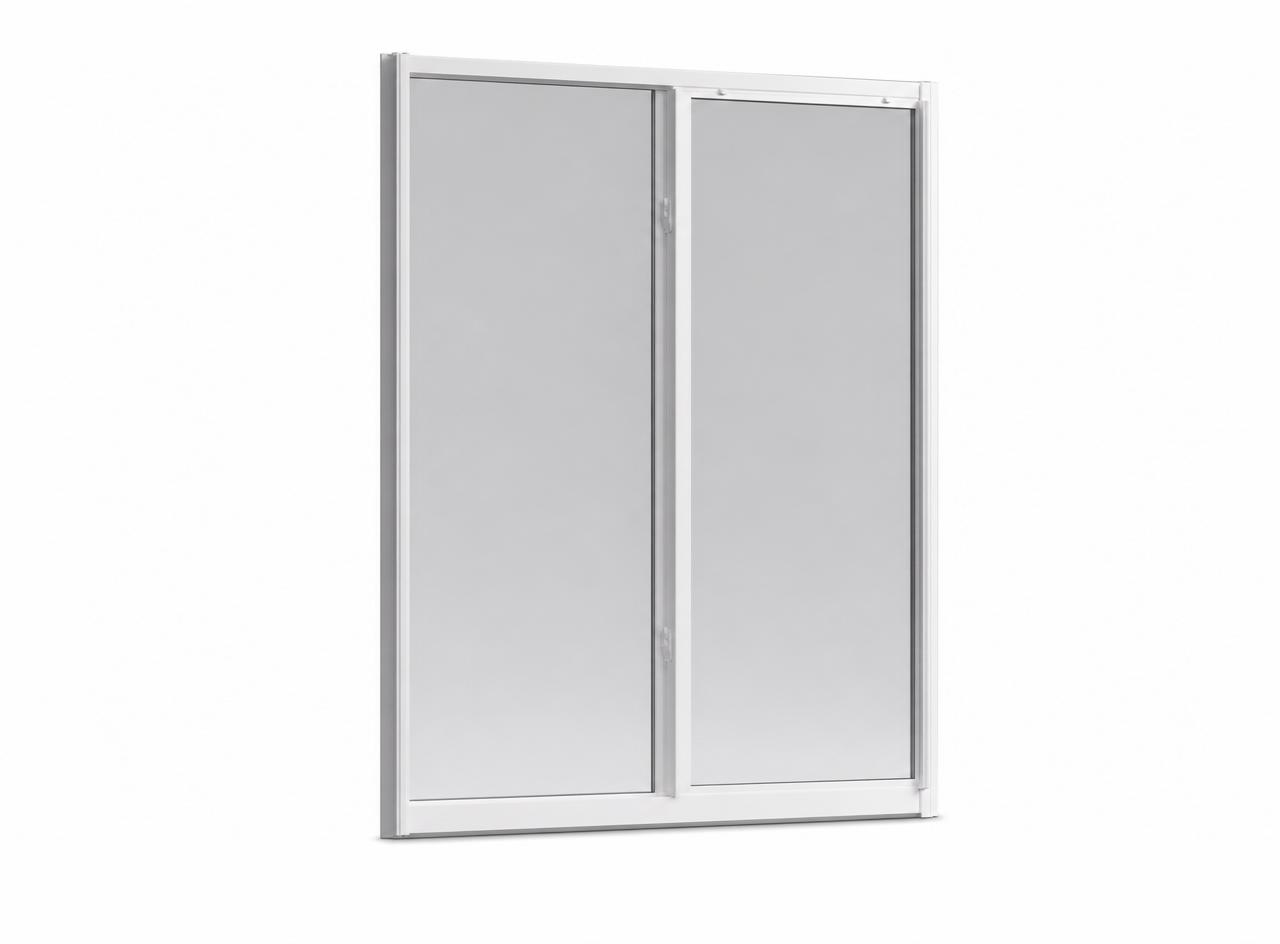

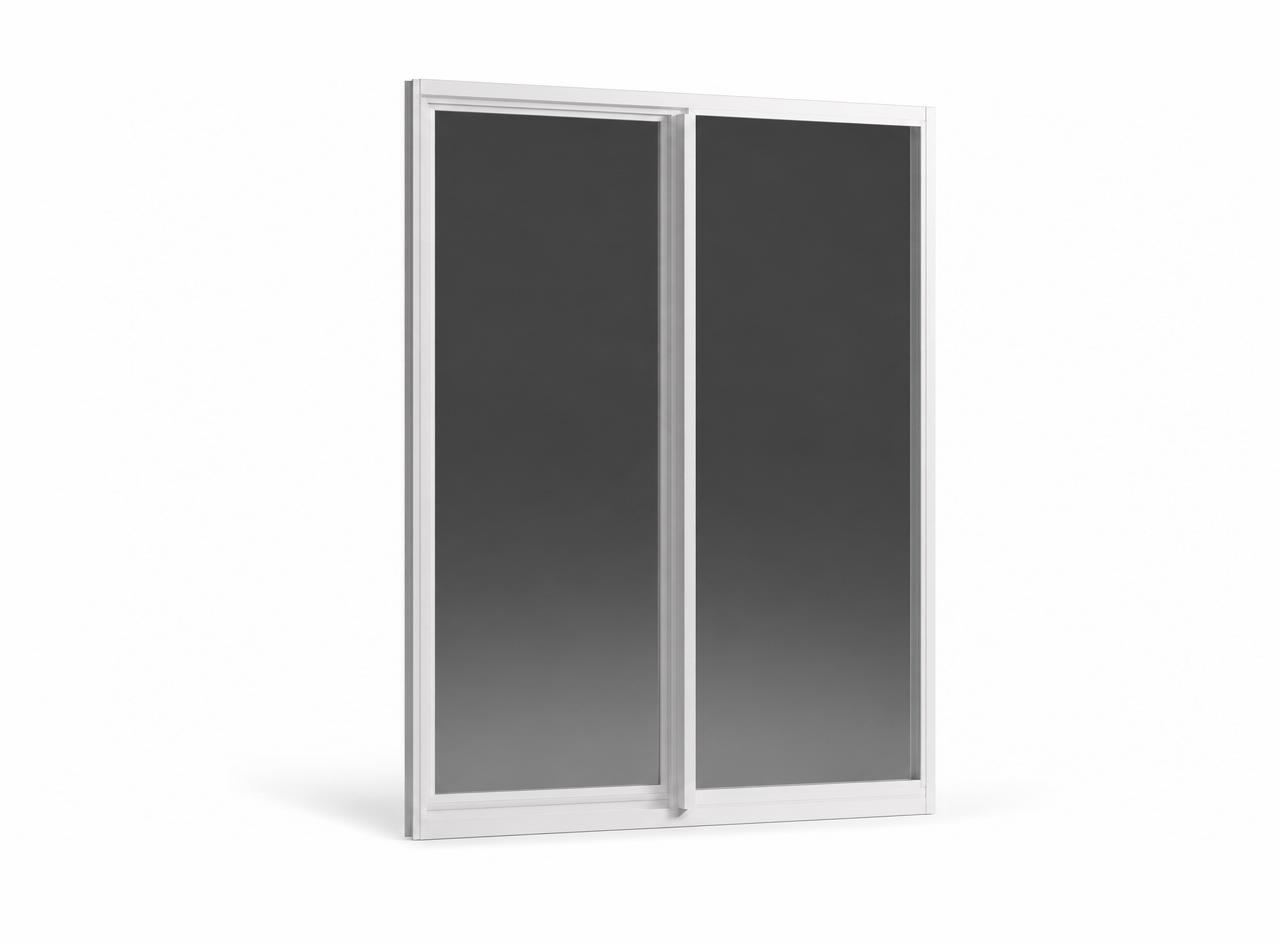

The HR4010A is PGT's Scout value-tier non-impact aluminum horizontal roller window, available in 2-lite and 3-lite configurations on a nominal 2-inch frame depth. Adjustable brass rollers on a heavy-duty extruded aluminum frame.
- Aluminum frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Styles
1" Flat/Flat13/16" Grid Between the Glass
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
74 x 72 in
Design Pressure
+50/-50 psf
U-Factor
1.12
SHGC
0.29–0.7
Visible Trans.
0.14–0.72
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| XO/OX Equal | 19.75 x 16 in | 74 x 72 in | +50/-50 psf |
| XOX 1/4-1/2-1/4 | 37.375 x 16 in | 120 x 63 in | +50/-50 psf |
| XOX 1/3-1/3-1/3 | 30 x 16 in | 90 x 63 in | +50/-50 psf |
Sizes shown are actual DLO frame size.
1/2" flange frame.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.64 | 0.28 |
| Argon/Energy Shield | 0.58 | 0.27 |
| Energy Shield Max | 0.63 | 0.24 |
| Argon/Energy Shield Max | 0.58 | 0.24 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
Options
Related Products
More models in the Scout Aluminum.
Ready to install the PGT Scout Aluminum Horizontal Roller HR4010A?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other horizontal roller models Armor Pro installs.
Eastern Architectural Systems
EAS 176 Bertha Horizontal Roller Impact Vinyl
See price & specs
ES Windows
ES Windows Prestige ES-P300 Sliding (TB Retrofit)
See price & specs
ECO Window Systems
Eco-Guard Horizontal Rolling Series 200
See price & specs
Eurocraft
Eurocraft EC-300 Horizontal Slider Window
See price & specs
Frequently Asked Questions
The HR4010A is PGT's Scout value-tier non-impact aluminum horizontal roller window, where the sash slides side to side rather than lifting up. It comes in 2-lite and 3-lite configurations on a heavy-duty extruded aluminum frame about 2 inches deep, riding on adjustable brass rollers. Armor Pro installs the HR4010A on new-construction residential projects outside the HVHZ where a builder wants a smooth-sliding, value-priced window.
No, the HR4010A is a non-impact horizontal roller, and the whole Scout Aluminum line is non-impact, so it is not approved for the High-Velocity Hurricane Zone in Miami-Dade or Broward. It's built for new-construction projects in non-HVHZ jurisdictions where impact glazing isn't required by code. If your opening needs real hurricane impact protection, we'd point you to one of PGT's impact lines such as WinGuard and confirm the right product for your area at quote.
The HR4010A is offered as a 2-lite XO/OX from about 19.75 by 16 inches up to 74 by 72 inches, and as 3-lite XOX units in a 1/4-1/2-1/4 layout up to 120 by 63 inches or a 1/3-1/3-1/3 layout up to 90 by 63 inches. Every configuration carries a 50 psf positive / 50 psf negative design pressure. We'll match the 2-lite or 3-lite layout to your opening and confirm the design pressure fits your non-HVHZ code when we quote.
The HR4010A offers Energy Shield and Energy Shield Max Low-E glass on a 1/2-inch insulated glass unit, with U-factors from 0.58 to 0.67 and SHGC from 0.22 to 0.28 depending on package and grids. Argon-filled versions reach the lower 0.58-0.61 U-factor end, and Energy Shield Max packages bring SHGC down to about 0.22-0.24 for stronger solar control. For South Florida sun we'll usually recommend an argon Energy Shield Max buildup to limit heat gain.
The HR4010A is available in two standard finishes, White and Bronze, consistent with the value-tier Scout line. It rides on adjustable brass rollers and comes with a traditional sweep lock as standard, with a jamb lock offered as an option. Grids are available as a 1-inch flat/flat or a 13/16-inch grid between the glass, and we'll match the look to the other Scout windows in the home.
There's no flat price because installed cost depends on whether it's a 2-lite or 3-lite unit, the overall size up to 120 inches wide, the glass package and grids, the White or Bronze finish, the lock hardware you choose, and the condition of the opening. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the HR4010A for your new-construction project.
No — Scout is PGT's non-impact aluminum value line, so it can't be installed in the High-Velocity Hurricane Zone and doesn't carry impact certification. It's a builder-grade window built for new-construction homes outside the HVHZ where the code does not require impact glazing. If your address falls inside Miami-Dade or Broward, or you want storm protection regardless of jurisdiction, the answer is the impact-rated WinGuard line, not Scout.
Scout is deliberately narrow — four window styles only: single hung, horizontal roller, fixed picture, and architectural shapes, in white or bronze. There's no casement, awning, or sliding door in the Scout line, so a Scout-spec house pulls those openings from a different line. We treat it as a spec-and-builder option: pick the operation style and a standard finish, and it goes in.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
