Elite uPVC Series
Design Pressure +60/-60 psf
NFRC Certified

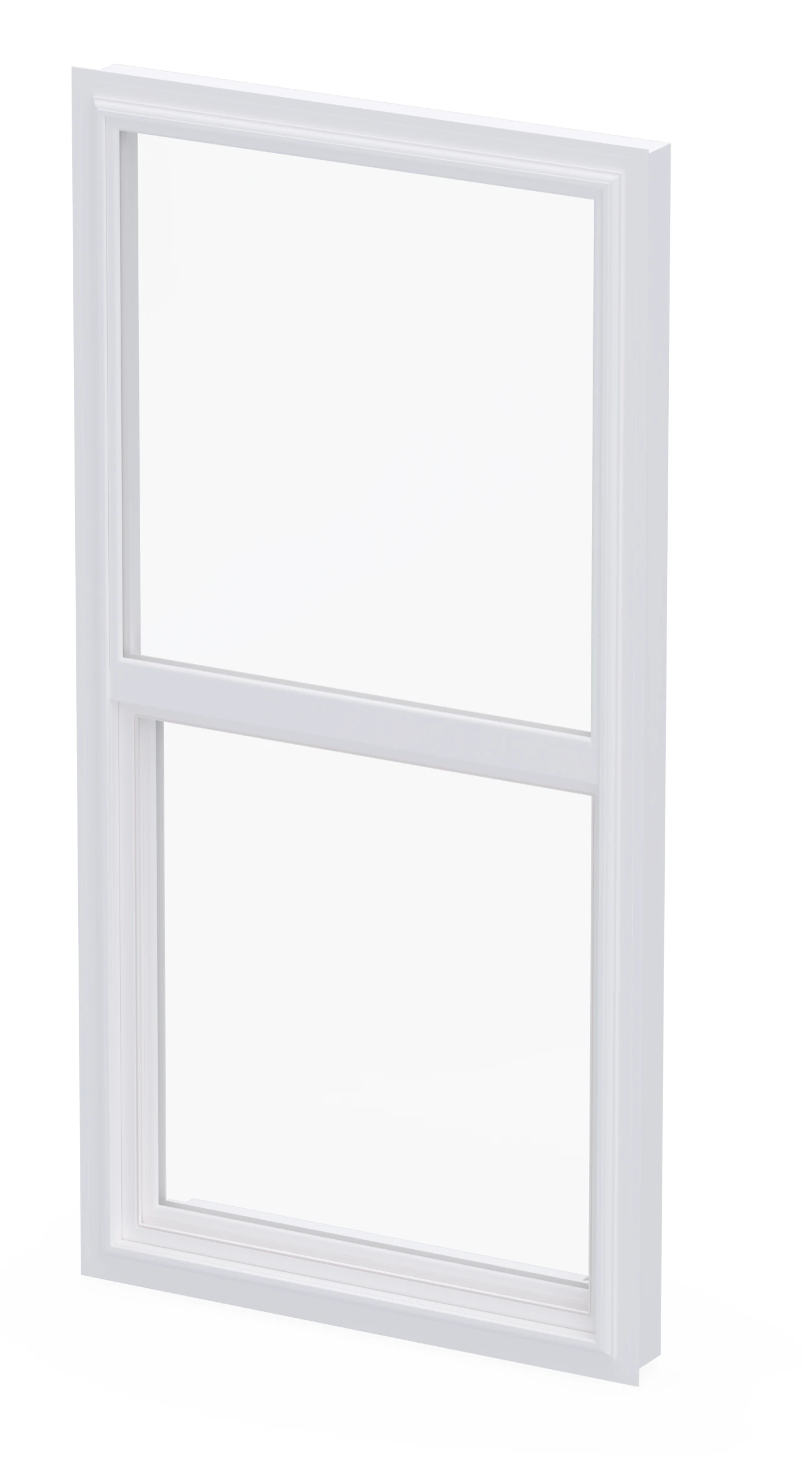

ES Windows ES-V100 uPVC Single-Hung Window
ES Windows Elite uPVC line — thermally efficient, aluminum-reinforced vinyl windows and a sliding glass door (single hung, fixed, horizontal roller, casement, awning, and SGD) for residential FBC projects.
Elite uPVC thermally efficient single-hung window with aluminum-reinforced profiles, FBC compliance, and excellent airtightness.
Design Pressure +60/-60 psf
NFRC Certified
Built for South Florida homes
The ES-V100 is an Elite-line, thermally efficient uPVC single-hung (guillotine) window with a high-performance, reinforced vertical operating sash. It is FBC-compliant and offers excellent airtightness with low air infiltration, accepting 7/16" laminated and 1" insulating or insulating-laminated glass. Frame depth is 3-1/4" with a 2-3/16" sight line on the fixed lite and 3" on the operable lite. Available in flush, flange, and fin frame options, pre-assembled and pre-glazed, in a white finish, with an optional opening-control device.
- uPVC frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
uPVC
Max Size
53 x 76 in
Design Pressure
+60/-60 psf
U-Factor
0.82–1.08
SHGC
0.24–0.6
Visible Trans.
0.19–0.68
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Single hung | 53 x 76 in | +60/-60 psf |
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Blue | 1.08 | 0.445 | 0.56 | 14 |
| Bronze | 1.027 | 0.417 | 0.428 | 14 |
| Clear | 0.982 | 0.474 | 0.606 | 14 |
| Green | 0.984 | 0.456 | 0.592 | 14 |
| Gray | 0.98 | 0.4 | 0.333 | 14 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
Options
Related Products
More models in the Elite uPVC Series.
Ready to install the ES Windows ES-V100 uPVC Single-Hung Window?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other single hung models Armor Pro installs.
Frequently Asked Questions
The ES-V100 is an Elite uPVC, thermally efficient single-hung (guillotine) window with a reinforced vertical operating sash, so it opens by sliding the bottom lite upward. Its aluminum-reinforced vinyl frame delivers excellent airtightness and low air infiltration, which makes it a strong choice for bedrooms, living areas, and other standard residential openings where thermal performance matters. We install it on FBC residential projects where a homeowner wants a vinyl single hung with good energy numbers.
No. The ES-V100 is a non-impact (NI) window and is not HVHZ-approved, so it is not the right choice for the High Velocity Hurricane Zone that covers Miami-Dade and Broward counties. If you need an impact-rated, HVHZ-approved single hung, we'll steer you toward one of ES Windows's impact lines instead and confirm the correct approval for your address when we quote.
The ES-V100 single-hung configuration is available up to a maximum of 53 by 76 inches and carries a design pressure of +60/-60 psf. The frame depth is 3-1/4 inches, with a 2-3/16-inch sight line on the fixed lite and 3 inches on the operable lite. We'll verify the size and DP work for your opening and wind zone before ordering.
The ES-V100 accepts 7/16-inch laminated and 1-inch insulating or insulating-laminated glass, with U-factors around 0.81 to 0.84 across the laminated builds. For solar control you can range from a clear laminated package at SHGC 0.58 down to an SB70 low-E build at SHGC 0.27 and a gray-on-gray package at SHGC 0.37, so you can tune heat gain to each room's exposure. We'll help you match the glass to your elevations when we prepare the estimate.
The ES-V100 comes in a standard white finish, and it's offered in flush, flange, and fin frame types so we can match the install detail to your wall and rough opening. The window is aluminum-reinforced uPVC and ships pre-assembled and pre-glazed, and an optional opening-control device is available. We'll recommend the frame style and any options that suit your home during the consultation.
We don't quote a flat price because the installed cost of an ES-V100 depends on the window size, the glass package you choose, the frame type, and the condition of the existing opening. Because this is a non-impact window, the appropriate application and any code requirements for your location also factor in. Armor Pro provides a free, in-person estimate so you get an accurate number for your specific project.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
ES Windows is the fenestration brand; Tecnoglass Inc. is the publicly traded parent that owns it and consolidates the glass-making, aluminum-extrusion (Alutions), and window-assembly operations under one roof. For a homeowner the practical takeaway is that a large, publicly accountable manufacturer stands behind the warranty and the product. As your installer, we handle the order, the permit, and the installation regardless of the corporate structure.
A hung window opens vertically with a sash that slides up and down. On a single-hung only the bottom sash moves; on a double-hung both the top and bottom sashes tilt and slide, which makes cleaning easier from inside. They are the most common replacement window in Florida homes because they fit traditional openings and seal tightly against wind-driven rain.
