WinDoor BF1199A Bi-Fold Door

Aluminum bi-fold door opening through accordion-style panels that fold and stack to one side. LMI for HVHZ installations across South Florida.

Impact Rating LMI Florida Made in Florida
WinDoor BF1199A Bi-Fold Door
Frame finish
Glass

Impact protection, built for South Florida

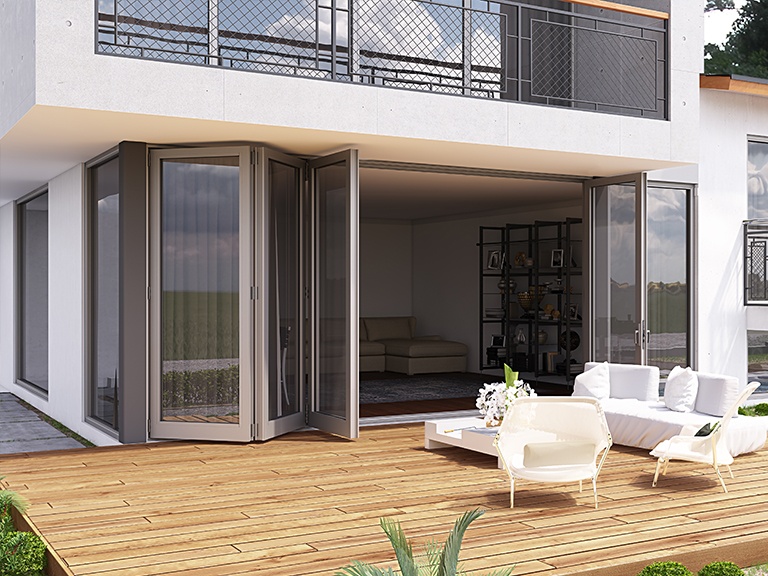

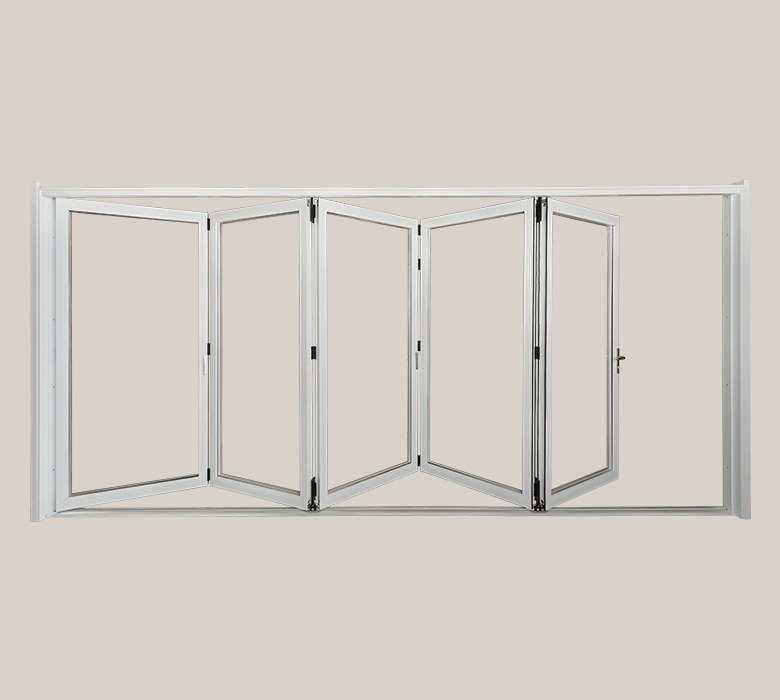

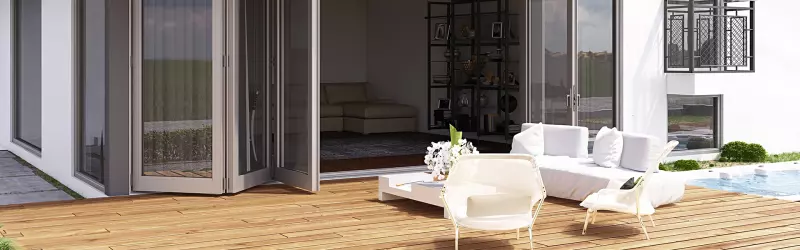

The BF1199A is WinDoor's bi-fold door, accordion-style panels that fold and stack to one side to open a wall completely rather than leaving half of it as fixed glass. It is aluminum, LMI impact-rated for the HVHZ, and built to the same luxury standard as the rest of the WinDoor catalog. Where the flagship 8100 slider gives the largest single panels, the bi-fold gives the widest clear opening, since nothing stays in the frame when it is open.

Armor Pro specs the BF1199A on entertaining and indoor-outdoor openings where the goal is to make the wall disappear, a pool deck, a great room, a summer kitchen. The choice between the bi-fold and the 8100 slider comes down to whether the opening should stack to the side or slide and pocket; both are luxury-tier WinDoor doors. The BF1199A is the full-wall folding option in the line.

  • Aluminum frame engineered for strength and durability
  • Large-missile impact-rated laminated glass
  • Energy-efficient Low-E insulated glass options to control heat gain
  • Corrosion-resistant finishes for coastal applications
  • Professionally installed across South Florida by Armor Pro
Configurations X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Bifold panel (per-panel max)
Grille Patterns
Colonial
Prairie
Ladder
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship

At a Glance

Frame Material Aluminum
Max Size 48 x 105 in or 35 x 144 in (per panel)
U-Factor 0.77
SHGC 0.16–0.5
Visible Trans. 0.02–0.52
Impact Rating LMI

Sizes & Pressures

Configuration Max size
Bifold panel (per-panel max) 48 x 105 in
or 35 x 144 in (per panel)

Up to 14 panels; bottom-mounted roller system; narrow single track; OR-alternate panel size.

OR-alternate panel size (narrower/taller variant).

Glass & Energy Performance

Glass packageU-FactorSHGC VT CR
Blue, Air0.770.37 0.41 37
Bronze, Air0.770.3 0.175 37
Clear, Air0.770.5 0.52 37
Green, Air0.770.34 0.435 37
Gray, Air0.770.25 0.1 37

U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.

Performance Certifications

NFRC Certified energy ratings

Options

Glass tint
Clear (standard)BronzeGrayGreenAzure BlueSolarcool GrayGraylite IILaminated Glass (standard)Laminated Insulating GlassHigh performance Low-EObscure (Privacy)Rain (Privacy)White Interlayer (Privacy)
Handle style
Handle Set (standard)
Hardware
Satin Nickel (standard)WhiteBronzeBlack

Ready to install the WinDoor BF1199A Bi-Fold Door?

Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.

Get a Free Estimate or call (954) 231-7164

Comparable from Other Brands

Other bi fold door models Armor Pro installs.

Eco-Guard Bi-Fold Door Series 900
ECO Window Systems
Eco-Guard Bi-Fold Door Series 900
See price & specs
Air Master Multi-Folding (Bi-Fold) Door
Air Master
Air Master Multi-Folding (Bi-Fold) Door
See price & specs
Pella Bifold Patio Doors
Pella
Pella Bifold Patio Doors
See price & specs
ES Windows Prestige ES-BF5010T Bi-fold Door (TB)
ES Windows
ES Windows Prestige ES-BF5010T Bi-fold Door (TB)
See price & specs
From the blog

Related reading

Best Impact Window Manufacturers in Florida Best Impact Window Manufacturers in Florida Six manufacturers dominate the Florida impact window market. Here's how they compare on price, product range, HVHZ certification, lead times, and what we see after thousands of installations. Read more
Hurricane Impact Sliding Glass Doors Hurricane Impact Sliding Glass Doors Impact sliding glass doors are the largest, most complex, and most expensive opening in most Florida homes. Here's everything you need to know about sizes, track systems, design pressures, pricing, and manufacturers. Read more
Impact Windows for Lanais: Hurricane Protection Options Impact Windows for Lanais: Hurricane Protection Options Florida lanais are screened enclosures that provide zero hurricane protection. During a storm, the screen tears away and the aluminum frame becomes airborne debris. Here are five ways to protect your lanai and the doors behind it. Read more
Plywood, Hurricane Shutters, or Impact Windows: How Florida Homeowners Actually Protect Their Glass Plywood, Hurricane Shutters, or Impact Windows: How Florida Homeowners Actually Protect Their Glass An honest impact windows vs hurricane shutters vs plywood comparison from a South Florida installer: real costs, deployment time, insurance credits, and which option fits your house. Read more

Frequently Asked Questions

The BF1199A opens through accordion-style panels that fold and stack to one side, so the whole wall opens up instead of leaving half of it as fixed glass. Where the 8100 slider gives the largest single panels, the bi-fold gives the widest clear opening because nothing stays in the frame when it's open. We install it on indoor-outdoor openings like pool decks, great rooms, and summer kitchens.

Yes. The BF1199A carries an LMI (Large Missile Impact) rating and is approved for High-Velocity Hurricane Zone installations across South Florida. It's built with laminated impact glass and laminated insulating impact glass, and is rated to 65 psf positive and -70 psf design pressure. We'll confirm the certified rating for your opening at the quote.

Each bi-fold panel runs up to 48 inches wide and 105 inches tall, and panels link together so the total opening width is built from multiple folding panels. The frame is 5 inches deep to carry the folding hardware. We'll lay out the panel count to span your opening and stack neatly to the side.

The BF1199A uses insulating laminated impact glass with a U-factor of 0.77 and a condensation resistance of 37. SHGC ranges from about 0.16 with Solargray up to 0.50 with Clear, so you can control solar heat gain while keeping the view. We'll recommend a tint that fits your sun exposure and energy goals.

Standard finishes include Bone White, Bermuda Bronze, Clear Anodize, Black, Southbeach Silver, Velvet Gray, Patio White, and Southern Bronze, with woodgrain options like Hazelnut Brown, Mahogany Red, and Walnut Brown. Two-tone combinations and custom colors are available, and hardware comes in Satin Nickel, White, Bronze, or Black. We'll match the finish to your home inside and out.

The choice comes down to whether the opening should stack to the side (bi-fold) or slide and pocket (the 8100); both are luxury-tier WinDoor doors that make the wall disappear. Installed price depends on the opening width, panel count, glass package, and finish, so a wide full-wall bi-fold sits at the premium end. Armor Pro gives a free estimate sized to your exact opening.

Yes. WinDoor's active aluminum impact line carries Florida Product Approval and is rated for the High-Velocity Hurricane Zone (Miami-Dade and Broward counties), with large-missile impact glass throughout. The exact design pressures depend on the specific product, panel size, and configuration, so we confirm the right rating for each opening on the quote. We pull the permit and submit the approval documents as part of every installation.

We install WinDoor's full luxury aluminum range: the 8100 sliding glass door, BF1199A bi-fold and PV9998A pivot doors, the 9050 thermally broken terrace door, FD9950A French doors, and the GD9995A impact garage door, plus the 9020 picture window, the GW9994G Envista bay window, and the Pass-Through Awning. We also service older WinDoor product still in Florida estates built since 2001, even on series the brand no longer sells. If you're comparing door and window types, our Window and Door Designer and Visualizer lets you see how each looks on your home.

A folding door is made of multiple panels hinged together that fold and stack to the side, opening a wall almost completely to a patio or lanai. It creates a seamless indoor-outdoor connection that a standard slider cannot, and the impact version is laminated and HVHZ-tested for hurricane protection.
