Eco-Guard Bi-Fold & Pivot Door Series
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +60/-60 psf
Glazing 7/16" NOM. LAMI. GLASS
Made in Florida
Eco-Guard Bi-Fold Door Series 900
Multi-panel folding and pivot impact doors — a specialty lane in ECO's catalog.
Miami-Dade approved aluminum impact bi-fold, up to 10 panels and 240-3/4 x 108 in. overall, +60/-60 psf, LMI, 3-point active + 2-point per folding leaf.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +60/-60 psf
Glazing 7/16" NOM. LAMI. GLASS
Made in Florida
Impact protection, built for South Florida
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
240.75 x 108 in (per panel)
Design Pressure
+60/-60 psf
Impact Rating
LMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Outfolding Bi-Fold (6/9/10 panel) | 240.75 x 108 in (per panel) | +60/-60 psf |
Performance Certifications
- FL25674.R8
- FL23990.R2
- FL25674
Options
Related Products
More models in the Eco-Guard Bi-Fold & Pivot Door Series.
Ready to install the Eco-Guard Bi-Fold Door Series 900?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other bi fold door models Armor Pro installs.
Frequently Asked Questions
The Series 900 (BF-900) is ECO Window Systems' aluminum impact bi-fold door, an outfolding multi-panel door that folds up to 10 panels across a single opening to open a whole wall to the outside. We reach for it on indoor-outdoor living openings, like a patio or lanai wall, where a standard slider or hinged door won't give you the same full-width opening. It's a specialty door in ECO's catalog, offered in 6-, 9-, and 10-panel layouts.
Yes. The Series 900 is a Large Missile Impact (LMI) rated, Miami-Dade-approved aluminum bi-fold door, so it's a true HVHZ-rated impact unit. It carries Florida Product Approval FL25674, with the current revision listed as FL25674.R8. We confirm the exact approval and rating for your jurisdiction at quote so the door is permitted correctly.
The BF-900 spans up to 240-3/4 inches wide by 108 inches tall overall, which is roughly a 20-foot opening, folding across 6, 9, or 10 panels. It is rated to a design pressure of +60/-60 psf, the wind load it's built to resist. We measure your opening and confirm the panel count, size, and design pressure your project needs before ordering.
The standard glazing is Glass Type A, a 7/16 inch laminated impact lite with a .090 inch Trosifol PVB interlayer by Kuraray. For better energy performance you can upgrade to Glass Type Ai, a 1 inch insulated laminated unit that adds a 3/8 inch air space. We'll help you decide between the standard laminated and the insulated package based on the room and your goals.
The BF-900 comes standard with the E902 bottom track, which is water-resistance rated, and there's also a low-profile E903 track if you want a flatter threshold, though the E903 is not water-rated. Hinges can be mounted on the exterior or interior, and each folding leaf locks with a multipoint setup. We'll walk you through whether the water-rated standard track or the low-profile option is right for your opening.
We don't quote a flat price because installed cost depends on the opening width, the panel count, the glass package, and the condition of the opening, and a folding wall up to about 20 feet is a larger project than a single door. As a specialty multi-panel impact door, it's also typically a special-order item with a longer lead time. Armor Pro provides a free, no-obligation estimate after measuring your opening.

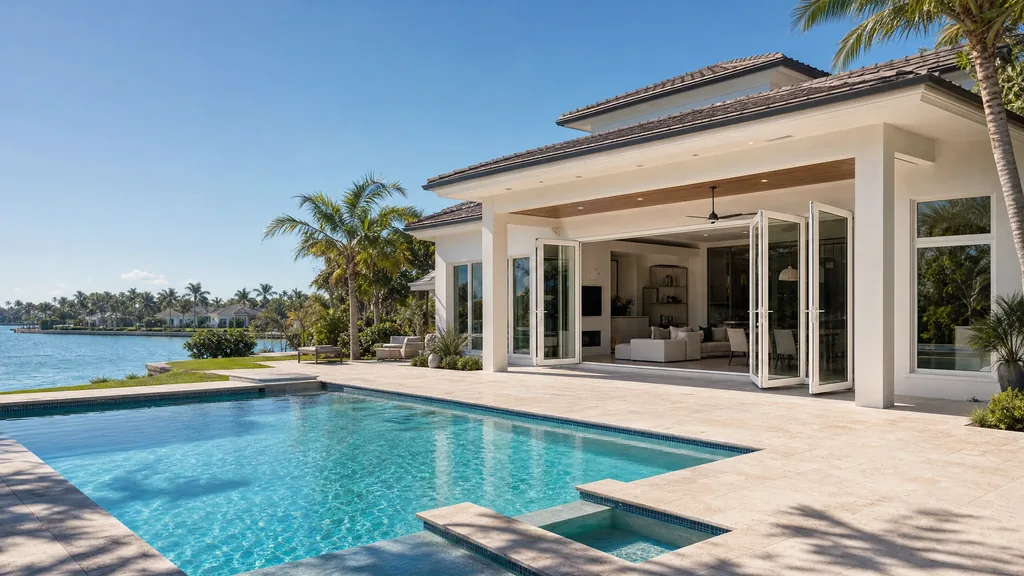

A bi-fold door is a row of panels hinged together that fold and stack to one or both sides, opening up most of the wall — the indoor-outdoor effect people want on a lanai or pool deck. ECO's Series 900 bi-fold folds up to 10 panels across an opening as wide as about 240 inches. One panel typically acts as a day-to-day swing door so you don't have to fold the whole stack to step outside.
A pivot door rotates on a pivot hinge set into the top and bottom of the frame rather than swinging on side hinges, which allows a large, dramatic single panel — a statement entry. ECO's Series 1500 pivot can be configured outswing or inswing and reaches up to 60 by 144 inches with a transom, with matching sidelites available. It's the choice for a high-impact front entrance where a standard hinged door feels too small.
Yes. ECO's residential aluminum impact lines carry Miami-Dade Notices of Acceptance and Florida Product Approvals, which makes them eligible to install in the High-Velocity Hurricane Zone (Miami-Dade and Broward counties). The exact wind ratings depend on the specific series, size, and configuration, so we confirm the right product for your opening on the quote. We pull the permit and submit the approval documents as part of every job.
