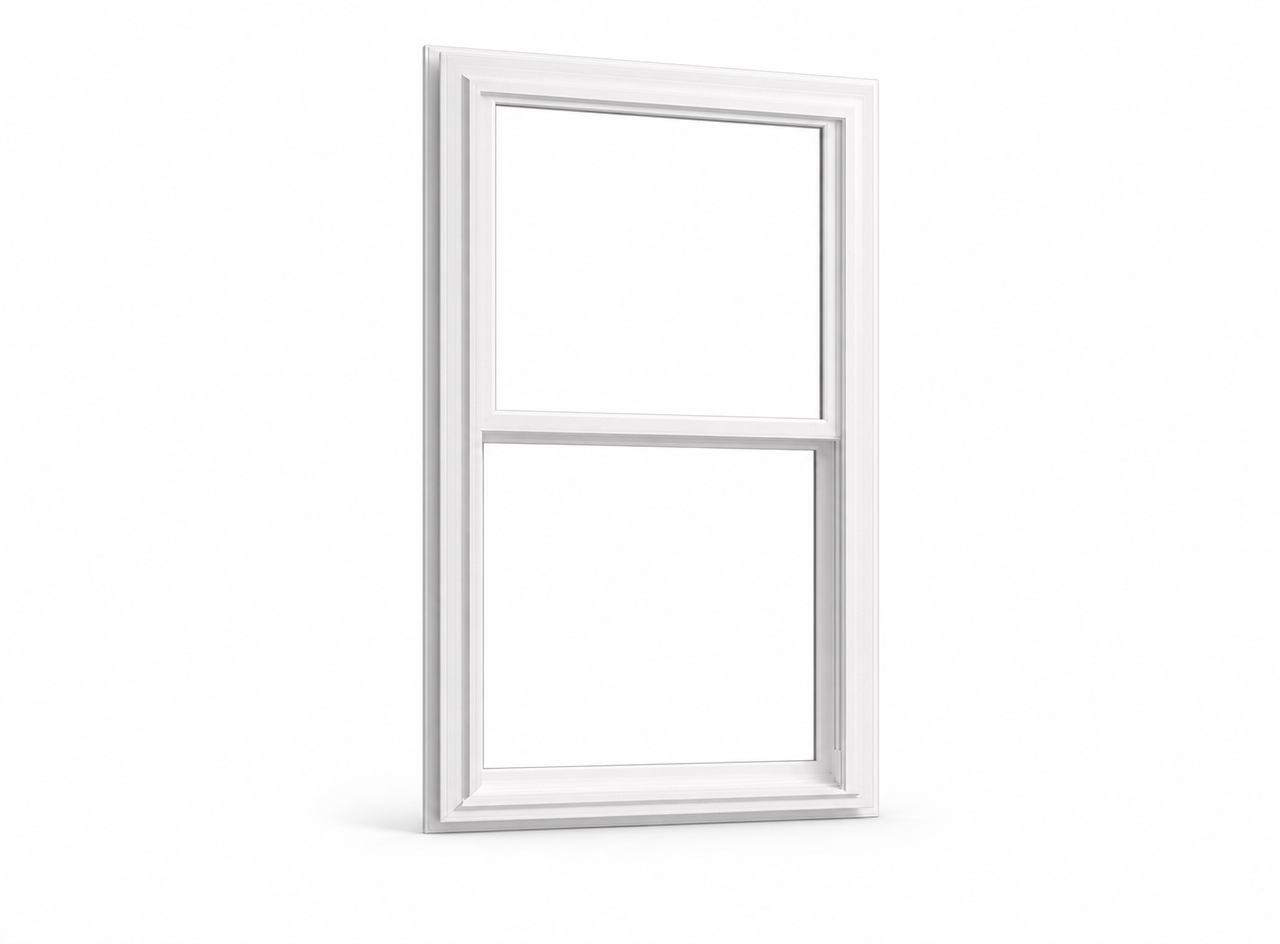

PGT WinGuard Vinyl Double Hung DH5560
PGT's vinyl impact window family, the best-selling impact vinyl in the U.S.
Vinyl impact double-hung with both sashes operable and removable for cleaning. Spiral balance system on larger sizes, ComfortLift handles.
Miami-Dade NOA
Florida DBPR
Approved
HVHZ
Approved
Impact Rating LMI
Design Pressure +65/-70 psf
NFRC Certified
Made in Florida
Frame finish
Impact protection, built for South Florida
The DH5560 is the WinGuard Vinyl double-hung window, with both upper and lower sashes operable and removable for cleaning. Spiral balance systems support larger sash sizes and ComfortLift handles ease operation. LMI impact-rated for HVHZ installations.
- Tested & certified to Miami-Dade HVHZ hurricane standards
- Vinyl frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Patterns
Grille Styles
9/16" Flat Grid-Between-the-Glass13/16" Flat Grid-Between-the-Glass1" Contour Grid-Between-the-Glass
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Vinyl
Max Size
54 x 84 in
Design Pressure
+65/-70 psf
U-Factor
0.32
SHGC
0.18–0.28
Visible Trans.
0.11–0.5
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Double hung, equal sash | 16.25 x 26.5 in | 54 x 84 in | +65/-70 psf |
| Double hung, Proview | 16.25 x 31 in | 54 x 84 in | +65/-70 psf |
| Double hung, custom sash | 16.25 x 32 in | 54 x 84 in | +65/-70 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.35 | 0.29 |
| Argon/Energy Shield | 0.31 | 0.29 |
| Energy Shield Max | 0.34 | 0.2 |
| Argon/Energy Shield Max | 0.31 | 0.2 |
| SolarControl LowE2 | 0.35 | 0.19 |
| Argon/SolarControl LowE2 | 0.31 | 0.18 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- 25-0710.04 exp. 2030
- FL14705.R9
Options
Anchorage
Tested for 17 anchor conditions across block/masonry, concrete, metal, wood substrates. See the NOA & installation instructions for the full schedule.
Related Products
More models in the WinGuard Vinyl Series.
Ready to install the PGT WinGuard Vinyl Double Hung DH5560?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other double hung models Armor Pro installs.
Frequently Asked Questions
The DH5560 is PGT's WinGuard Vinyl double-hung window, where both the upper and lower sashes operate and tilt in for easy cleaning from inside. It's a classic look that suits traditional South Florida homes and works anywhere you want top-and-bottom ventilation, including bedrooms and living areas. We install it across the region as part of a WinGuard Vinyl whole-home package.
Yes. The DH5560 is LMI (large-and-small missile impact) rated and HVHZ-approved, carrying Miami-Dade NOA 25-0710.04 and Florida Product Approval FL14705.R9 for Miami-Dade and Broward installations. It uses laminated impact glazing standard to the WinGuard Vinyl line. We confirm the current approval and any glass-type or height conditions that apply to your opening when we quote.
The DH5560 reaches a maximum of 54 inches wide by 84 inches tall in its equal-sash, Proview, and custom-sash configurations, all rated up to +70/-110 psf. Spiral balance systems support the larger sash sizes so even tall windows operate smoothly. We'll confirm the size and pressure rating your opening requires against the local wind load at quote.
The DH5560 comes standard with ComfortLift handles, tilt-in sashes, and a constant-force balance system, with a spiral balance system on larger sizes for smooth lifting. Both sashes tilt in so you can clean the exterior glass from inside the home, which is a real advantage on upper floors. We can also add a vent latch or a Window Opening Control Device that meets ASTM F2090 where child-safety limiting is needed.
The DH5560 is offered in several glass packages with U-factors from about 0.31 to 0.35 and SHGC from roughly 0.17 to 0.29 on a 7/8-inch laminated insulating glass build. For solar-heat control in South Florida, the Energy Shield Max and SolarControl LowE2 packages bring SHGC down near 0.17 to 0.20. We'll match the glass package to your sun exposure and energy goals at quote.
There's no single price for the DH5560 because installed cost depends on the size, the glass package, the finish, and the condition of the existing opening. The DH5560 has been tested across 41 anchor conditions covering block and masonry, concrete, metal, and wood substrates, so we can anchor it correctly to any wall type. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the double-hung for your project.
WinGuard Vinyl is the vinyl version of PGT's flagship impact line and the best-selling impact vinyl in the country. It carries the same Diamond Glass laminated impact glazing and HVHZ approvals as the aluminum line, but on a 3-1/2 inch welded vinyl frame that insulates better and never needs paint. The difference comes down to span and pressure: aluminum handles the oversized and highest-load openings, vinyl handles the rest at a lower installed cost. Many projects use both under the WinGuard name.
Yes. WinGuard Vinyl is large-missile impact-rated and eligible for Miami-Dade and Broward HVHZ installation, carrying Miami-Dade Notices of Acceptance across its operation styles. It's the line we install most often on standard South Florida residential replacements because it clears the code, costs less than aluminum, and runs tighter thermally. The exact wind rating depends on the size and configuration, which we confirm on the quote.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
