WinGuard Vinyl Series
PGT's vinyl impact window family, the best-selling impact vinyl in the U.S.
The best-selling impact vinyl line in the U.S., built on a 3-1/2 inch welded vinyl frame with Diamond Glass laminated glazing. Nine operation styles mull cleanly into all-vinyl…
Miami-Dade NOA
10 active
Florida DBPR
Approved
HVHZ
Approved
Impact Rating Large-Missile (LMI)
Design Pressure +100 / -110 psf
Energy U-factor from 0.24
12 windows & doors in the WinGuard Vinyl Series
Compare sizes, glass packages, and approvals model by model — every unit installed by Armor Pro across South Florida.
Windows (9)
Doors (3)
About the WinGuard Vinyl Series
WinGuard Vinyl is the line Armor Pro installs most often on standard South Florida residential replacements, for a straightforward reason: it is impact-rated for the HVHZ, it costs less installed than the aluminum line, and the welded vinyl frame shrugs off salt air without ever needing paint. For the typical opening (a single hung in a bedroom, a roller off the kitchen, a picture unit in the living room) vinyl carries the load the code asks for while running tighter thermally than aluminum, so a homeowner replacing a whole house in Miami-Dade or Broward gets storm protection and a lower energy bill in one product.
The line spans nine operation styles on a common 3-1/2 inch welded frame, all glazed with PGT's Diamond Glass laminated impact glass, so single hung through sliding and French door mull cleanly into all-vinyl elevations without switching systems. As the best-selling impact vinyl line in the country it also carries a deep approval record, which keeps permitting predictable.
Where WinGuard Vinyl reaches its limit is span and design pressure. Vinyl frames flex sooner than aluminum, so very wide sliding doors, tall two-story glass, and the highest-pressure coastal exposures belong on WinGuard Aluminum instead. Armor Pro specs vinyl for the bulk of a typical home and switches to aluminum for the oversized or highest-load openings, often mixing both on the same project under the WinGuard name.
Approvals & Certifications
12+ current Miami-Dade NOAs and Florida Product Approvals tied to the WinGuard Vinyl Series — each verifiable by approval number below.
| Authority | Approval # | Product | Issued | Expires |
|---|---|---|---|---|

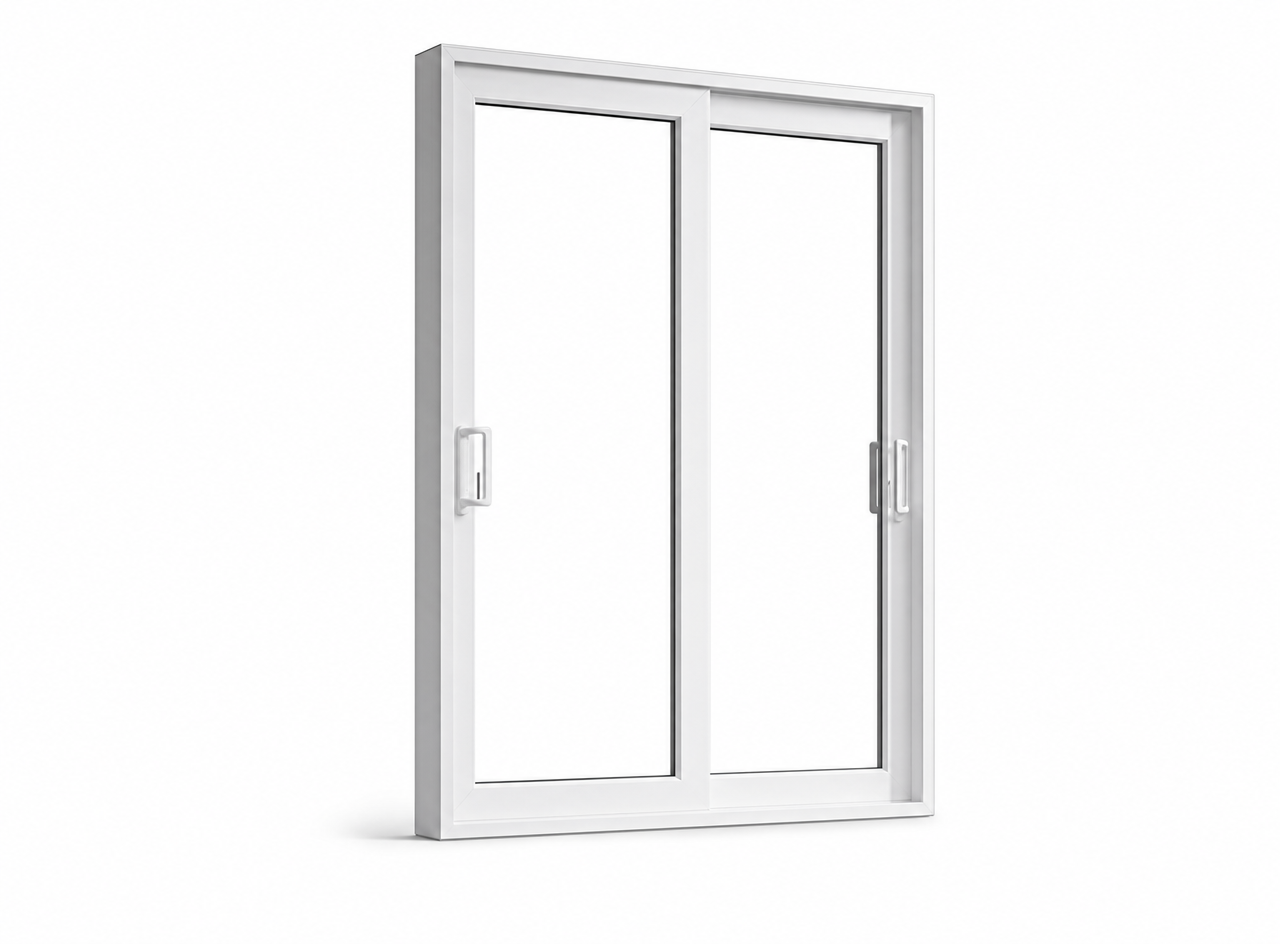

| 26-0126.03 | PGT WinGuard Vinyl Preferred Sliding Glass Door SGD5570 | — | 2031-04-14 | |

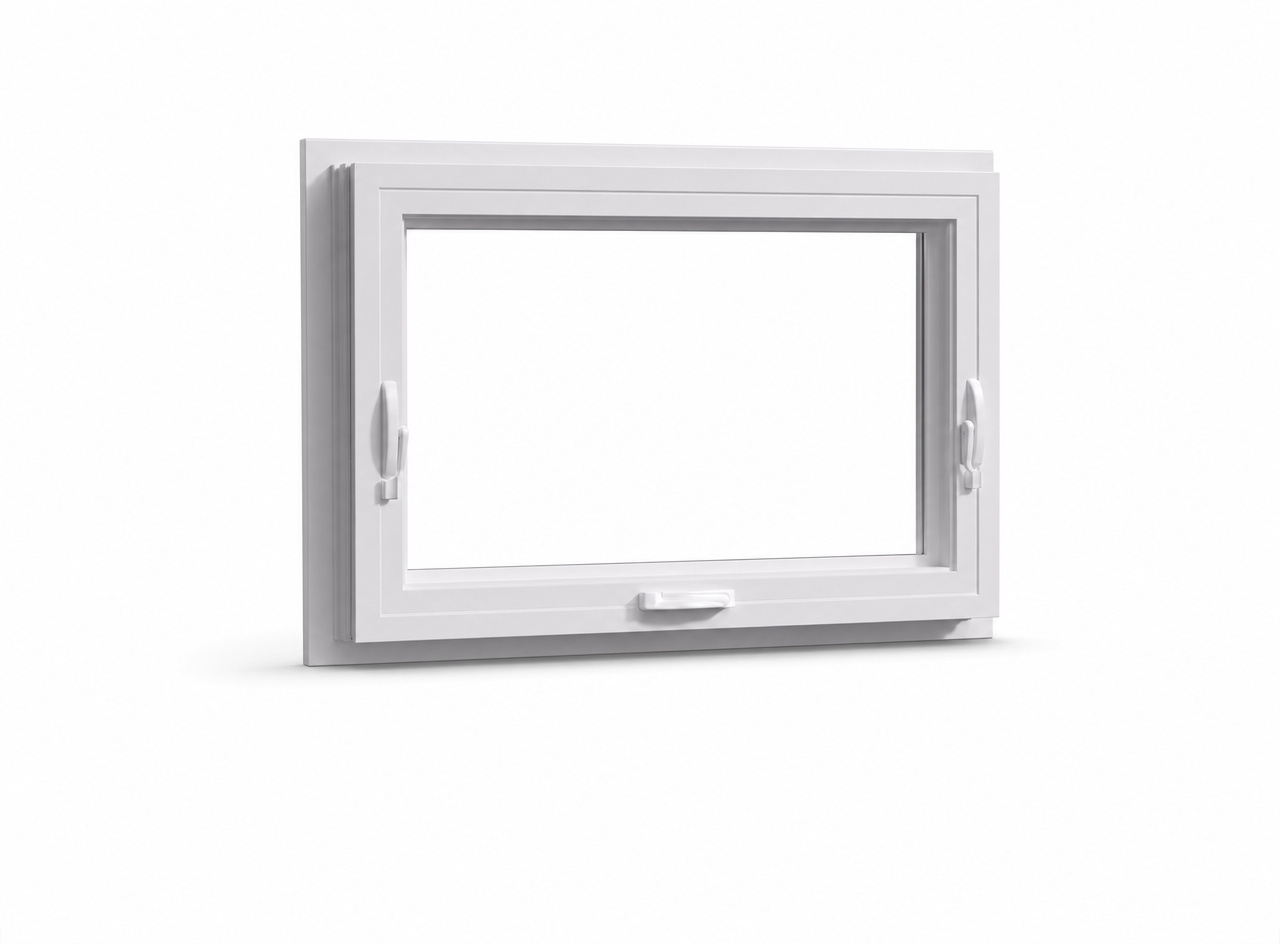

| 25-0801.07 | PGT WinGuard Vinyl Awning AW5540 | — | 2030-09-24 | |

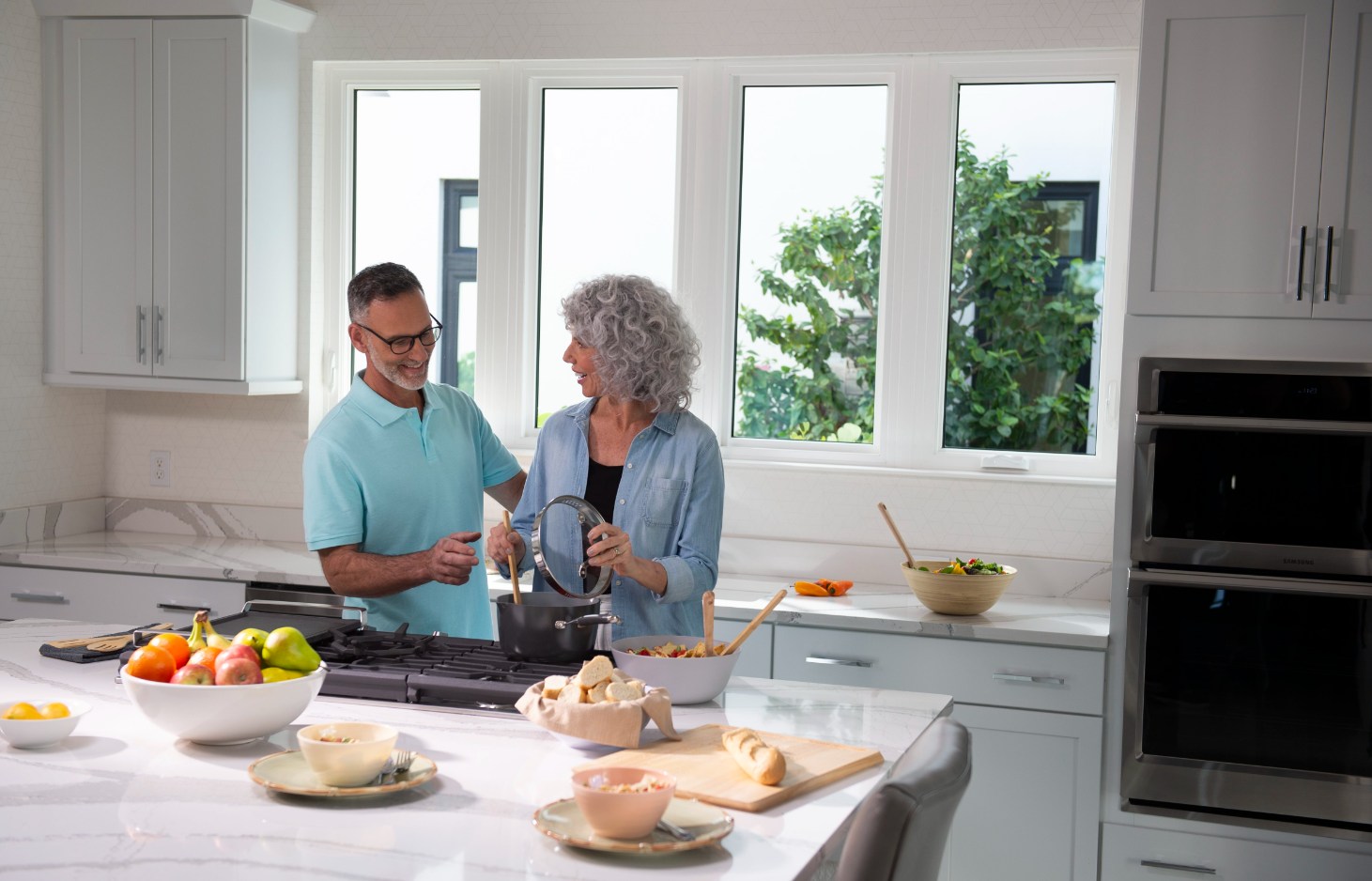

| 25-0801.05 | PGT WinGuard Vinyl Casement Picture PW5540 | — | 2030-09-24 | |

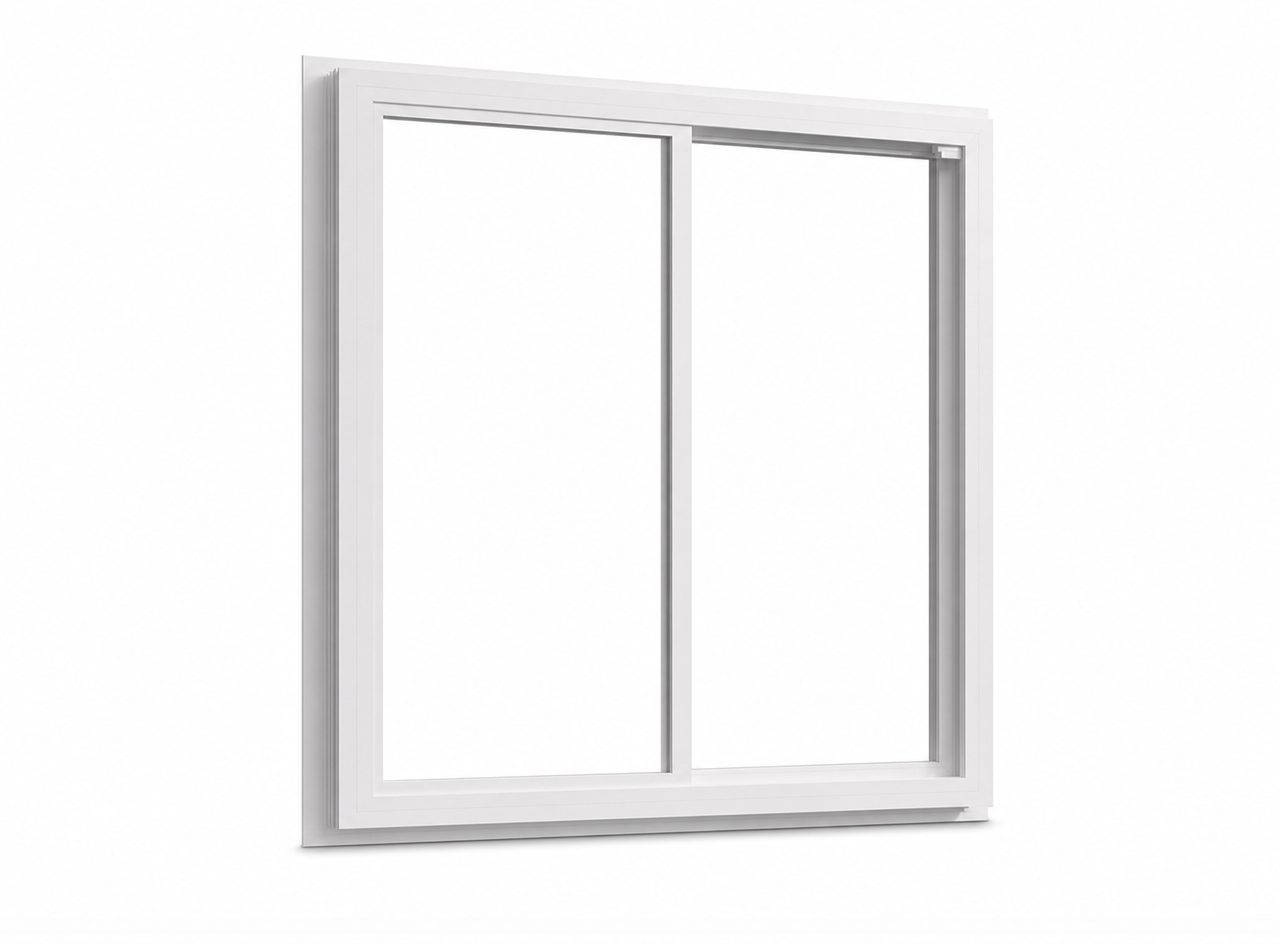

| 25-0801.03 | PGT WinGuard Vinyl Horizontal Roller HR5510 | — | 2030-09-24 | |

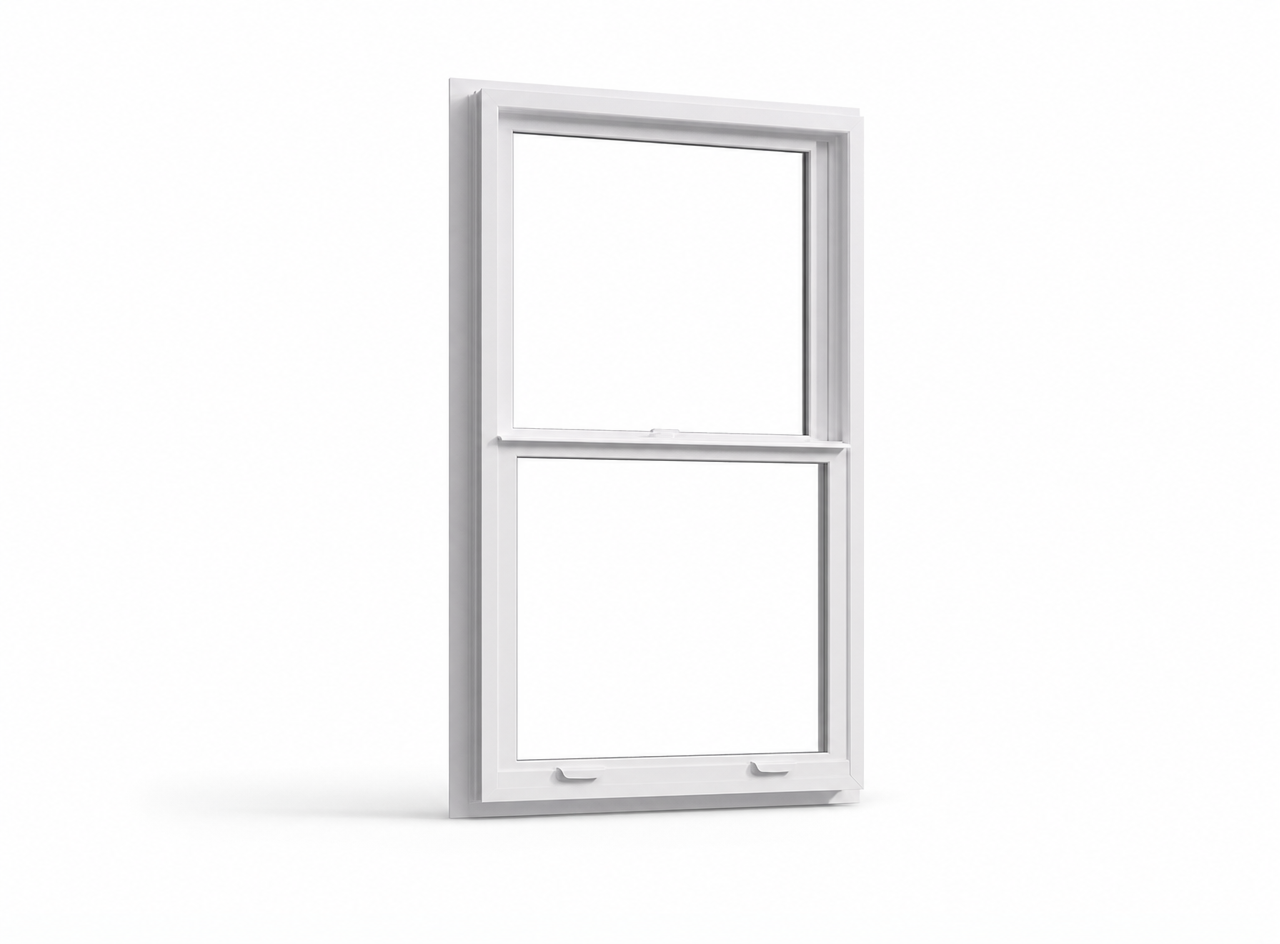

| 25-0710.04 | PGT WinGuard Vinyl Double Hung DH5560 | — | 2030-09-17 | |

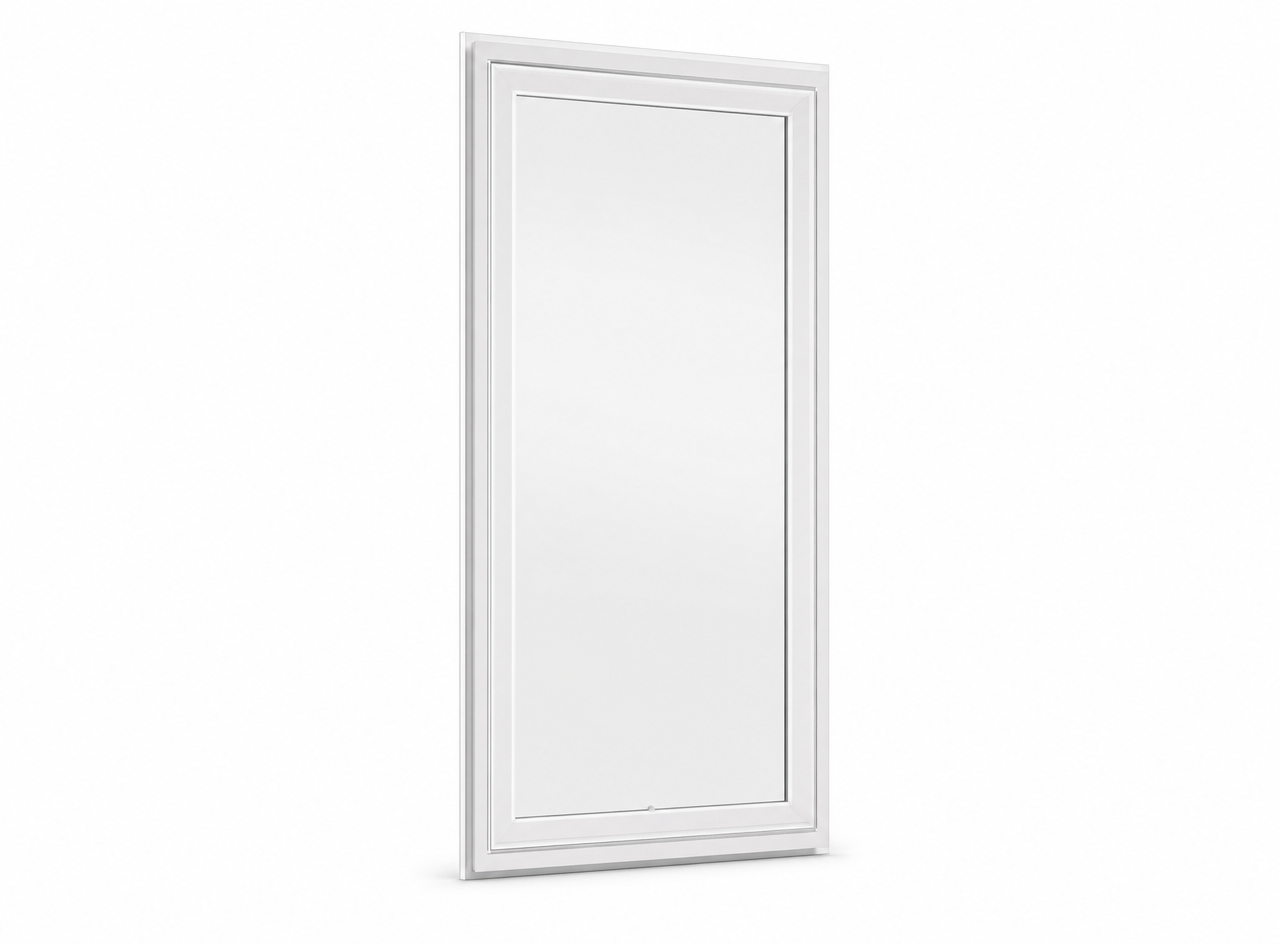

| 25-0710.01 | PGT WinGuard Vinyl Casement CA5540 | — | 2030-09-17 | |

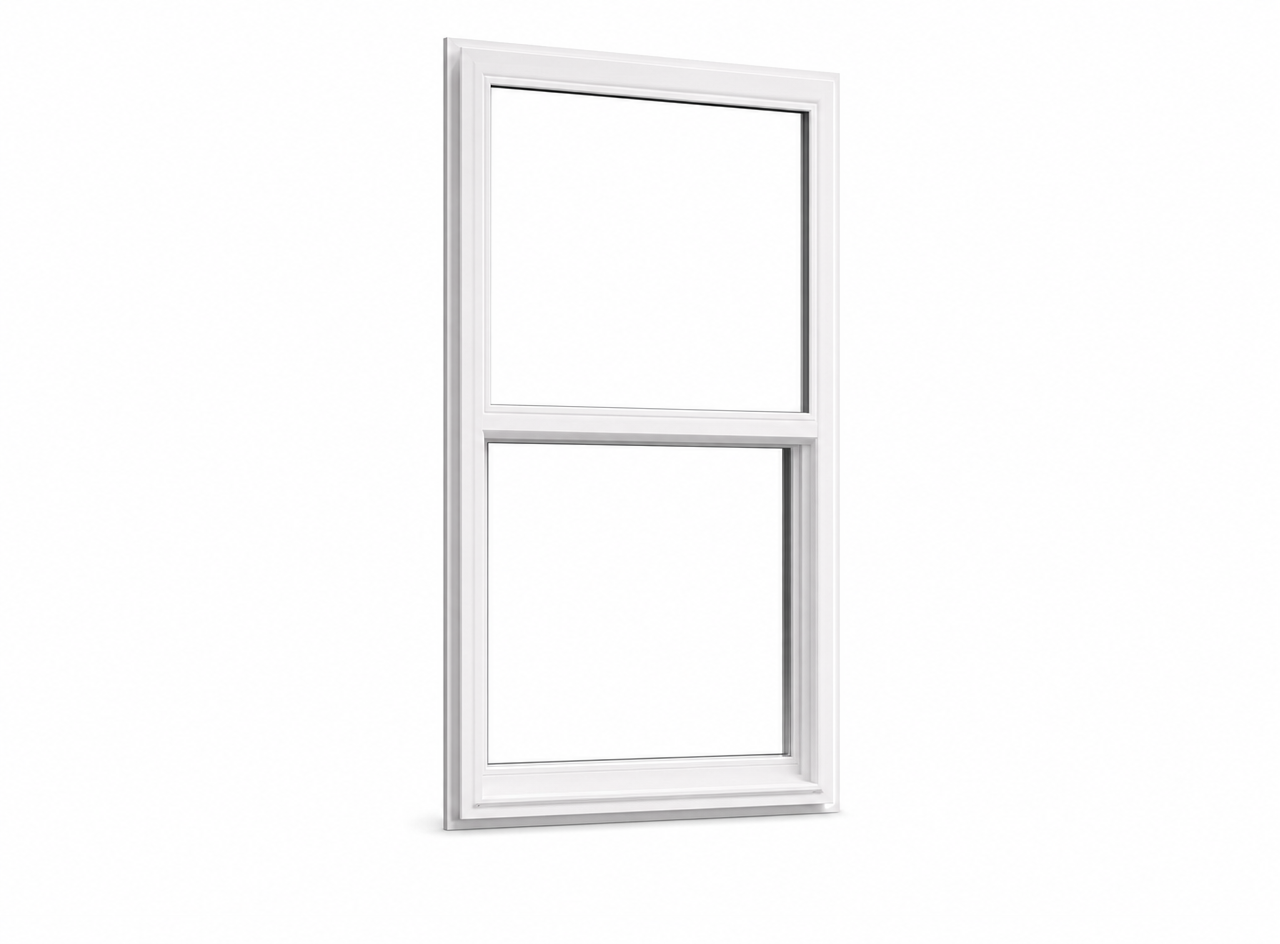

| 25-0520.01 | PGT WinGuard Vinyl Single Hung SH5500 | — | 2030-07-30 | |

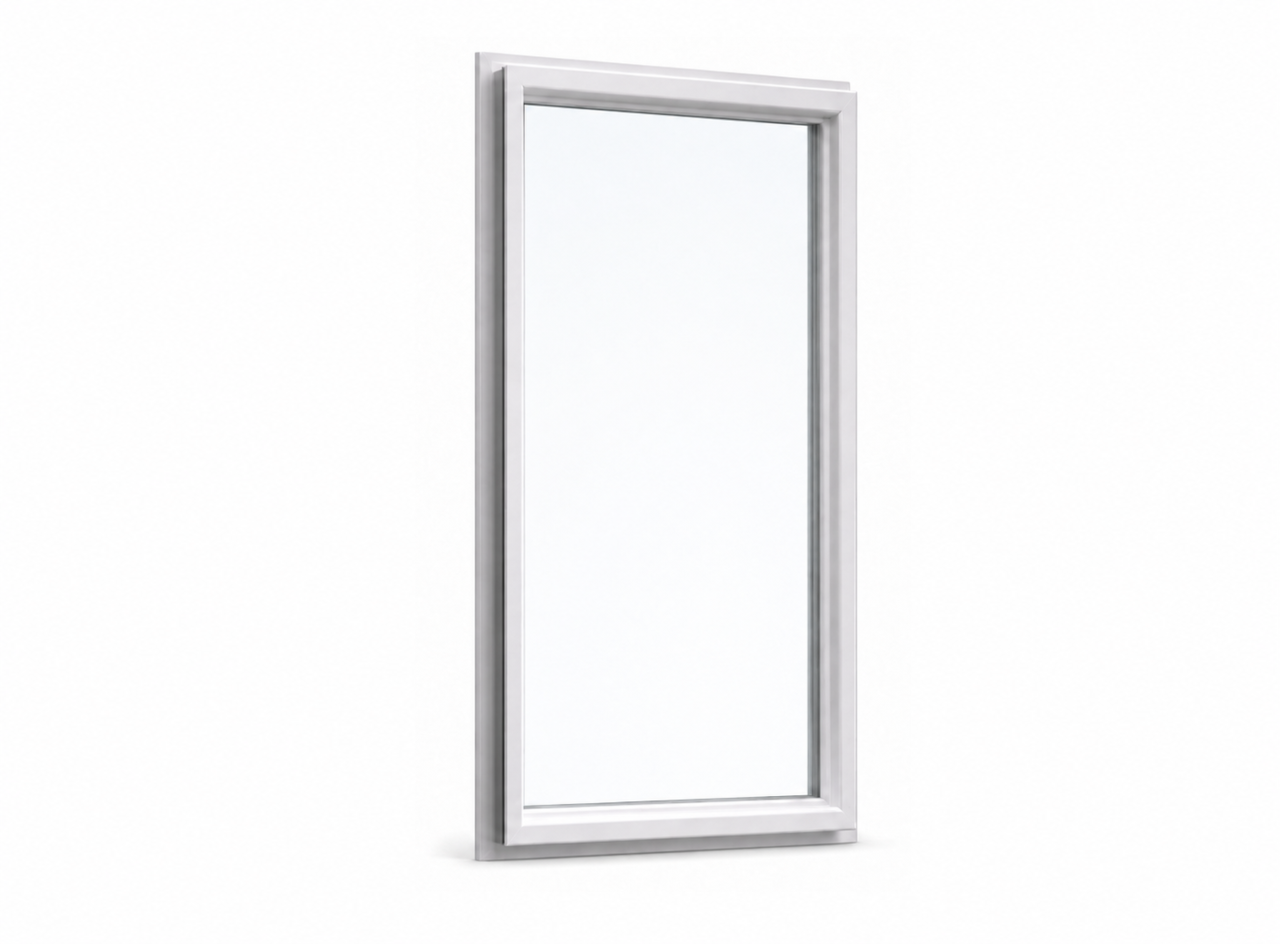

| 25-0220.04 | PGT WinGuard Vinyl Picture PW5520 | — | 2030-04-30 | |

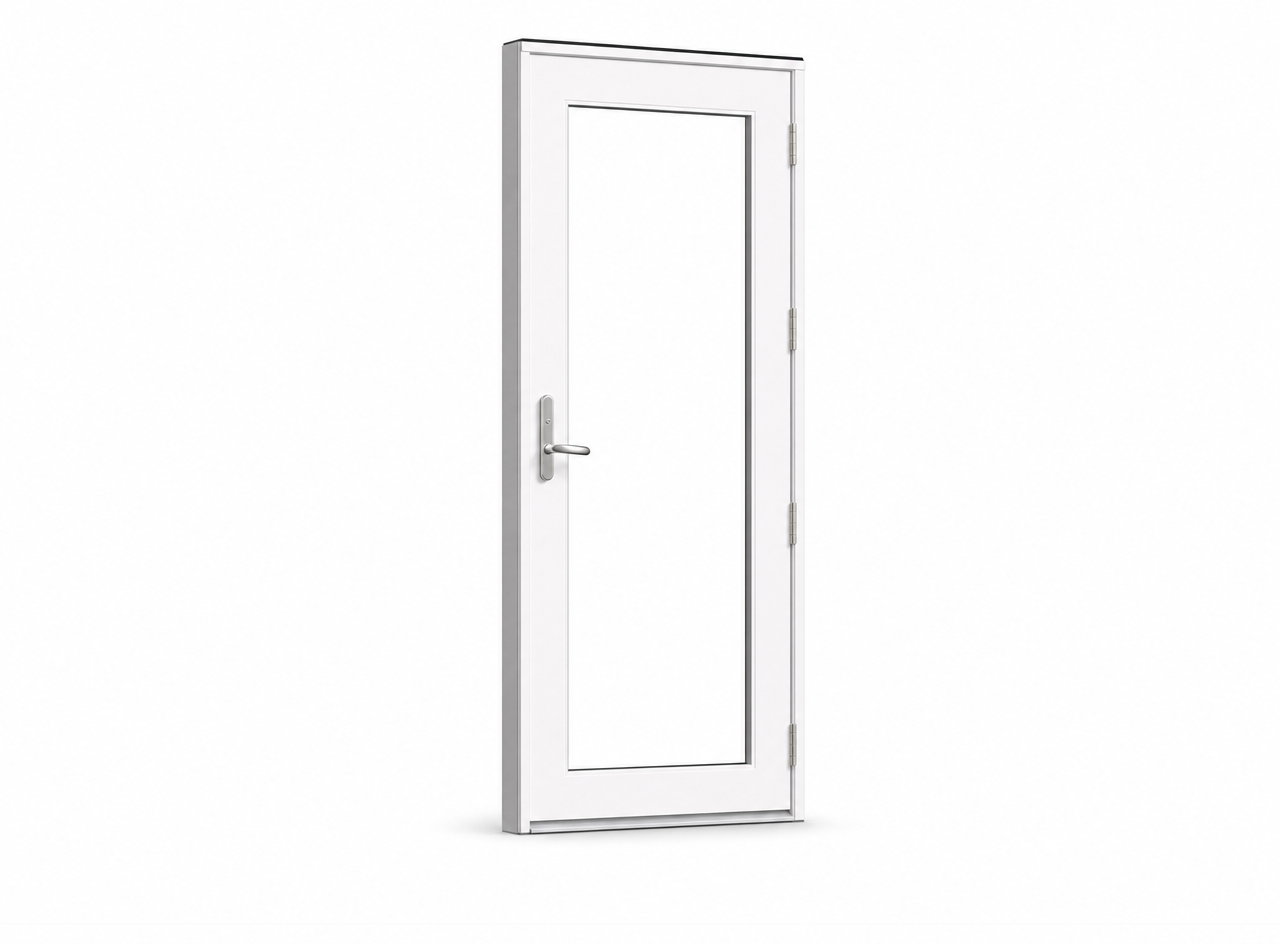

| 23-0717.01 | PGT WinGuard Vinyl Preferred French Door FD5555 | — | 2029-01-23 | |
| 23-0710.11 | PGT WinGuard Vinyl Preferred Sliding Glass Door SGD5570 | — | 2026-08-04 | |
| FL331.R27 | PGT WinGuard Vinyl Preferred French Door FD5555 | 2026-04-14 | — | |

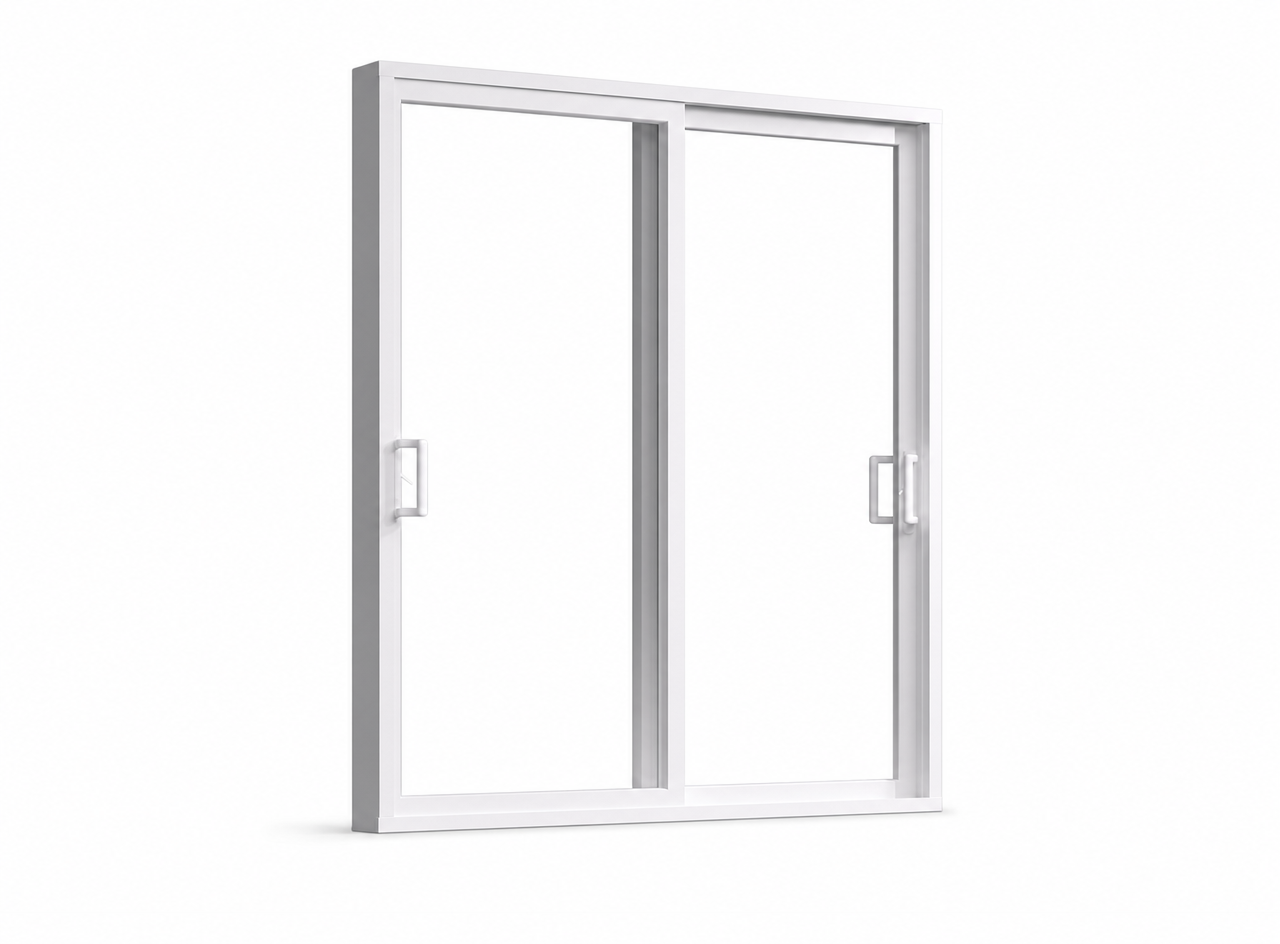

| FL251.R42 | PGT WinGuard Vinyl Preferred View SGD5570NS | 2026-04-08 | — |
Documents
Other (53)
- PGT WinGuard Vinyl Preferred View SGD5570NS — vFL242-R35
- PGT WinGuard Vinyl Preferred View SGD5570NS — vFL242-R35
- PGT WinGuard Vinyl Preferred View SGD5570NS — vFL242-R35
- PGT WinGuard Vinyl Preferred View SGD5570NS — vFL242-R35
- PGT WinGuard Vinyl Preferred View SGD5570NS — vFL242-R35
- PGT WinGuard Vinyl Preferred View SGD5570NS — vFL242-R35
- PGT WinGuard Vinyl Preferred Sliding Glass Door SGD5570 — vFL242-R35
- PGT WinGuard Vinyl Preferred Sliding Glass Door SGD5570 — vFL242-R35
Showing 8 of 53.
FL Approval Test Reports (7)
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
- PGT WinGuard Vinyl Preferred French Door FD5555 — vFL331-R27
