WinGuard Aluminum Series
Miami-Dade NOA
Florida DBPR
Approved
HVHZ
Approved
Impact Rating LMI
Design Pressure +80/-105.8 psf
NFRC Certified
Glazing Impact Glass
Made in Florida

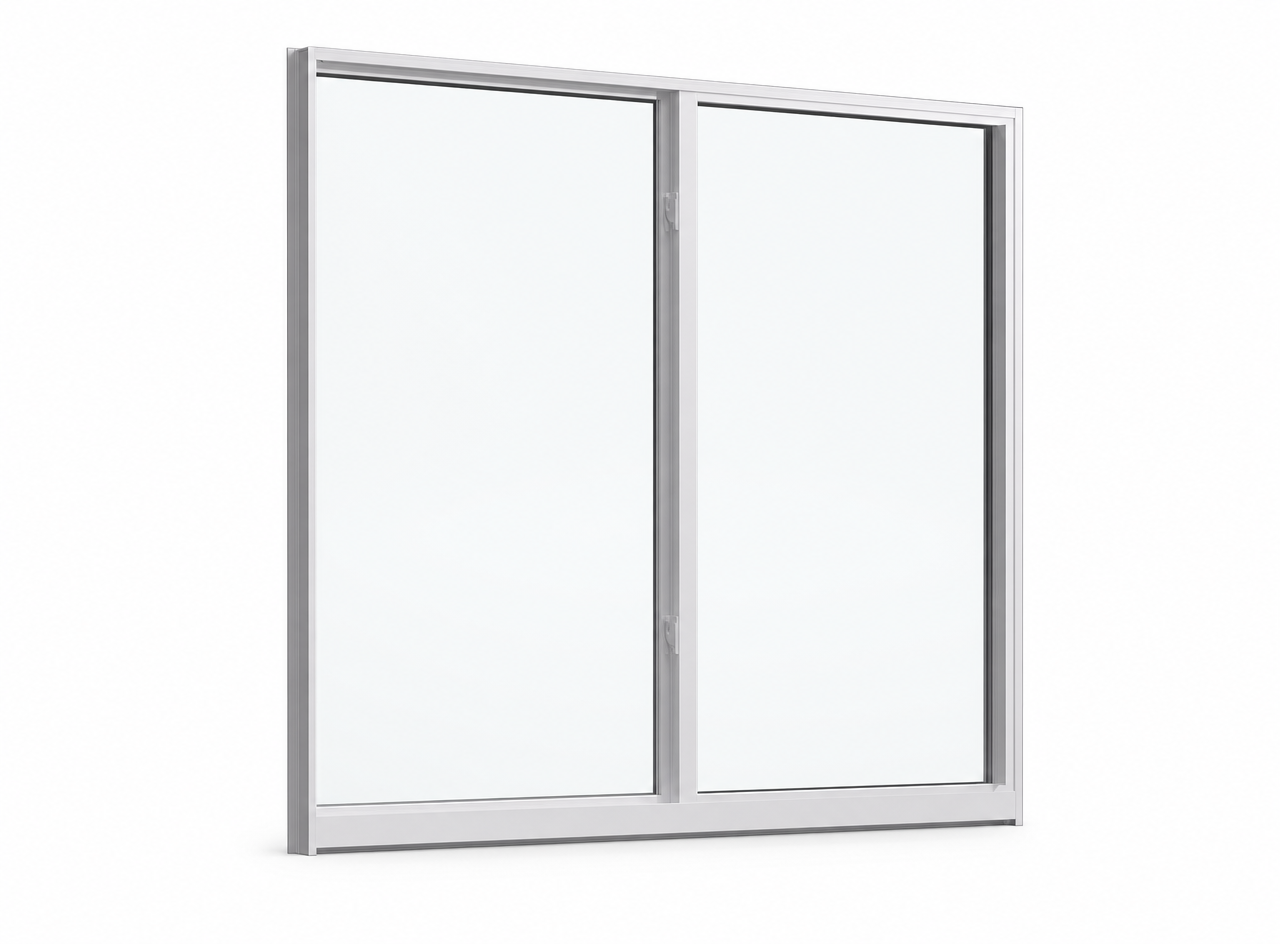

PGT WinGuard Aluminum Horizontal Roller HR7710A
PGT's flagship aluminum impact line, the reference impact-window platform in Florida.
Aluminum impact horizontal roller on the WinGuard 7700-series frame, opening side-to-side for wider residential openings. Diamond Glass, LMI for HVHZ.
Miami-Dade NOA
Florida DBPR
Approved
HVHZ
Approved
Impact Rating LMI
Design Pressure +80/-105.8 psf
NFRC Certified
Glazing Impact Glass
Made in Florida
Frame finish
Impact protection, built for South Florida

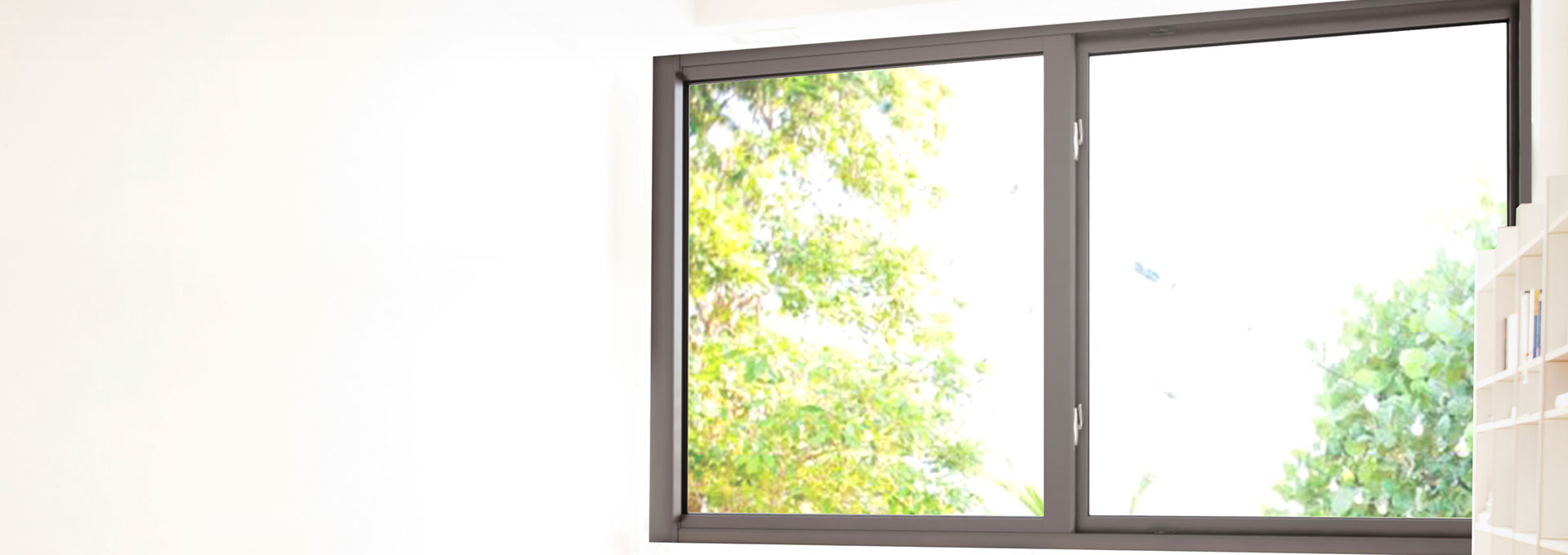

The HR7710A is PGT's WinGuard Aluminum horizontal roller window, opening side-to-side for wider residential openings. Built on the WinGuard 7700-series frame platform with PGT's Diamond Glass impact glazing. LMI impact-rated for HVHZ installations.
- Tested & certified to Miami-Dade HVHZ hurricane standards
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Styles
1" Raised/Flat9/16" Flat Grid-Between-the-Glass
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
76 x 76 in
Design Pressure
+80/-105.8 psf
U-Factor
1.11–1.12
SHGC
0.29–0.68
Visible Trans.
0.13–0.7
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Horizontal roller, 2-lite (XO/OX) | 19.75 x 18 in | 76 x 76 in | +80/-105.8 psf |
| Horizontal roller, 3-lite (XOX 1/4-1/2-1/4) | 42 x 14.625 in | 120 x 63 in | +80/-106.7 psf |
| Horizontal roller, 3-lite (XOX 1/3-1/3-1/3) | 35.25 x 16.875 in | 113.625 x 63 in | +80/-110 psf |
Sizes shown are actual DLO frame size.
Flange frame: +1 in W & H.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.58 | 0.33 |
| Argon/Energy Shield | 0.54 | 0.32 |
| Energy Shield Max | 0.58 | 0.23 |
| Argon/Energy Shield Max | 0.54 | 0.22 |
| SolarControl LowE2 | 0.59 | 0.22 |
| Argon/SolarControl LowE2 | 0.55 | 0.21 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- 23-0707.06 exp. 2028
- FL242.R35
Options
Related Products
More models in the WinGuard Aluminum Series.
Ready to install the PGT WinGuard Aluminum Horizontal Roller HR7710A?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other horizontal roller models Armor Pro installs.
Eastern Architectural Systems
EAS 176 Bertha Horizontal Roller Impact Vinyl
See price & specs
ES Windows
ES Windows Prestige ES-P300 Sliding (TB Retrofit)
See price & specs
ECO Window Systems
Eco-Guard Horizontal Rolling Series 200
See price & specs
Eurocraft
Eurocraft EC-300 Horizontal Slider Window
See price & specs
Frequently Asked Questions
The HR7710A is PGT's WinGuard Aluminum horizontal roller, which opens side-to-side rather than up and down, making it a strong fit for wider residential openings. It comes in 2-lite and 3-lite configurations, so we install it where you want a broad, low window that's easy to slide open. It's built on the WinGuard 7700-series frame with PGT's Diamond Glass impact glazing.
Yes. The HR7710A is LMI (Large Missile Impact) rated and carries Miami-Dade Notice of Acceptance (NOA) 23-0707.06, which is valid through August 23, 2028. That approval clears it for installation throughout the High-Velocity Hurricane Zone in Miami-Dade and Broward. We'll confirm the current NOA and design pressure for your opening at the time of quote.
In its 3-lite configuration, the HR7710A spans up to 120 inches wide by 63 inches tall, while the 2-lite version goes up to 76 by 76 inches. All configurations carry a design pressure rating of +80/-110 psf. We size and configure the unit to your opening and verify the rating before ordering.
The HR7710A uses a 13/16-inch laminated insulating glass unit with packages including Energy Shield, Energy Shield Max, and SolarControl LowE2, with optional argon fill. With those insulated impact packages, U-factors run from about 0.54 to 0.60 and SHGC from 0.19 to 0.33 depending on the package and grids. For South Florida heat, we usually recommend the argon-filled Energy Shield Max or SolarControl LowE2 for the best efficiency.
The HR7710A is offered in White as standard, plus Bronze, Black, and Clear Anodized frame finishes. Standard hardware includes integrated lift rails, deluxe sweep locks, stainless-steel bearing rollers for smooth sliding, and a vent latch, with an optional Window Opening Control Device available. Grid options include a 1-inch raised/flat profile or a 9/16-inch flat grid-between-the-glass style.
Installed pricing for the HR7710A depends on the configuration (2-lite or 3-lite), the size, the glass package you choose, and the condition of your opening. Because these can span up to 120 inches wide, larger openings affect both the unit and the labor. Armor Pro provides a free in-home estimate so you get an accurate number for your project rather than a generic per-window price.
WinGuard Aluminum is PGT's flagship aluminum impact line and runs the full operation range on one extrusion platform: single hung, horizontal roller, casement, awning, fixed picture, architectural shapes, plus sliding glass doors and French doors. Because every style shares the same frame family, a whole house can be specified consistently instead of mixing systems opening by opening. It's been PGT's reference impact-window platform in Florida since 1998.
Yes. Every WinGuard Aluminum product is large-missile impact-rated and eligible for the High-Velocity Hurricane Zone, which covers Miami-Dade and Broward counties. The line carries one of the deepest Miami-Dade NOA libraries in the industry, glazed with PGT's Diamond Glass laminated impact glass. The exact design pressure depends on the size and configuration of each opening, which we confirm against the Florida Building Code on your quote.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
