PGT EnergyVue Vinyl Preferred French Door FD5455
PGT's non-impact vinyl line with the best thermal performance in the PGT residential catalog.
Non-impact vinyl French door, the non-impact counterpart of the WinGuard FD5555 for inland residential patio installations.
Miami-Dade NOA
Florida DBPR
Approved
HVHZ
Approved
Design Pressure +70/-70 psf
NFRC Certified
Made in Florida
Frame finish
White
Beige
Bronze
Black
Custom
Impact protection, built for South Florida

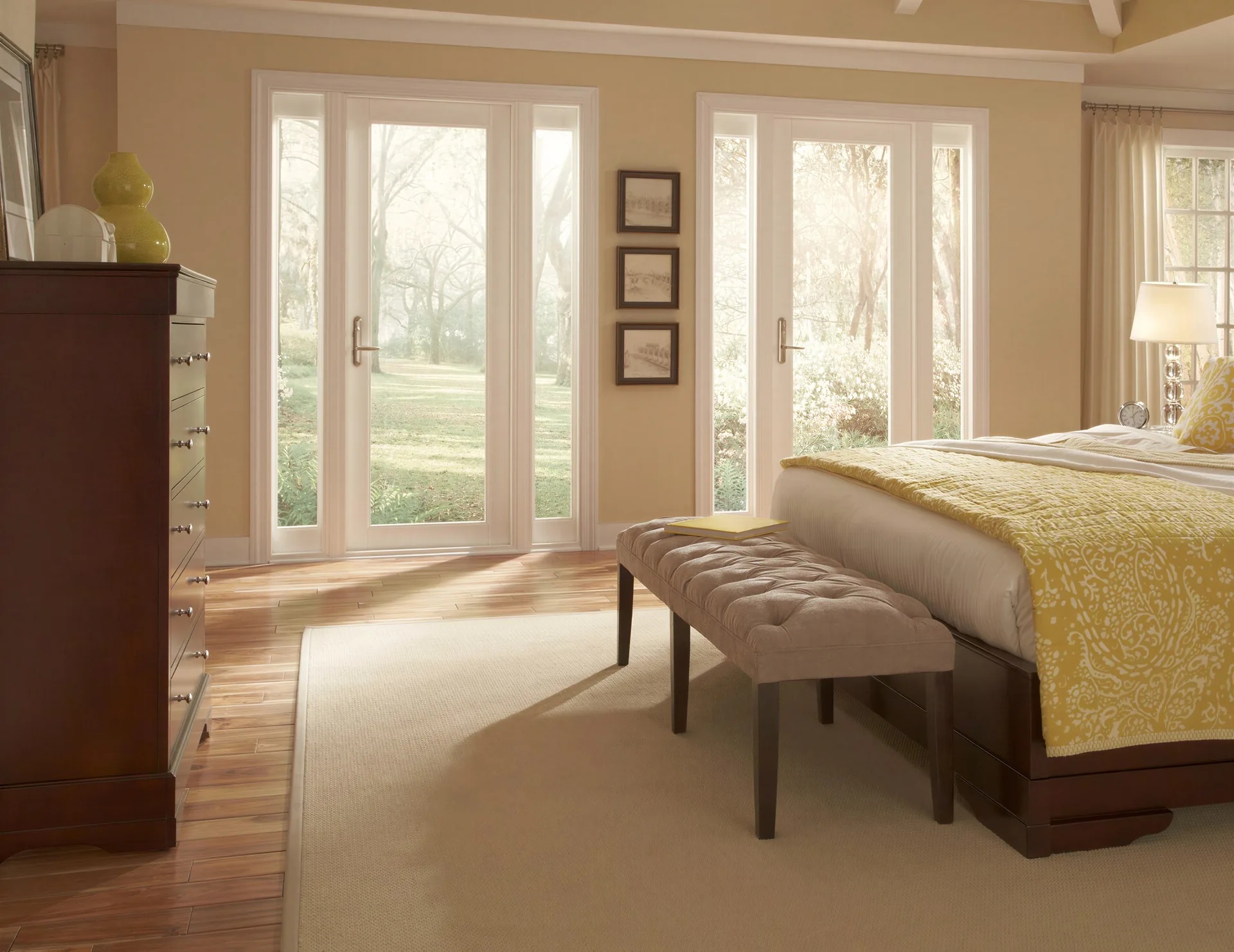

The FD5455 is EnergyVue's vinyl French door, the non-impact counterpart to the WinGuard FD5555 for inland patios and courtyards. It brings EnergyVue's thermal performance and the welded-vinyl, low-maintenance frame to a hinged door, matching the look of an EnergyVue window project on the same patio wall.
Armor Pro installs the FD5455 on non-HVHZ addresses where the driver is energy and appearance rather than storm rating. It is not an impact door, so any opening that needs a Notice of Acceptance moves to the WinGuard FD5555 in vinyl or the FD160A in aluminum.
- Tested & certified to Miami-Dade HVHZ hurricane standards
- Vinyl frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Patterns
Grille Styles
9/16" Flat Grid-Between-the-Glass13/16" Flat Grid-Between-the-Glass1" Contour Grid-Between-the-Glass
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Vinyl
Max Size
38.75 x 96 in
Design Pressure
+70/-70 psf
U-Factor
0.62–0.81
SHGC
0.18–0.6
Visible Trans.
0.01–0.71
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Single (X) | 20 x 74 in | 38.75 x 96 in | +70/-70 psf |
| Double (XX) | 36 x 74 in | 76 x 96 in | +70/-70 psf |
| Sidelite / Transom (O) | 12 x 20 in / 20 x 12 in | 40 x 111 in or 111 x 40 in | +70/-70 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.34 | 0.24 |
| Argon/Energy Shield | 0.31 | 0.24 |
| Energy Shield Max | 0.33 | 0.16 |
| Argon/Energy Shield Max | 0.31 | 0.16 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- 23-0724.01 exp. 2029
- FL331.R27
- FL253.R26
Options
Related Products
More models in the EnergyVue Vinyl Series.
Ready to install the PGT EnergyVue Vinyl Preferred French Door FD5455?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other french door models Armor Pro installs.
Frequently Asked Questions
The FD5455 is PGT's EnergyVue Preferred non-impact vinyl French door, a hinged patio door built on a welded, low-maintenance vinyl frame with a 4-9/16-inch frame depth. It brings EnergyVue's thermal performance to a door that matches the look of an EnergyVue window project on the same patio wall. We install it on inland, non-HVHZ patios and courtyards where energy and appearance drive the choice rather than storm rating.
No, the FD5455 is a non-impact door, so it is not approved for the High-Velocity Hurricane Zone. It carries Miami-Dade NOA 23-0724.01 (valid through January 23, 2029) for its tested wind pressures and anchoring, but that does not make it impact-rated. For any opening that needs hurricane protection or a Notice of Acceptance for the HVHZ, we move you to the WinGuard FD5555 in vinyl or the FD160A in aluminum, and we'll confirm which your address requires.
The FD5455 comes as a single door (X) from 20 by 74 inches up to 38.75 by 96 inches, a double door (XX) up to 76 by 96 inches, and as sidelite or transom (O) units up to 40 by 111 inches. All configurations carry a design pressure of +70/-70 psf. We'll lay out the door, sidelites, and transoms to fit your opening and confirm sizing at quote.
With insulated Low-E glass the FD5455 ranges from a U-factor of 0.29 to 0.34 with an SHGC of 0.14 to 0.24, depending on glass package. The Argon/Energy Shield Max package reaches U-factor 0.31 with SHGC as low as 0.14 for strong solar-heat control on a sunny patio. We'll match the glass package to your exposure and energy goals when we quote.
The FD5455 comes standard with a standard handle and offers a curved handle or a contemporary handle upgrade to match your hardware style. Frame finishes include White, Beige, Bronze, and Black, plus two-tone Bronze-exterior/White-interior and Black-exterior/White-interior, and you can add 7/8-inch Traditional Simulated Divided Lite grids or 9/16-inch, 13/16-inch, or 1-inch grids between the glass. We'll coordinate the finish with the rest of your EnergyVue project.
There is no flat price on the FD5455 because installed cost depends on whether it is a single, double, or sidelite/transom layout, the glass package, the handle choice, and the condition of the opening. As a non-impact door it generally costs less than the impact-rated WinGuard FD5555 or aluminum FD160A. Armor Pro gives a free, no-obligation estimate after we measure your patio opening.
No — EnergyVue is a non-impact vinyl line, so it cannot be installed in the High-Velocity Hurricane Zone of Miami-Dade and Broward, and it isn't the right choice for any opening that needs a Notice of Acceptance. It belongs on inland Florida addresses where the building code does not require laminated impact glazing. If you're inside the HVHZ or you want storm protection regardless of jurisdiction, the impact counterpart is WinGuard Vinyl, which uses the same frame.
EnergyVue is the line for projects driven by the energy bill rather than the wind map. It posts the best thermal performance in PGT's residential catalog — U-factors from about 0.27 to 0.32 with the EnergyShield Max Low-E package — which is low enough to move a utility bill and clear ENERGY STAR for the climate zone. The welded vinyl frame also resists salt-air corrosion and never needs repainting. We spec it for inland, energy-focused homes where impact glass isn't required by code.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
