Eco-Guard French & Swing Door Series
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +70/-75 psf
Made in Florida

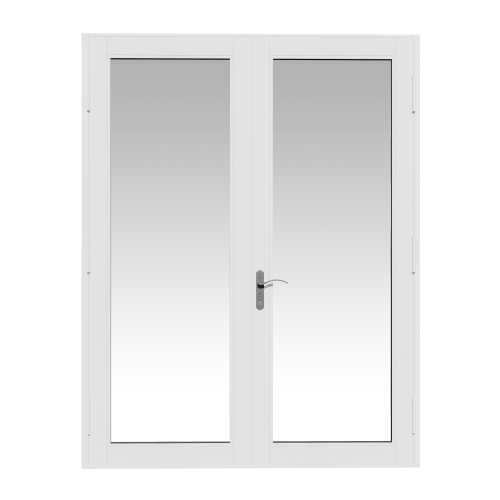

Eco-Guard French Door Series 600
Outswing French and entry impact doors, single through OXXO, up to 132 in. with transom.
4 in. outswing aluminum impact French door, single/double/OXXO to 148 in. wide x 98 in., +70/-75 psf, LMI+SMI, NFRC-certified, concealed install screws.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +70/-75 psf
Made in Florida
Impact protection, built for South Florida
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
39.75 x 98 in (per panel)
Design Pressure
+70/-75 psf
Impact Rating
LMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Single Leaf (X) | 39.75 x 98 in (per panel) | +70/-75 psf |
| Double Leaf (XX) | 76 x 98 in (per panel) | +70/-75 psf |
| Stand-Alone Sidelite (O) | 37.188 x 98 in | +70/-75 psf |
Performance Certifications
- FL39630.R5
- FL21635.R1
- FL39630
Options
Related Products
More models in the Eco-Guard French & Swing Door Series.
Ready to install the Eco-Guard French Door Series 600?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.

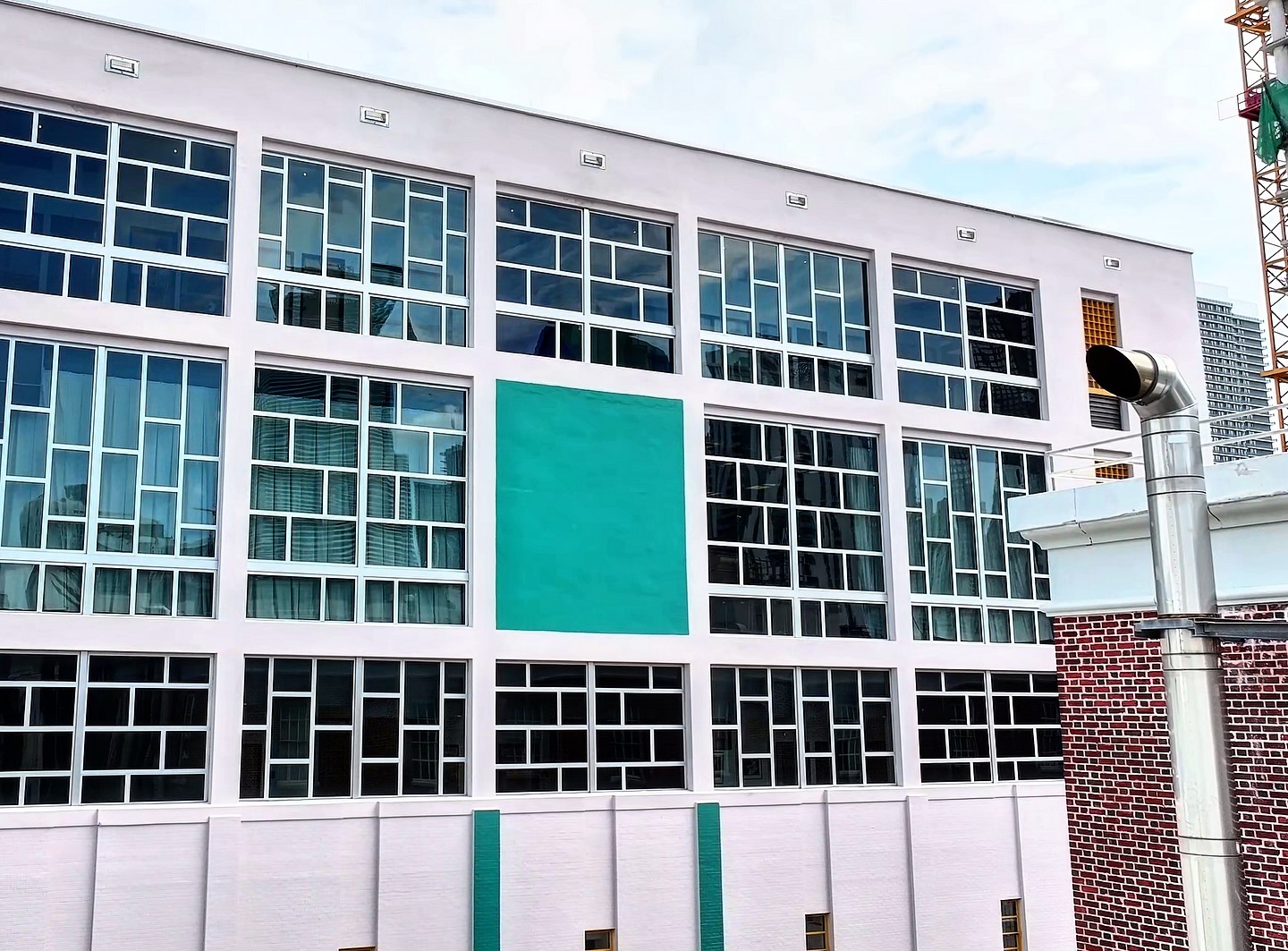

Comparable from Other Brands
Other french door models Armor Pro installs.
.jpg)
Frequently Asked Questions
The Eco-Guard Series 600 is ECO Window Systems' 4 in. outswing aluminum impact French door, the entry point in ECO's French and swing door family. It's available as a single leaf, double leaf, or in an OXXO layout and reaches up to 148 in. wide with a transom. We install it on impact-rated patio and entry openings where a hinged door fits the elevation better than a slider.
Yes. The Series 600 is Large Missile Impact (LMI) rated and HVHZ approved for High-Velocity Hurricane Zone openings in Miami-Dade and Broward. It runs on Florida Product Approval FL39630 (current revision FL39630.R5). We confirm the active approval and the rating for your specific opening as part of permitting.
Configured as a single or double leaf, the Eco-Guard 600 carries a design pressure of +70/-135 psf, which is the wind load the door is engineered to resist. The single leaf reaches 39.75 in. wide and the double leaf 76 in. wide, both up to 98 in. tall. We measure your opening and confirm the design pressure your wind zone requires before ordering.
The Series 600 offers three glazing options: a standard 5/16 in. laminated lite with a .090 in. Trosifol PVB interlayer (Glass Type G1), a 7/16 in. laminated PVB lite (G2), and a 3/4 in. insulated laminated unit with a 5/16 in. air space (G3). The insulated G3 build adds an interior glass lite and an airspace for better thermal performance. We'll help you match the glass package to your project at quote.
Yes, the Series 600 is NFRC-certified, which is the standard for documented energy performance and is unique to the 600 within ECO's swing-door family. Its impact glass uses a SentryGlas (SGP) ionoplast interlayer, a stiffer, stronger interlayer than standard PVB, in a build of tempered glass, a 3/8 in. air space, heat-strengthened glass, a .090 in. SentryGlas interlayer, and a final heat-strengthened lite. We can pull the certified ratings for the configuration you choose.
The Series 600 comes with a standard water-rated threshold, and an ADA threshold is available when you need a low, accessible sill. The ADA threshold is not water-rated, so there's a trade-off between barrier-free access and water resistance that we'll walk you through. Armor Pro will recommend the right threshold for your entry based on how exposed the opening is.
A French or swing door is hinged and swings open like an entry door, where a slider glides on a track — so a French door fits elevations where you want a traditional hinged look or a clear, un-tracked opening. ECO's swing family covers single, double, and OXXO configurations (two operable doors flanked by fixed sidelites) up to 132 inches wide with a transom. We help you decide between a swing door and a slider based on the opening, the swing clearance, and the look you're after.
Yes. The Series 600, 650, 850, and 950 are aluminum with Eco-Guard laminated impact glass and carry large-missile impact approval under Florida Product Approval FL39630, eligible for Miami-Dade and Broward HVHZ installation. Design pressures run roughly +60/-70 psf up to +80/-80 psf on the heavy-duty Series 850, and the Series 600 is NFRC-certified. We confirm the exact rating for your opening on the quote.
Yes. ECO's residential aluminum impact lines carry Miami-Dade Notices of Acceptance and Florida Product Approvals, which makes them eligible to install in the High-Velocity Hurricane Zone (Miami-Dade and Broward counties). The exact wind ratings depend on the specific series, size, and configuration, so we confirm the right product for your opening on the quote. We pull the permit and submit the approval documents as part of every job.
Explore more: All French Doors we install · Window and Door Designer and Visualizer
