ClassicVue Max Aluminum
Florida DBPR
Approved
Design Pressure +100/-145.8 psf
NFRC Certified
Made in Florida
PGT ClassicVue Max Aluminum Architectural AR7620A
PGT's premium non-impact aluminum line for Florida coastal non-HVHZ replacement projects.

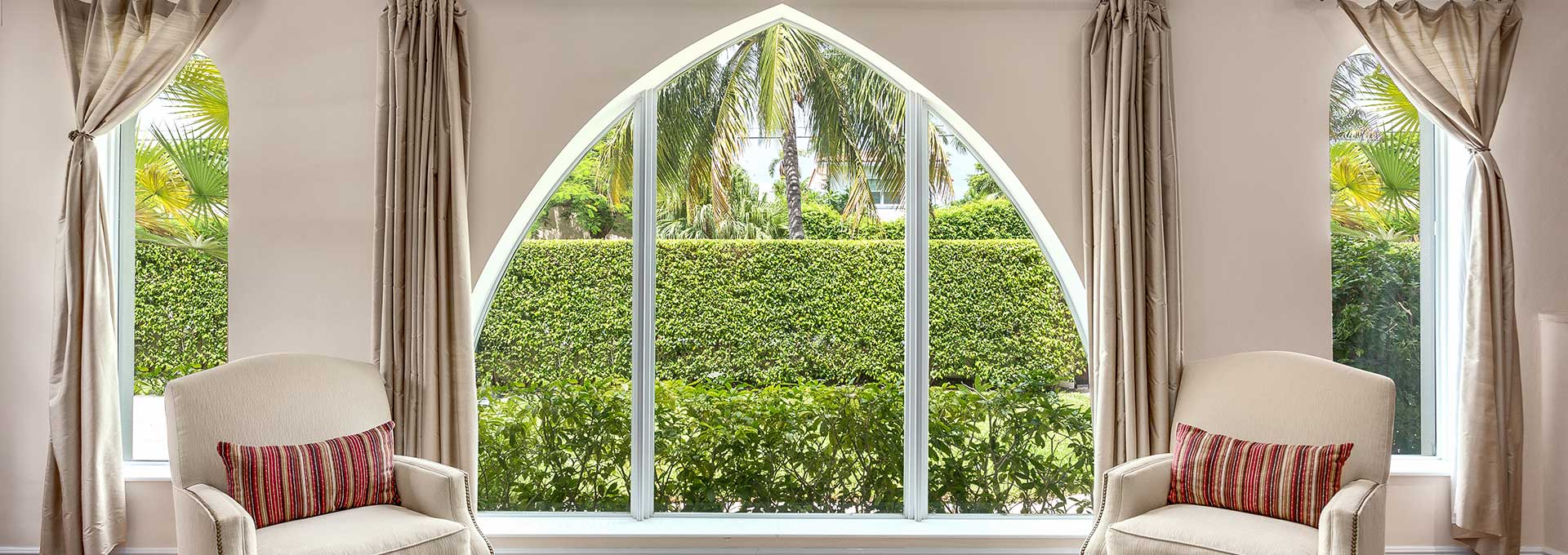

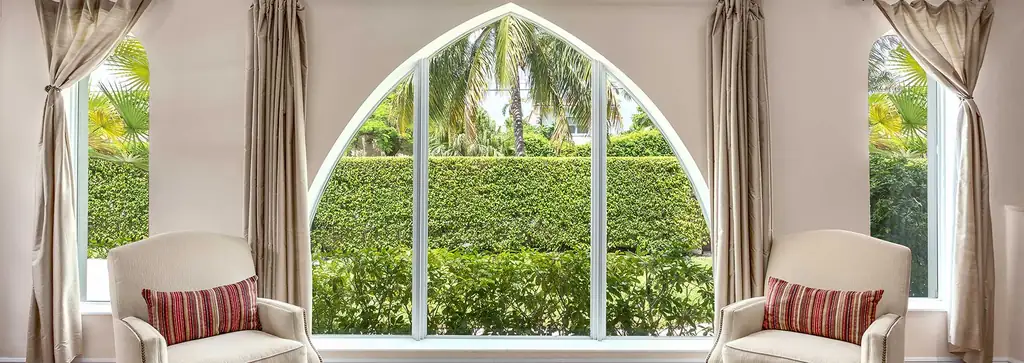

Premium non-impact aluminum architectural-shape fixed window in trapezoid, arch, half circle, and eyebrow configurations with mulling support.
Florida DBPR
Approved
Design Pressure +100/-145.8 psf
NFRC Certified
Made in Florida
Frame finish
White
Bronze
Black
Clear Anodize
Custom
Built for South Florida homes
The AR7620A is PGT's ClassicVue Max premium non-impact aluminum architectural-shape fixed window, available in trapezoid, arch, half circle, and eyebrow shapes with mulling support for multi-shape assemblies. The non-impact counterpart of the WinGuard AR7720A.
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Available Shapes
Representative shapes — architectural and fixed-lite units are made to order. Confirm exact shapes and sizes available for your opening at quote.
Grille Styles
1" Raised/Flat Grid9/16" Flat Grid-Between-the-Glass
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
51.21 sq ft
Design Pressure
+100/-145.8 psf
U-Factor
0.44–0.45
SHGC
0.15–0.22
Visible Trans.
0.14–0.46
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Fixed Lite Architectural Shape (O) | 10 x 17.75 in | 51.21 sq ft | +100/-145.8 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Bronze, Low-E, Air | 0.45 | 0.16 | 0.16 | 18 |
| Clear, Low-E, Air | 0.44 | 0.2 | 0.4 | 18 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- FL243.R30
Related Products
More models in the ClassicVue Max Aluminum.
PGT ClassicVue Max Aluminum Casement CA640A
Casement
See price & specs
PGT ClassicVue Max Aluminum Horizontal Roller HR7610A
Horizontal Roller
See price & specs
PGT ClassicVue Max Aluminum Casement Picture PW640A
Fixed Window
See price & specs
PGT ClassicVue Max Aluminum Picture PW7620A
Fixed Window
See price & specs
Comparable from Other Brands
Other architectural shape models Armor Pro installs.
Frequently Asked Questions
The AR7620A is PGT's ClassicVue Max aluminum architectural-shape fixed window, available in trapezoid, arch, half circle, and eyebrow configurations. It also supports mulling, so we can combine it with other units into a multi-shape assembly above doors or windows. We help match the shape and proportion to your opening so the accent looks intentional on the elevation.
No. The AR7620A is PGT's ClassicVue Max premium non-impact aluminum architectural shape, sold into Florida non-HVHZ counties where the building code does not require impact glazing. Its impact counterpart is the WinGuard AR7720A, which we can specify instead if your jurisdiction or project calls for impact glass. We'll confirm what your opening requires and which version fits before you order.
The AR7620A fixed architectural lite runs from a minimum of about 10 by 17.75 inches up to a maximum of roughly 51.21 square feet, with design pressures up to +100/-145.8 psf. Because it's a fixed shape, it's fabricated to your exact opening rather than off a stock size chart. We'll measure the opening and confirm the size and rating when we quote.
ClassicVue Max carries the same glass packages as PGT's WinGuard aluminum line, including EnergyShield, EnergyShield Max, and Solar Control Low-E2. For South Florida sun, a Solar Control Low-E2 or EnergyShield Max package helps cut solar heat gain on a fixed shape that's often in direct light. We'll walk you through the options and recommend the package that fits your exposure.
The AR7620A comes in PGT's standard aluminum finishes of White, Bronze, Black, and Clear Anodize, with custom colors available, and it uses a 2.75-inch frame depth. For grids you can choose a 1-inch raised or flat grid, or a 9/16-inch flat grille between the glass. We'll coordinate the finish and grid with your other ClassicVue Max windows so the architectural shape matches the rest of the elevation.
There's no flat price because the installed cost depends on the shape and size, the glass package and grid you choose, the frame finish, and the condition of the existing opening. Custom architectural shapes are fabricated to your opening, which factors into the quote. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the AR7620A for your project.
No — ClassicVue Max is a non-impact aluminum line, so it can't be installed in the High-Velocity Hurricane Zone of Miami-Dade and Broward, and it doesn't carry the Miami-Dade NOAs the impact lines do. It's built for Florida counties outside the HVHZ where the code does not require laminated impact glazing. Any opening that needs storm certification calls for WinGuard Aluminum instead, which is the impact line above it in the catalog.
ClassicVue Max is the premium non-impact aluminum tier, built to a coastal standard rather than a builder-basic one. It carries the same EnergyShield, EnergyShield Max, and Solar Control Low-E glass packages and the same full four-color aluminum palette as the flagship WinGuard Aluminum line, plus a Limited Lifetime Warranty. The aluminum construction is engineered to resist salt, heat, and moisture. It's the choice for a non-HVHZ home that still wants premium glass and finishes.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
