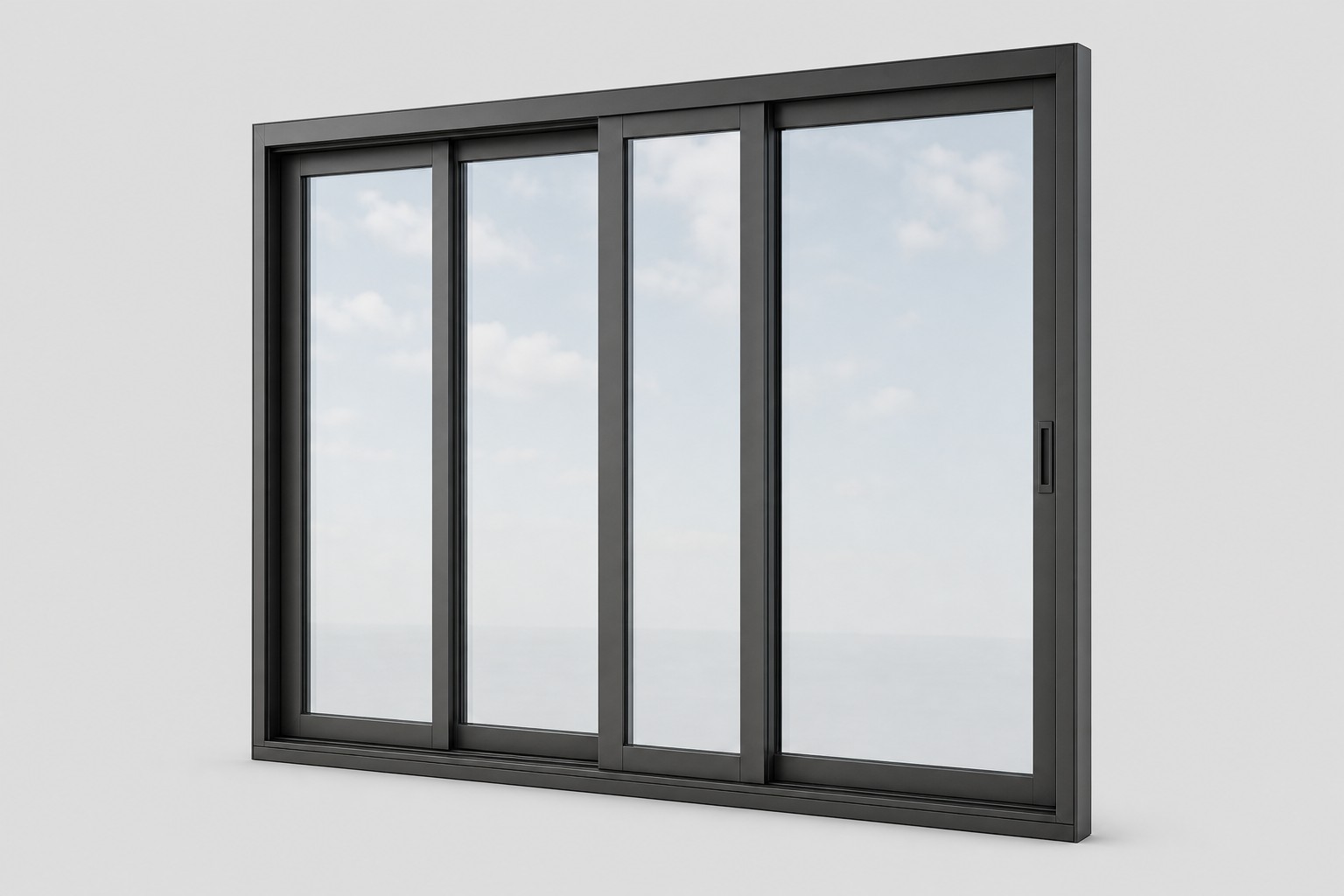

MG-1100 Multitrack Sliding Glass Door (3T / 6P)
Multitrack pocket sliding glass door stacking up to 6 panels across 3 tracks for indoor-outdoor lifestyle openings. Dual LMI+SMI, panels up to 60 by 120 inches.
Florida DBPR
Approved
Impact Rating LMI/SMI
Design Pressure +80/-100 psf
Energy
Made in Florida
Frame finish
Glass
Impact protection, built for South Florida
The MG-1100 is Mr Glass's multitrack sliding glass door, opening wider than a conventional SGD by stacking up to 6 panels across 3 tracks. The configuration is particularly suited to indoor- outdoor lifestyle openings where the wall pocket can fully accommodate the stacked panel set. Aluminum construction, dual LMI and SMI impact-rated, panel sizes up to 60 by 120 inches, 80 psf positive and 100 psf negative design pressure.
- Florida Building Code product-approved
- impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Max Size
60 x 120 in (per panel)
Design Pressure
+80/-100 psf
Impact Rating
LMI/SMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Impact Resistant Multitrack Sliding Glass Door (3 tracks / 6 panels) | 60 x 120 in (per panel) | +80/-100 psf |
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT |
|---|---|---|---|
| 9/16" Laminated Clear: 1/4" Clear HS + 0.09 PVB + 1/4" Clear HS | 1.097 | 0.515 | 0.604 |
| 9/16" Laminated Clear w/ SB70: 1/4" Clear (SB70 surf#2) HS + 0.09 PVB + 1/4" Clear HS | 1.071 | 0.239 | 0.424 |
| 9/16" Laminated Gray: 1/4" Gray HS + 0.09 PVB + 1/4" Clear HS | 1.097 | 0.391 | 0.303 |
| 1-3/16" Insulated Laminated Clear: 1/4" FT Clear + 3/8" Air + 1/4" Clear HS + 0.09 PVB + 3/16" Clear | 0.778 | 0.474 | 0.53 |
| 1-3/16" Insulated Laminated Clear/SB60: 1/4" Clear SB60 + 3/8" Air (alum spacer) + 1/4" Clear + 0.090 PVB + 1/4" Clear | 0.672 | 0.288 | 0.474 |
| 1-3/16" Insulated Laminated Gray: 1/4" FT Gray + 3/8" Air + 1/4" Clear HS + 0.09 PVB + 3/16" Clear | 0.775 | 0.317 | 0.265 |
| 1-3/16" Insul Laminated w/ SB70: 1/4" Clear (SB70 #2) + 3/8" Air (alum spacer) + 1/4" Clear HS + 0.09 PVB + 1/4" Clear HS | 0.676 | 0.214 | 0.44 |
Performance Certifications
Energy-performance data on file (manufacturer-published; not third-party certified).
- FL25959.R6
Options
Ready to install the MG-1100 Multitrack Sliding Glass Door (3T / 6P)?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other sliding glass door models Armor Pro installs.
PGT Custom Windows & Doors
PGT WinGuard Aluminum SGD770A Sliding Glass Door
See price & specs
ES Windows
ES Windows Prestige ES-45T Sliding Glass Door (TB)
See price & specs
Eastern Architectural Systems
EAS 623 Bertha Vinyl Impact SGD
See price & specs
ECO Window Systems
Eco-Guard Sliding Glass Door Series 700
See price & specs
Frequently Asked Questions
The MG-1100 is a multitrack pocket sliding glass door that stacks up to 6 panels across 3 tracks, so it opens far wider than a conventional two- or three-panel slider. We install it most often on indoor-outdoor lifestyle openings where the wall has a pocket that can fully absorb the stacked panels. It's an aluminum-framed door built for large openings while still carrying impact protection.
Yes. The MG-1100 is dual LMI/SMI impact-rated, meaning it passes both the large- and small-missile impact tests required in the High-Velocity Hurricane Zone. It carries Florida Product Approval FL25959.R6. We'll confirm the exact approval applicable to your opening at the time of quote.
Each panel on the MG-1100 can be up to 60 inches wide by 120 inches tall, and the system stacks up to 6 panels across 3 tracks for very wide openings. The door is rated to +80 psf positive and -100 psf negative design pressure. We confirm the design pressure your specific opening needs based on its size and location before we order.
The MG-1100 comes with a 9/16-inch laminated impact glass standard (U-factor 1.097, SHGC 0.515), with Low-E options like Solarban SB70 that drop the SHGC to around 0.239 for better heat control. There's also a 1-3/16-inch insulated laminated upgrade that improves the U-factor down to roughly 0.672-0.778 depending on the Low-E coating. We'll help you match the glass package to your sun exposure and energy goals.
The frame uses a powder-coated aluminum finish, with AAMA 2604 standard (5-year warranty) or an upgraded AAMA 2605 finish (10-year warranty). Glass tints include Clear, Gray, Bronze, Solex Green, and Solargray, plus Low-E options (Solarban SB70/SB70XL/SB60) and a privacy white/translucent interlayer. We'll go over the finish and tint choices with you so the door fits the look of your home.
The installed price of an MG-1100 depends on the size of the opening, the panel configuration (how many panels and tracks), the glass package you choose, and the condition of the existing opening. Because it's a large multitrack pocket door, the prep and structural anchoring matter to the final number. Armor Pro provides a free estimate so you get an exact installed price for your project.
Mr Glass runs a deep catalog, and we install across most of it. On the residential side that means impact windows in single-hung, horizontal-roller (sliding), fixed picture, and casement and awning styles, plus a full range of doors: entry and outswing doors, architectural pivot doors, and sliding glass doors including the multitrack pocket slider. They also build a commercial line of impact and non-impact storefronts, window walls, curtain walls, glass railings, and aluminum louvers that we handle on light-commercial projects. We help you match the right Mr Glass product to each opening and pull the matching approval for your county.
Most of the line is, but it depends on the specific product. Mr Glass's premium residential windows are dual-certified to both Large Missile Impact (LMI) and Small Missile Impact (SMI), which covers them for high-rise and coastal work anywhere in the High-Velocity Hurricane Zone of Miami-Dade and Broward. Their value-tier windows and all of their doors carry the impact certification needed for the HVHZ as well, and a couple of commercial products (the MG-275 door and MG-4500 storefront) are non-impact and are not used in the wind-borne-debris zone. We confirm the exact product, rating, and approval for your address before we quote and permit.
A sliding glass door (SGD) glides on a bottom track and stacks panels to one side, giving a wide glass opening to a patio or lanai. The impact version uses laminated glass and a heavy reinforced frame tested to the HVHZ standard, so it protects the largest opening in most homes without needing shutters.
