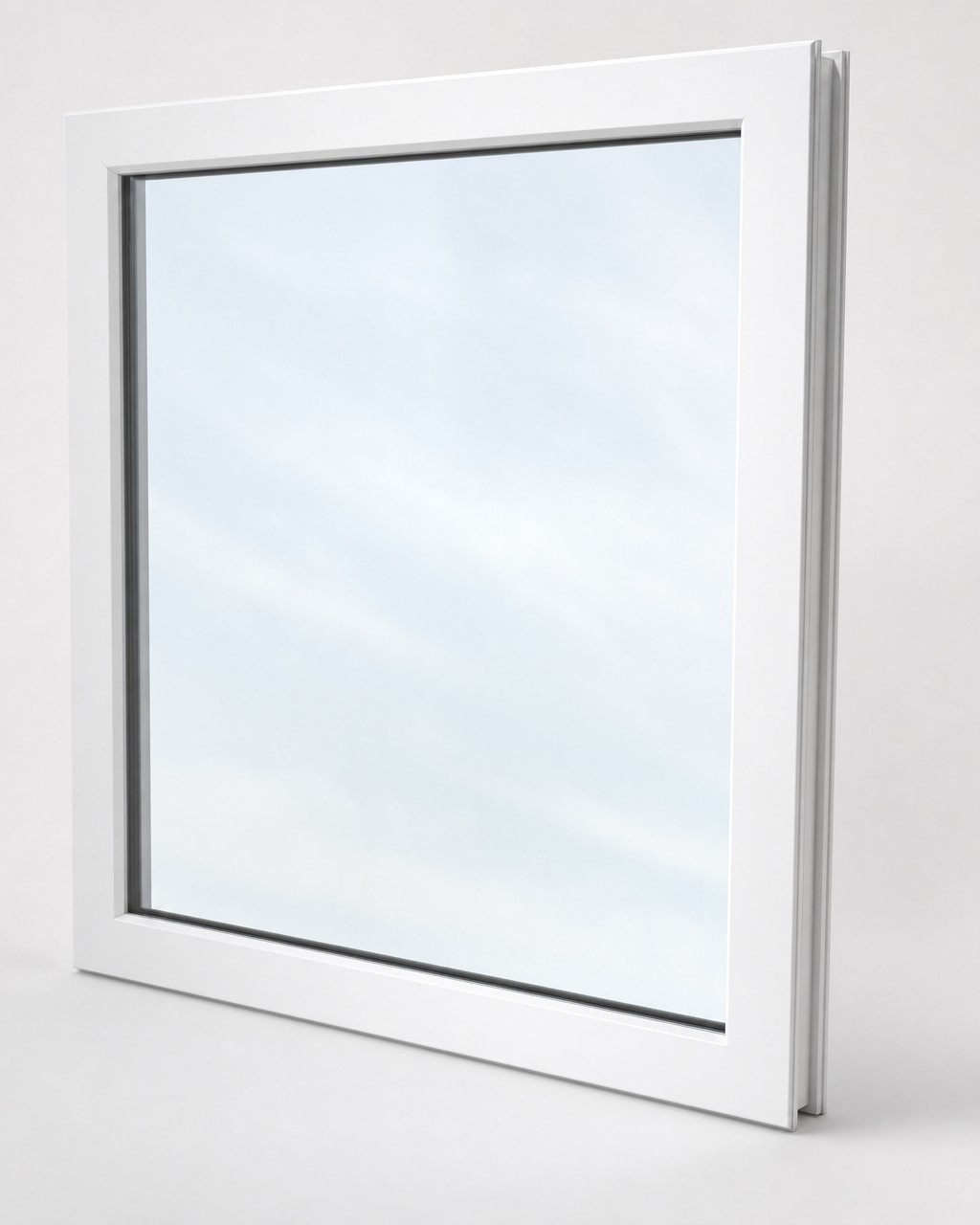

Eurocraft System 76 AM Fixed Window (uPVC)
uPVC impact fixed window glazed with Trosifol by Kuraray PVB and SGP laminated interlayers. FL #27614 at 120 psf, LMI+SMI for HVHZ.
Florida DBPR
Approved
Impact Rating LMI/SMI
Design Pressure +120/-120 psf
Energy
Made in Florida
Frame finish
Impact protection, built for South Florida
The System 76 AM is Eurocraft's uPVC fixed window on a 3-inch frame depth, glazed with Trosifol by Kuraray PVB and SGP laminated interlayers for premium impact-glass performance. Florida Product Approval (FL #27614) certifies it at 120 psf design pressure with LMI and SMI impact ratings.
- Florida Building Code product-approved
- uPVC frame engineered for strength and durability
- impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
uPVC
Max Size
48 x 120 in
Design Pressure
+120/-120 psf
U-Factor
0.21–0.23
Impact Rating
LMI/SMI
Frame Depth
3 in
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Fixed (single lite) | 48 x 120 in | +120/-120 psf |
| Fixed (twin lite) | 96.875 x 120 in | +75/-75 psf |
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| System 76 standard double/triple glazing | 0.21 | — |
Performance Certifications
Energy-performance data on file (manufacturer-published; not third-party certified).
- FL27614
Comparable from Other Brands
Other fixed window models Armor Pro installs.
Air Master
Air Master Picture Window
See price & specs
Eastern Architectural Systems
EAS 176 Bertha Picture Impact Vinyl
See price & specs
Pella
Pella Lifestyle Fixed / Picture / Specialty Shapes
See price & specs
PGT Custom Windows & Doors
PGT WinGuard Aluminum Casement Picture PW740A
See price & specs
Frequently Asked Questions
The System 76 AM is Eurocraft's uPVC impact fixed (non-operating) window, built on a 3-inch frame and glazed with Trosifol by Kuraray PVB and SGP laminated interlayers. Because it doesn't open, it's ideal for picture windows, transoms, and fixed lites where you want maximum glass and an unobstructed view with the thermal benefits of uPVC. We install it where homeowners want a large, clean fixed opening with full impact protection.
Yes. The System 76 AM carries Florida Product Approval FL #27614 with LMI and SMI impact ratings, certified to 120 psf design pressure, which qualifies it for South Florida's High Velocity Hurricane Zone. The Trosifol by Kuraray laminated glass is designed to take a windborne-debris hit and stay in the frame. We'll confirm the current approval and the correct rating for your address when we quote.
The System 76 AM comes as a single lite up to 48 by 120 inches rated at +120/-120 psf, and as a twin-lite configuration up to about 96.875 by 120 inches rated at +75/-75 psf. The single-lite version carries the higher design pressure, so we'll match the configuration to your opening size and wind requirements. We'll verify the exact dimensions and design pressure when we measure and quote.
The standard System 76 double or triple glazing delivers a U-value around 0.21, and with Eurocraft's proEnergyTec profiles that improves to as low as 0.14 for Passivhaus-level performance. The insulating uPVC frame plus laminated glass helps reduce cooling loads and improve comfort near large fixed lites in South Florida. We'll help you choose the right glazing package for each elevation at the estimate.
The System 76 AM comes standard in white, with woodgrain and solid finishes available including Golden Oak, Midnight Blackbrown 8518 Smooth, Ceylon C-34 N Smooth, Rustic Oak 1, Mahogany, Anthracite Grey 7016 Smooth 2, and Silver D Smooth. These let you match the fixed window to the operable units around it on either the interior or exterior face. We'll review the finish options with you during the consultation.
We don't quote a flat price because the installed cost of a System 76 AM depends on whether it's a single or twin lite, the overall size, the glass package you choose, the frame finish, and the condition of the existing opening. Larger lites and proEnergyTec glazing add to the cost, while standard sizes keep it down. Armor Pro provides a free, in-person estimate so you get an accurate number for your specific project.
Eurocraft USA is an independent, family-owned manufacturer based in the Miami area, run by the Mujica family with more than 30 years building impact windows and doors. Unlike many Florida brands that are owned by larger national groups, Eurocraft is its own company. It builds an aluminum impact line and a European-style uPVC line, all certified for Florida. Armor Pro installs and services Eurocraft across Miami-Dade, Broward, and Palm Beach.
Eurocraft's aluminum side is its EC series, covering the standard Florida operation styles: fixed and architectural-shape windows (EC-100), single hung (EC-200), horizontal sliders (EC-300), casement and awning (EC-700), commercial storefront (EC-500), plus aluminum sliding glass doors (EC-400 and EC-450), a commercial French door (EC-600), and an outswing entry door (EC-650). Alongside that it builds a European-style uPVC line, a fixed window, a tilt-and-turn window, a French/swing door, and the Premidoor 88 lift-and-slide. We help you pick the series that fits each opening rather than steering you to one product.
A fixed (picture) window does not open — it is a sealed pane that maximizes the view and daylight. With no moving parts it is the most weather-tight and energy-efficient style, and it carries the highest design pressures, which is why it is often used for large feature openings and architectural shapes.
