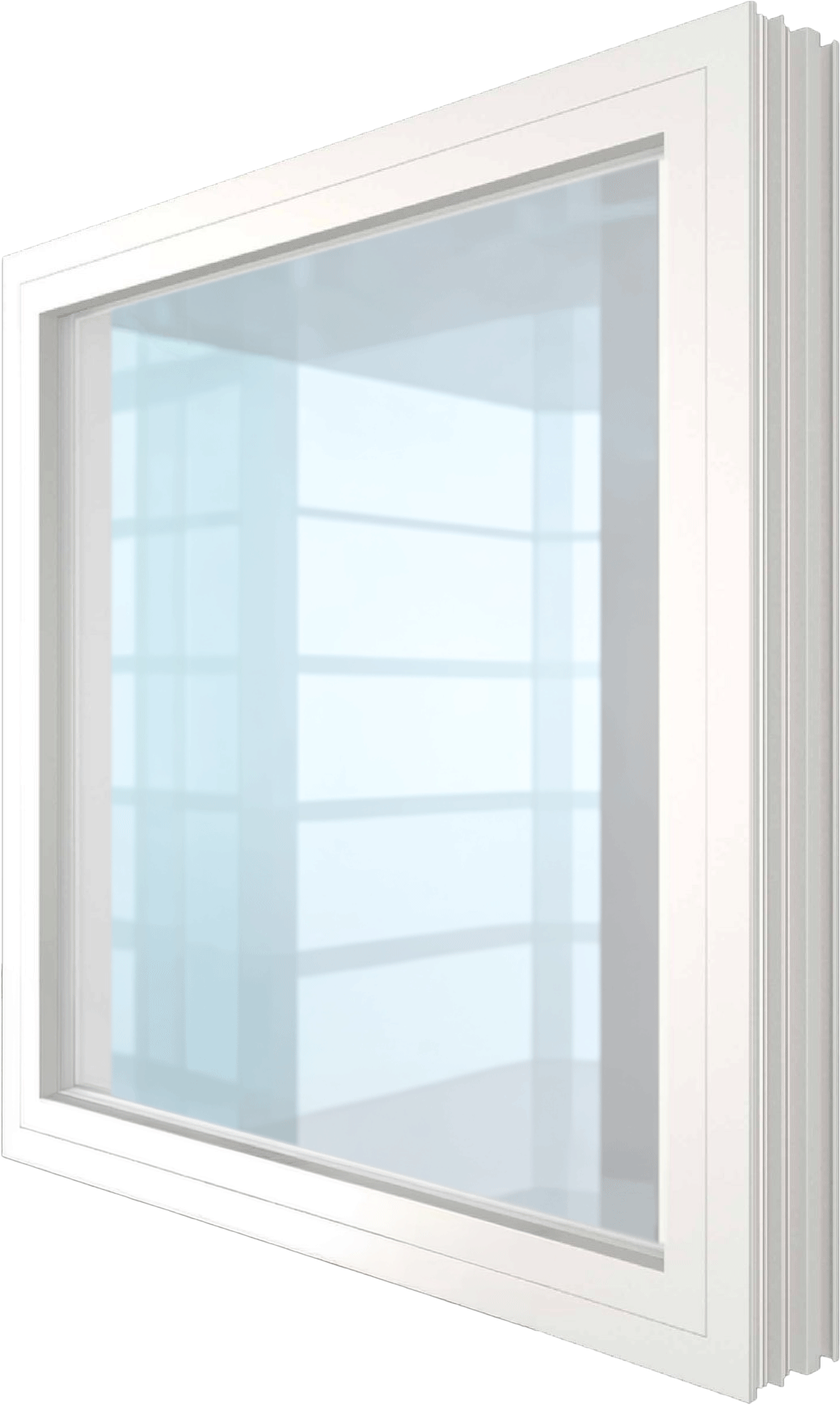

Eurocraft EC-100 Fixed Window & Shapes
Aluminum impact fixed window and architectural shape on a 3-inch frame with concealed mullion. FL #30977 at 140 psf, LMI+SMI for HVHZ.
Florida DBPR
Approved
Impact Rating LMI/SMI
Design Pressure +180/-180 psf
NFRC Certified
Glazing Glazing Lami
Made in Florida
Frame finish
Glass
Impact protection, built for South Florida
The EC-100 is Eurocraft's aluminum fixed-window and architectural- shape product, built on a 3-inch frame depth with a concealed mullion system that eliminates visible clips. Florida Product Approval certified (FL #30977) at a 140 psf design pressure with LMI and SMI impact ratings, suitable for South Florida HVHZ installations.
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
100 x 120 in
Design Pressure
+180/-180 psf
U-Factor
0.68–1.06
SHGC
0.23–0.67
Visible Trans.
0.26–0.74
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Fixed (single lite) | 100 x 120 in | +180/-180 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| 7/16" laminated (PVB) | 1.06 | 0.414 | 0.476 | 16 |
| 7/16" laminated (SG) | 1.06 | 0.414 | 0.476 | 16 |
| 9/16" laminated (PVB) | 1.06 | 0.414 | 0.476 | 16 |
| 9/16" laminated (SG) | 1.06 | 0.414 | 0.476 | 16 |
| 1-1/16" insulated laminated | 0.68 | 0.61 | 0.67 | 23 |
Performance Certifications
- FL30977
Options
Ready to install the Eurocraft EC-100 Fixed Window & Shapes?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other fixed window models Armor Pro installs.
Air Master
Air Master Picture Window
See price & specs
Eastern Architectural Systems
EAS 176 Bertha Picture Impact Vinyl
See price & specs
Pella
Pella Lifestyle Fixed / Picture / Specialty Shapes
See price & specs
PGT Custom Windows & Doors
PGT WinGuard Aluminum Casement Picture PW740A
See price & specs
Frequently Asked Questions
The EC-100 is Eurocraft's aluminum impact fixed window and architectural-shape product, built on a 3-inch frame with a concealed mullion system that eliminates visible clips. Because it's a fixed (non-operating) lite, it's ideal for picture windows, transoms, and custom architectural shapes where you want maximum glass and an unobstructed view. We install it where homeowners want a large, clean fixed opening with full impact protection.
Yes. The EC-100 carries Florida Product Approval FL #30977 with LMI and SMI impact ratings, which makes it suitable for South Florida's High Velocity Hurricane Zone covering Miami-Dade and Broward. The laminated impact glass is designed to take a windborne-debris hit and stay in the frame. We'll confirm the current approval and the right rating for your address at the time we quote.
The EC-100 fixed single-lite configuration can be built up to a maximum of 100 by 120 inches and carries a design pressure of +180/-180 psf at that configuration, with the product approval rated to 140 psf. That high DP makes it a strong choice for large openings in demanding wind zones. We'll verify the exact size and design pressure your opening requires when we measure and quote.
The EC-100 is available with 7/16-inch and 9/16-inch laminated glass (PVB or SG interlayer) at a U-factor of 1.06, SHGC 0.67, VT 0.74, and CR 16. For better energy performance, a 1-1/16-inch insulated laminated unit improves those numbers to U 0.68, SHGC 0.61, VT 0.67, and CR 23, and a high-performance low-e coating is available. We'll help you match the glass package to each elevation when we put together your estimate.
The EC-100 comes in three frame finishes: white as standard, plus bronze and clear anodized. For the glass, tint options include clear (standard), green, gray, bronze, azure blue, and white for privacy. We'll recommend the finish and tint that suit your home and the room's exposure during the consultation.
We don't quote a flat price because the installed cost of an EC-100 depends on the window or shape size, the glass package you choose, the frame finish, and the condition of the existing opening. Larger fixed lites and insulated laminated glass add to the cost, while standard sizes and finishes keep it down. Armor Pro provides a free, in-person estimate so you get an accurate number for your specific project.
Eurocraft USA is an independent, family-owned manufacturer based in the Miami area, run by the Mujica family with more than 30 years building impact windows and doors. Unlike many Florida brands that are owned by larger national groups, Eurocraft is its own company. It builds an aluminum impact line and a European-style uPVC line, all certified for Florida. Armor Pro installs and services Eurocraft across Miami-Dade, Broward, and Palm Beach.
Eurocraft's aluminum side is its EC series, covering the standard Florida operation styles: fixed and architectural-shape windows (EC-100), single hung (EC-200), horizontal sliders (EC-300), casement and awning (EC-700), commercial storefront (EC-500), plus aluminum sliding glass doors (EC-400 and EC-450), a commercial French door (EC-600), and an outswing entry door (EC-650). Alongside that it builds a European-style uPVC line, a fixed window, a tilt-and-turn window, a French/swing door, and the Premidoor 88 lift-and-slide. We help you pick the series that fits each opening rather than steering you to one product.
A fixed (picture) window does not open — it is a sealed pane that maximizes the view and daylight. With no moving parts it is the most weather-tight and energy-efficient style, and it carries the highest design pressures, which is why it is often used for large feature openings and architectural shapes.
