Prestige Series
Impact Rating LMI/SMI
Design Pressure +100/-120 psf
Energy

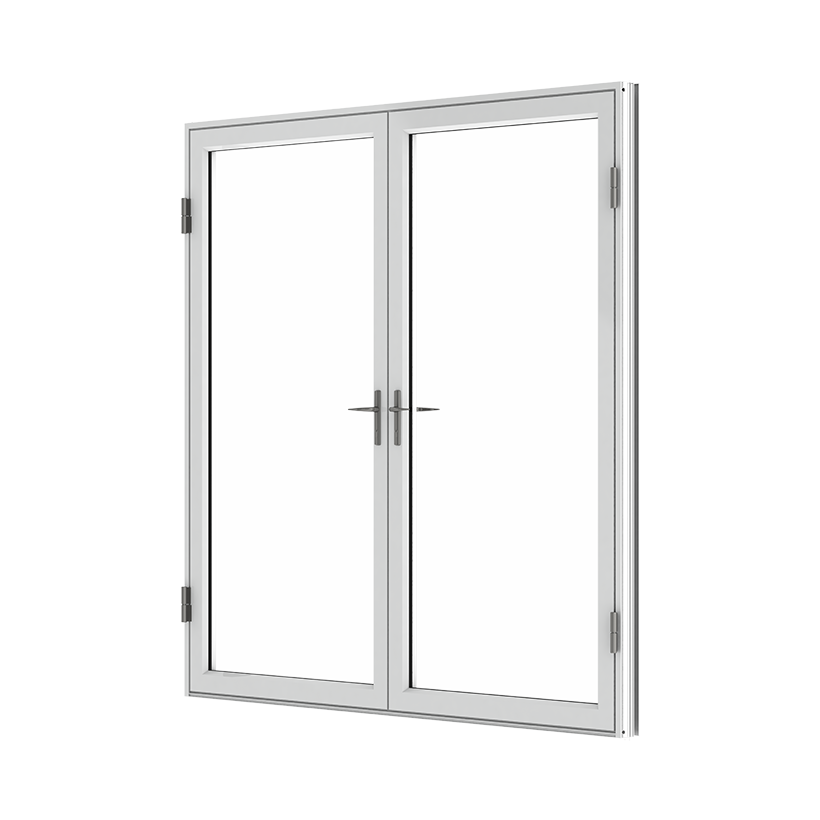

ES Windows Prestige ES-46T Swing Door (TB)
ES Windows's premium architectural line, including the award-winning Pivot Door.
Thermally broken aluminum swing door in single-leaf and double-leaf on a 4.5-inch frame. Multi-point lock, optional ADA threshold and high bottom rail. Dual LMI+SMI.
Impact Rating LMI/SMI
Design Pressure +100/-120 psf
Energy
Impact protection, built for South Florida
The ES-46T is the Prestige thermally broken aluminum swing door in single-leaf and double-leaf configurations on a 4.5-inch frame depth. Multi-point locking hardware with optional ADA threshold and high bottom rail. Dual LMI and SMI impact certified at 100 psf positive and 120 psf negative design pressure for HVHZ installations.
- Aluminum (thermally broken) frame engineered for strength and durability
- impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum (thermally broken)
Max Size
40 x 98 in (per panel)
Design Pressure
+100/-120 psf
U-Factor
0.44
SHGC
0.21
Impact Rating
LMI/SMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Swing door | 40 x 98 in (per panel) | +100/-120 psf |
Performance Certifications
Energy-performance data on file (manufacturer-published; not third-party certified).
Options
Related Products
More models in the Prestige Series.
ES Windows Prestige ES-45T Sliding Glass Door (TB)
Sliding Glass Door
See price & specs

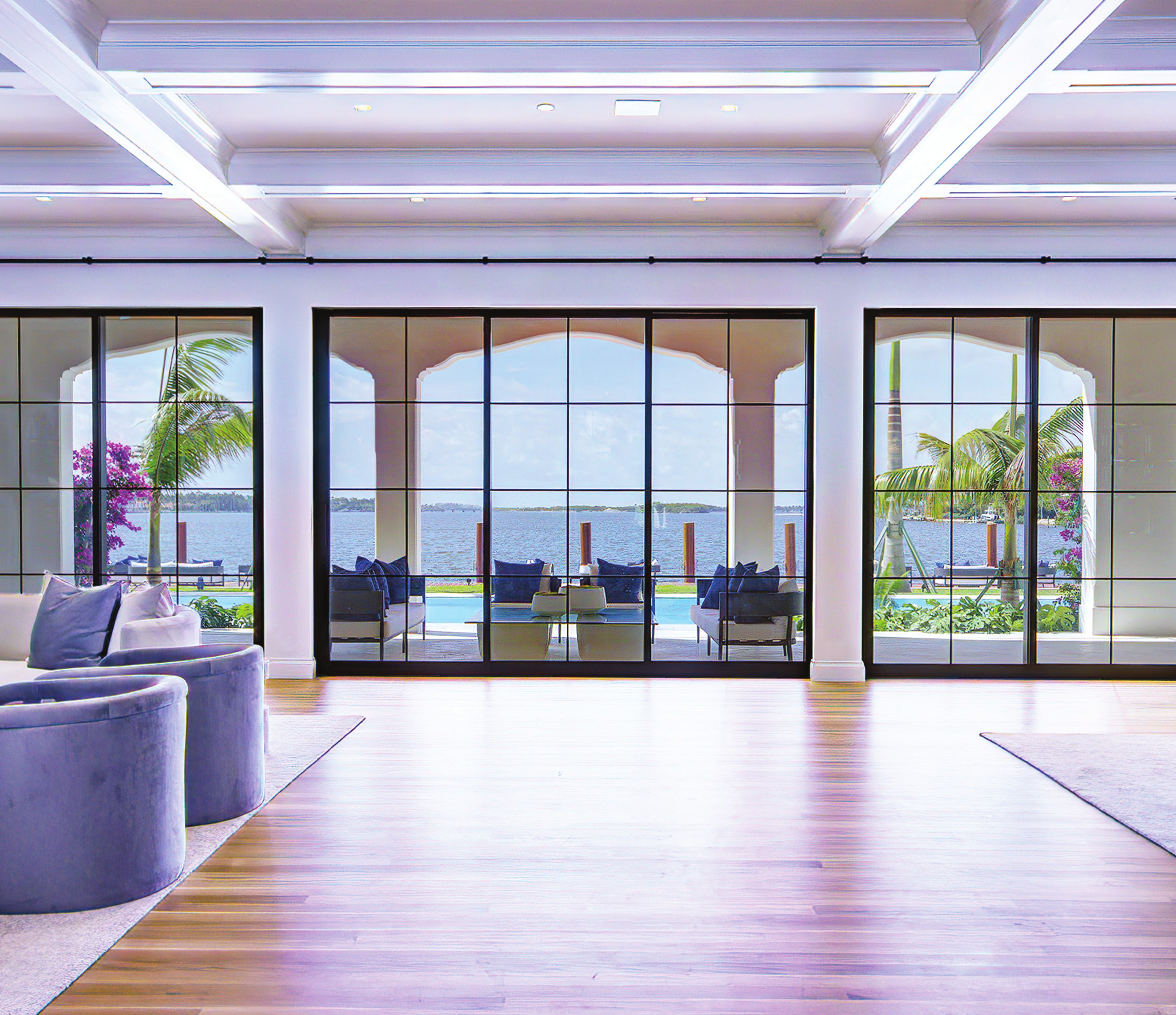

ES Windows Prestige ES-P300 Sliding (TB Retrofit)
Horizontal Roller
See price & specs

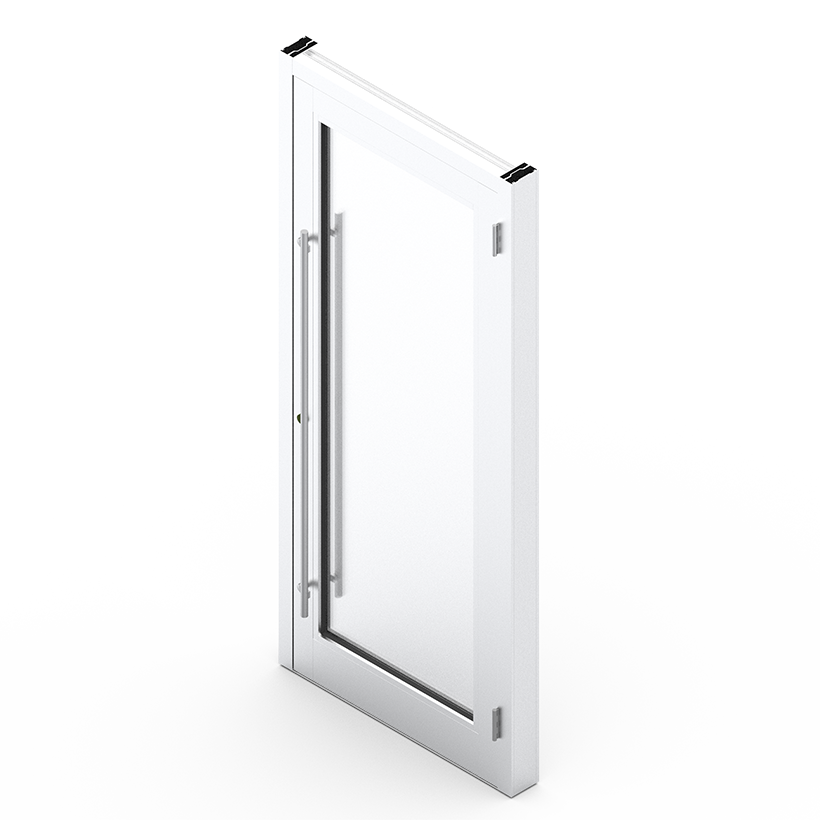

ES Windows Prestige ES-9000 Impact Entry Door
Entry Door
See price & specs

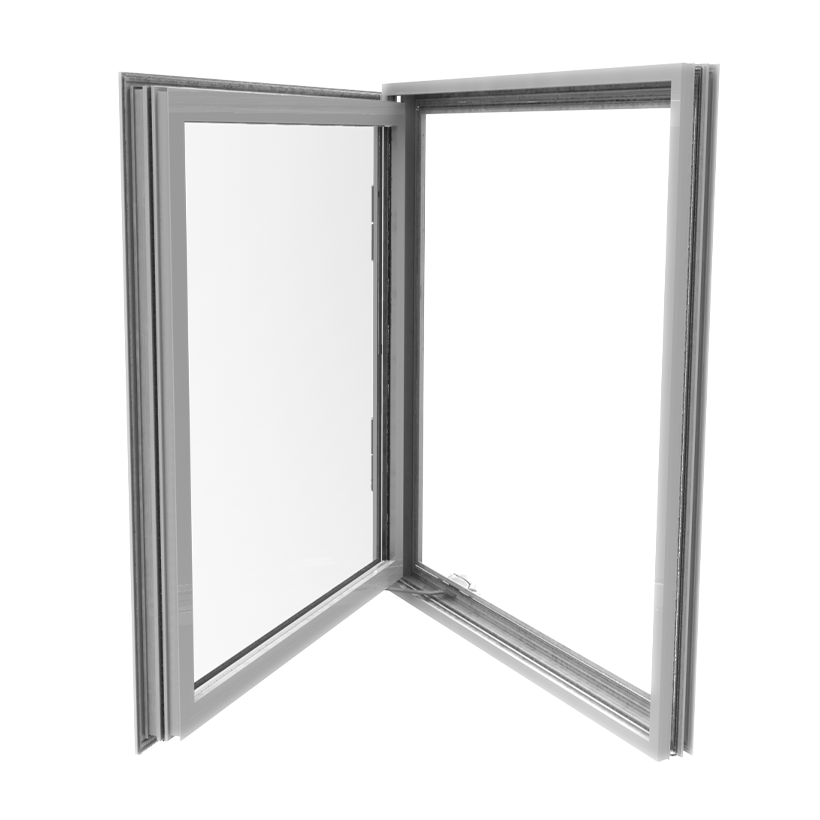

ES Windows Prestige ES-P252 Casement/Awning/Fixed (TB)
Casement
See price & specs
Ready to install the ES Windows Prestige ES-46T Swing Door (TB)?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other entry door models Armor Pro installs.
Frequently Asked Questions
The ES-46T is the Prestige line's thermally broken aluminum swing door, offered in single-leaf and double-leaf configurations on a 4.5-inch frame. The thermal break improves energy performance, which is valuable in South Florida's heat, and it pairs with the companion ES-45T slider in combined sliding-and-swing assemblies. We install it as the architectural-grade impact swing door at the top of the ES Windows range.
Yes. The ES-46T carries dual Large Missile Impact (LMI) and Small Missile Impact (SMI) certification and is HVHZ-approved for the High-Velocity Hurricane Zone covering Miami-Dade and Broward counties. The SMI rating in particular supports high-rise applications. As your installer, we confirm the current approval is on file and matches your jurisdiction at the time of your permit.
The ES-46T installs to a maximum of 40 by 98 inches and is rated to a design pressure of +100/-120 psf, with a water resistance of 15 psf. Design pressure is the wind load the door is built to resist, and the rating your opening must meet depends on its size and wind exposure. We confirm the exact design pressure your specific door needs at quote.
The ES-46T uses a 1-3/16-inch insulating laminated glass unit, available in both LMI and SMI impact-rated make-ups. The thermally broken assembly is rated at a U-factor of 0.44 and an SHGC of 0.21, which helps limit heat gain in our climate. We'll confirm the glass package that best fits your home's energy goals at quote.
The ES-46T is available in anodized, painted, and wood-grain finishes, and comes in X, OXXO, and O/XX configurations. Hardware options include a two-point or three-point lock handle, an optional strap anchor, and an optional ADA threshold and high bottom rail; the glass can also be ordered with painted, serigraphy, or digital-printed finishes. We'll go over these choices so the door matches your project.
Installed pricing for the ES-46T depends on whether it's single- or double-leaf, the size, the glass package, the finish and hardware options, and the condition of the existing opening, so there is no single price. The Prestige line is the premium architectural-grade tier, and the ES-46T's thermal break, dual LMI/SMI rating, and wood-grain options sit at the top of the ES Windows range. As your installer, Armor Pro handles measurement, permitting, and installation, and we'll give you a free, no-obligation estimate.
Yes. Prestige is ES Windows's premium aluminum impact line and carries Miami-Dade NOAs across its windows and doors for HVHZ use in Miami-Dade and Broward, including thermally broken variants. Exact design pressures depend on the product and opening size, which we confirm against your address before ordering.
Prestige is built around large-format and statement openings: the PSD5030 pivot door (a 2024 Glass Magazine award winner), the FX3050 folding door with panels up to roughly 8 by 16 feet, the 16-panel BF5010T bi-fold, and impact sliding glass doors. These are the openings homeowners want to disappear, and Prestige is engineered to make them disappear while keeping an HVHZ impact rating. We size and configure the door system to your opening during the consultation.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
