ES Windows NP-200 Projected Window
ES Windows's commercial and architectural glazing — storefront, curtain wall, window wall, and high-pressure impact commercial systems.

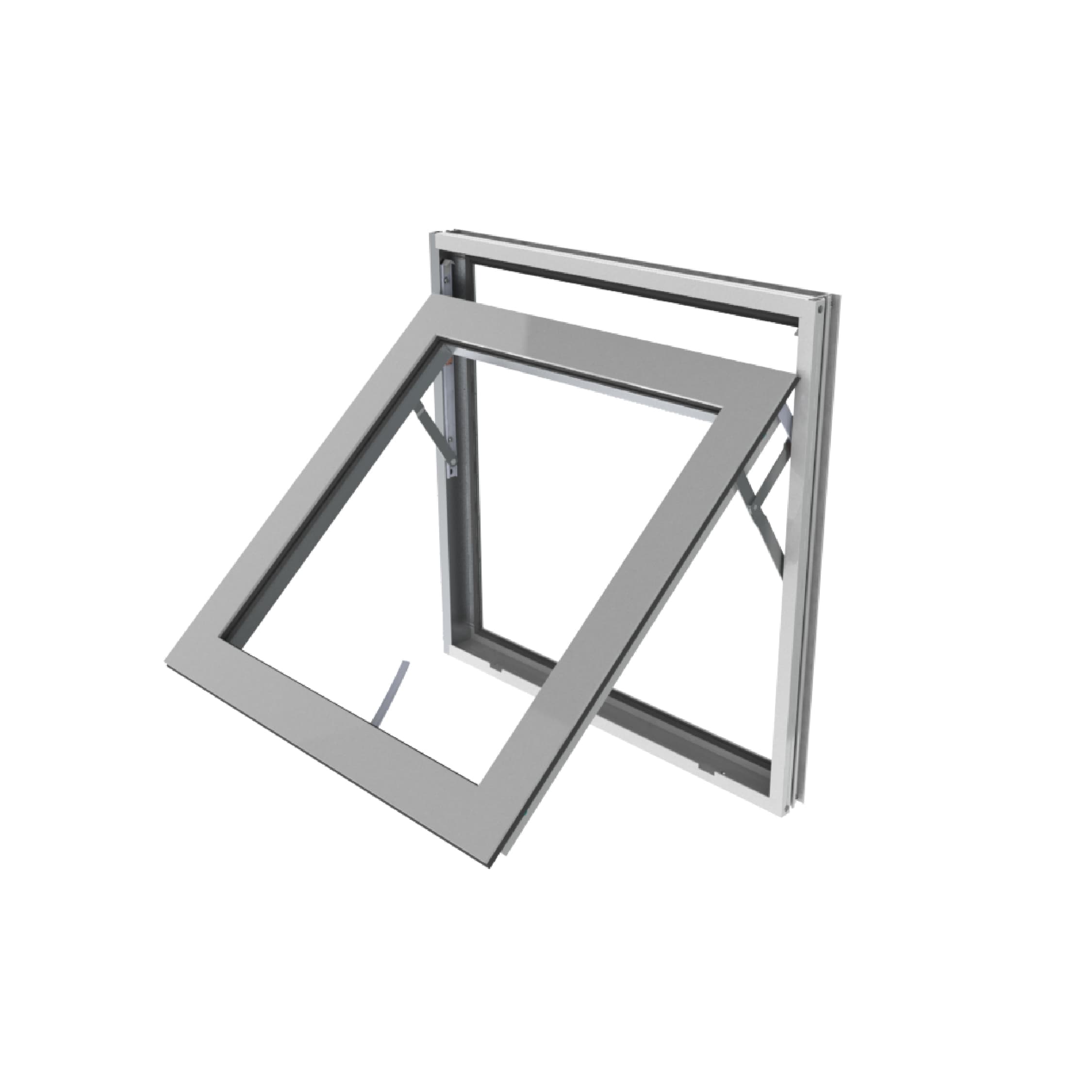

Projected/fixed window on a 2 1/2″ aluminum frame with a 2 3/4″ sightline, offering awning, casement, and fixed configurations and an optional thermal break.
Florida DBPR
Approved
NFRC Certified
Built for South Florida homes
The NP-200 is a projected and fixed window on a 2 1/2″ aluminum frame with a 2 3/4″ sightline, available in awning, casement, and fixed configurations. It accepts monolithic glass 1/8″–1/4″, laminated 3/8″–1/2″, and insulated 11/16″–1″, with an optional pour-and-debridge thermal break. The system ships pre-assembled and pre-glazed with heavy-duty stainless hinges, and certifications may vary by configuration. No design pressure, impact rating, or Florida approval is stated for this LATAM architectural system.
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
U-Factor
0.57–1.09
SHGC
0.17–0.6
Visible Trans.
0–0.66
Frame Depth
2.5 in
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Bronze | 0.923 | 0.473 | 0.447 | 14 |
| Clear | 0.918 | 0.518 | 0.625 | 14 |
| Green | 0.923 | 0.47 | 0.59 | 14 |
| Gray | 0.911 | 0.407 | 0.33 | 14 |
| Clear, Air | 0.63 | 0.23 | 0.49 | 15 |
| Bronze, Low-E, Air | 0.63 | 0.18 | 0.227 | 15 |
| Clear, Low-E, Air | 0.618 | 0.244 | 0.478 | 15 |
| Green, Low-E, Air | 0.63 | 0.24 | — | 15 |
| Gray, Low-E, Air | 0.63 | 0.197 | 0.28 | 15 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- FL28670.R2
Related Products
More models in the Commercial & Architectural Series.
Frequently Asked Questions
The NP-200 is a projected and fixed aluminum window built on a 2-1/2 inch frame with a slim 2-3/4 inch sightline, offered in awning, casement, and fixed configurations. It is part of ES Windows's Commercial & Architectural Series and is aimed at commercial and mid-rise architectural glazing rather than typical residential replacement. We install it where an operable architectural awning or casement window with a clean, narrow sightline is wanted on a commercial building.
No. The NP-200 is a Latin-American architectural framing system and the profile lists it as non-impact, with no design pressure, impact rating, or Florida approval stated. That means it is not HVHZ-approved for the Miami-Dade and Broward High-Velocity Hurricane Zone. If your project needs hurricane-rated operable architectural windows, we will steer you to ES Windows's U.S.-market HVHZ impact systems and confirm the right product at quote.
The NP-200 is designed to accept monolithic glass from 1/8 inch to 1/4 inch, laminated glass from 3/8 inch to 1/2 inch, and insulated units from 11/16 inch to 1 inch. An optional pour-and-debridge thermal break is also available to improve thermal performance. We confirm the glass make-up your project requires when we scope the job, since the system itself is non-impact and certifications vary by configuration.
A thermal break is optional on the NP-200, using a pour-and-debridge process within the 2-1/2 inch aluminum frame. Aluminum conducts heat, so the thermal break helps reduce heat transfer through the frame on conditioned buildings. We will discuss whether the thermal break option makes sense for your project during the estimate.
The NP-200 ships pre-assembled and pre-glazed from the factory, with heavy-duty stainless-steel hinges already fitted to the operable awning and casement sashes. The slim 2-3/4 inch sightline keeps the visible framing minimal once installed. As your installer, Armor Pro handles delivery coordination, fitting into the opening, and finishing for your project.
There is no single price for the NP-200 because installed cost depends on the size and quantity of units, the glass package and whether you add the thermal break, the configuration (awning, casement, or fixed), and the condition of each opening. Because this is a commercial architectural system, the building and permitting requirements also factor in. Contact Armor Pro for a free, no-obligation estimate and we will measure and quote your project.
This is ES Windows's house-brand catalog for commercial, condo, and mid- to high-rise architectural work, distinct from the residential tier lines. It covers aluminum storefront, stick and structural-silicone-glazed curtain wall, pre-glazed impact window wall, project-in and project-out operable windows, and commercial sliding and lift-slide doors. We reference it for light-commercial and architectural-spec projects rather than standard home replacement.
The U.S.-market impact systems are the ones that carry real HVHZ ratings: the ES-8860 window wall is tested to plus and minus 150 psf, the ES-6000/6100 sliding door reaches plus 120 / minus 135 psf with multiple Miami-Dade NOAs, and the ES-7500/7600 window wall and several others carry large- and small-missile certification. Some of the metric storefront and curtain-wall framing systems are Latin-American architectural products without Florida approval, so we verify approval status before specifying any of them on a Florida job.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
