ES Windows ES-8860 Window Wall
ES Windows's commercial and architectural glazing — storefront, curtain wall, window wall, and high-pressure impact commercial systems.
A 7" hurricane-rated window-wall system with the highest design load in the architectural line at +150/-150 psf.
Design Pressure +90/-90 psf
Energy
Built for South Florida homes

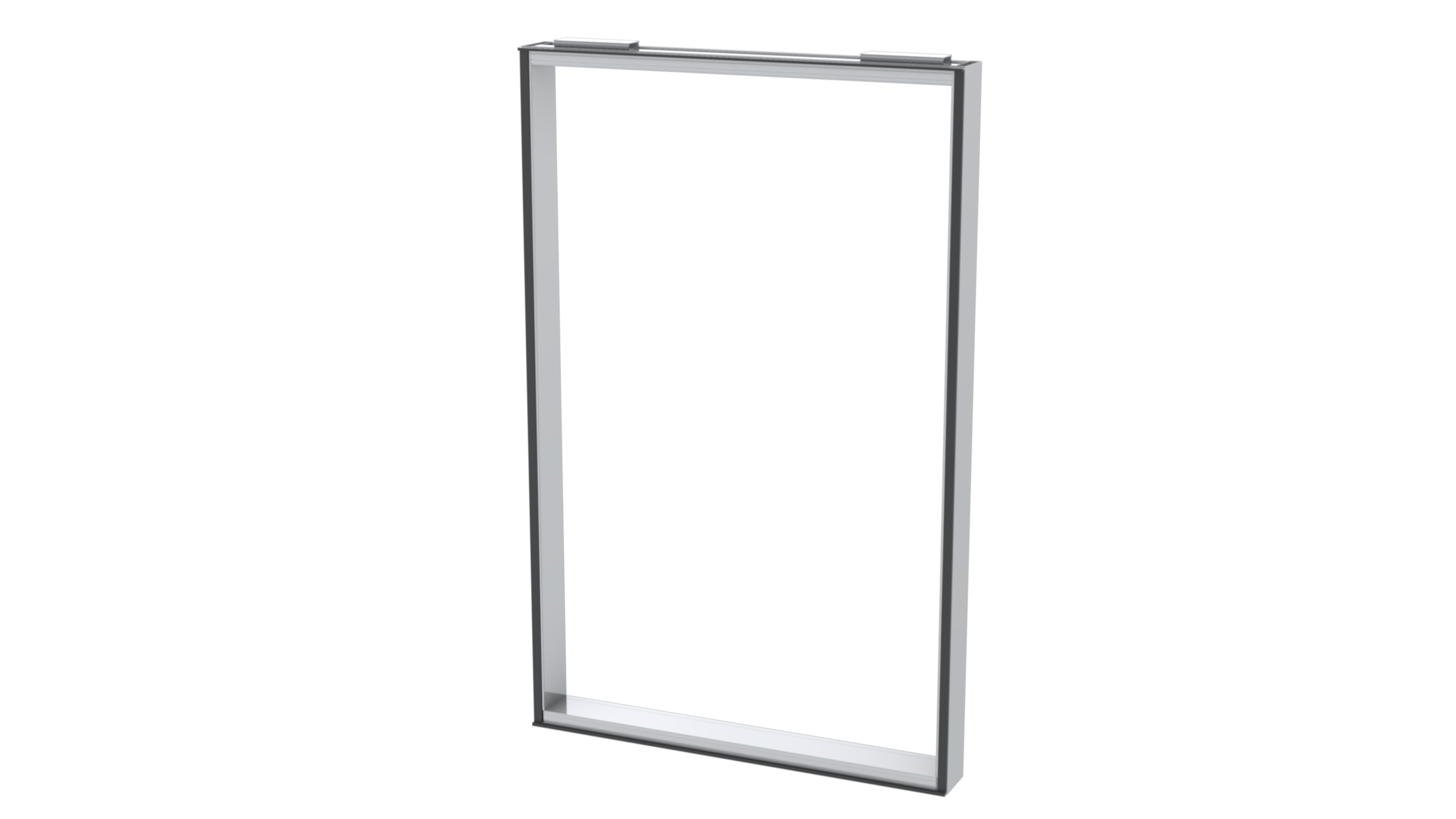

The ES-8860 is a 7" window-wall system built for the U.S. market and designed for laminated glass, carrying the highest design load in this cluster at +150/-150 psf. Maximum panel size is 47-13/16" x 120", with 13.5 psf water infiltration, a U-value of 0.46, and air infiltration of 0.025 cfm. The system offers SSG and captured glazing options, integral vents, and anodized, painted, or wood-effect finishes.
- Aluminum frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
50.5 x 175 in (per panel)
Design Pressure
+90/-90 psf
U-Factor
0.46
Frame Depth
7 in
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Window Wall (SSG / captured) | 50.5 x 175 in (per panel) | +90/-90 psf |
| Project-Out Window (integrated vent) | — | +90/-90 psf |
Performance Certifications
Energy-performance data on file (manufacturer-published; not third-party certified).
Options
Related Products
More models in the Commercial & Architectural Series.
Ready to install the ES Windows ES-8860 Window Wall?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Frequently Asked Questions

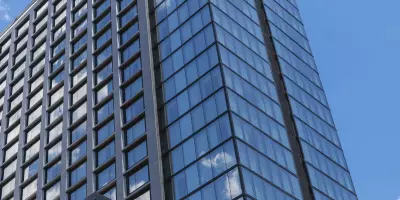

The ES-8860 is a 7" hurricane-rated window-wall system built for the U.S. market and designed for laminated glass. It carries the highest design load in ES Windows's commercial architectural lineup, so we install it on mid- and high-rise facades and other commercial openings that have to handle heavy wind loads. It's a window-wall system, meaning the units span floor-to-floor between slabs rather than hanging continuously past them like a curtain wall.
Yes. The ES-8860 is HVHZ-approved and built for impact-laminated glass, so it can be permitted in Miami-Dade and Broward. We always confirm the specific Florida Product Approval or Miami-Dade NOA that applies to your exact configuration and size before we install. That documentation is what your local building department will require at permit.
The ES-8860 carries the highest design load in ES Windows's architectural cluster at +150/-150 psf, which is why it's specified for high-wind-load commercial facades. Individual configurations such as the SSG/captured window wall and the project-out integrated vent are rated at +90/-90 psf within their size ranges. We confirm the exact design pressure your opening requires, and the approval that covers it, at quote.
Maximum panel size on the ES-8860 is 47-13/16" wide by 120" tall when run at its full +150/-150 psf rating. The SSG/captured window-wall configuration can reach up to 50.5" x 175" at +90/-90 psf. We size the panels to your facade and the design pressure your project requires, and we'll verify the approved limits before installation.
The ES-8860 carries a U-factor of about 0.46, water infiltration resistance of 13.5 psf, and very low air infiltration of 0.025 cfm/ft². Those numbers reflect a tightly built impact window wall meant to keep out both wind-driven water and air leakage on a commercial facade. We'll review the glass package and these ratings against your project's energy and code requirements when we quote.
The ES-8860 is offered in anodized, painted, or wood-effect finishes, and it can be glazed structural-silicone (SSG) or captured. Frame options include integrated vents and a project-out window, plus an integrated glass slab cover for the floor-line detail. We'll spec the finish and glazing style to match the look and ventilation your facade design calls for.
This is ES Windows's house-brand catalog for commercial, condo, and mid- to high-rise architectural work, distinct from the residential tier lines. It covers aluminum storefront, stick and structural-silicone-glazed curtain wall, pre-glazed impact window wall, project-in and project-out operable windows, and commercial sliding and lift-slide doors. We reference it for light-commercial and architectural-spec projects rather than standard home replacement.
The U.S.-market impact systems are the ones that carry real HVHZ ratings: the ES-8860 window wall is tested to plus and minus 150 psf, the ES-6000/6100 sliding door reaches plus 120 / minus 135 psf with multiple Miami-Dade NOAs, and the ES-7500/7600 window wall and several others carry large- and small-missile certification. Some of the metric storefront and curtain-wall framing systems are Latin-American architectural products without Florida approval, so we verify approval status before specifying any of them on a Florida job.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
