Eco-Guard Architectural Fixed Window Series
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +60/-60 psf
Made in Florida

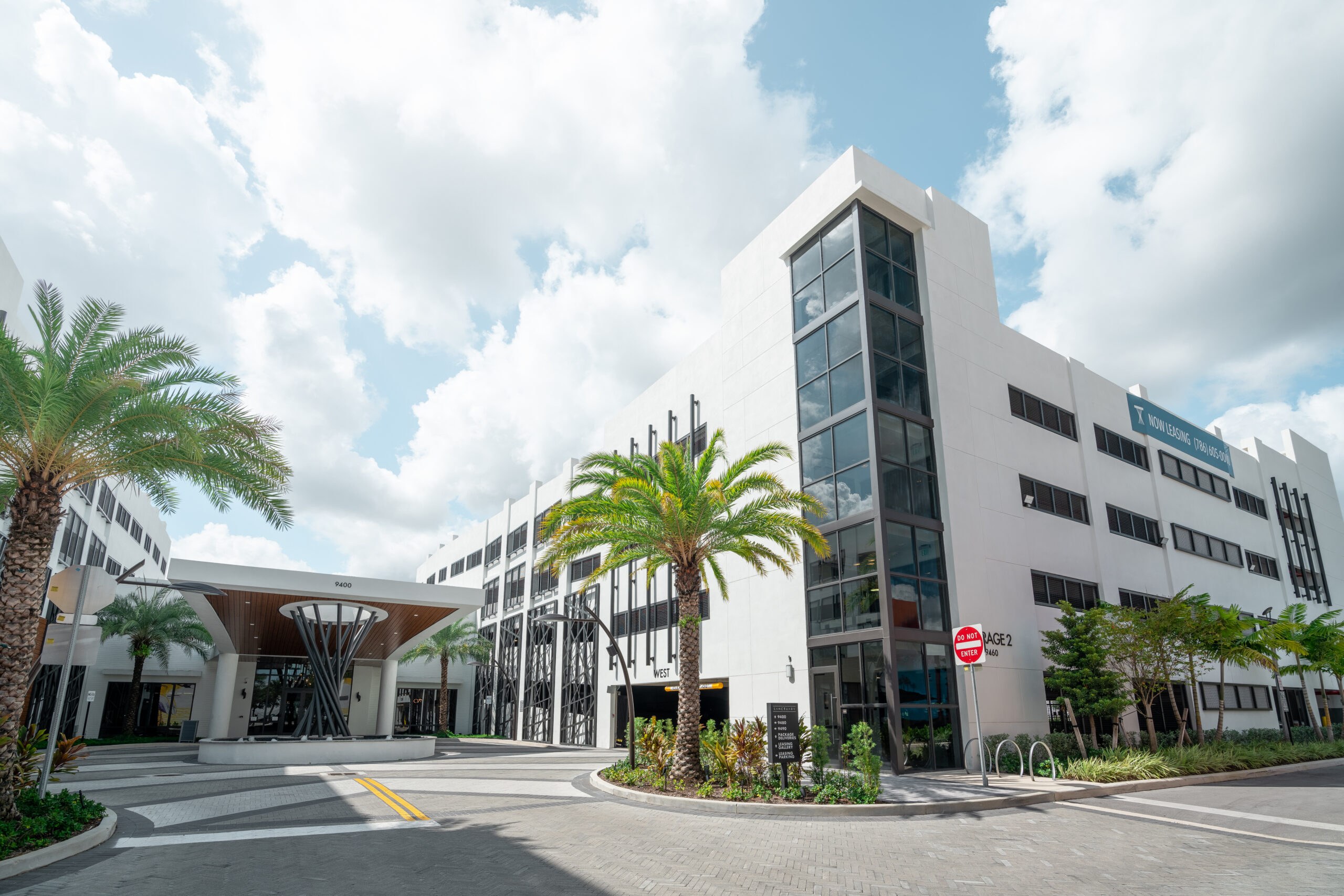

Eco-Guard Architectural Fixed Window Series 70
Tall fixed impact glass for South Florida elevations, up to 120 in.
Entry aluminum impact fixed window, 2-1/8 in. frame, +60/-60 psf, LMI, up to 32 x 104 in.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +60/-60 psf
Made in Florida
Impact protection, built for South Florida
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
48 x 76 in
Design Pressure
+60/-60 psf
Impact Rating
LMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Fixed Window | 48 x 76 in | +60/-60 psf |
Performance Certifications
- FL32389
Related Products
More models in the Eco-Guard Architectural Fixed Window Series.
Comparable from Other Brands
Other fixed window models Armor Pro installs.
Air Master

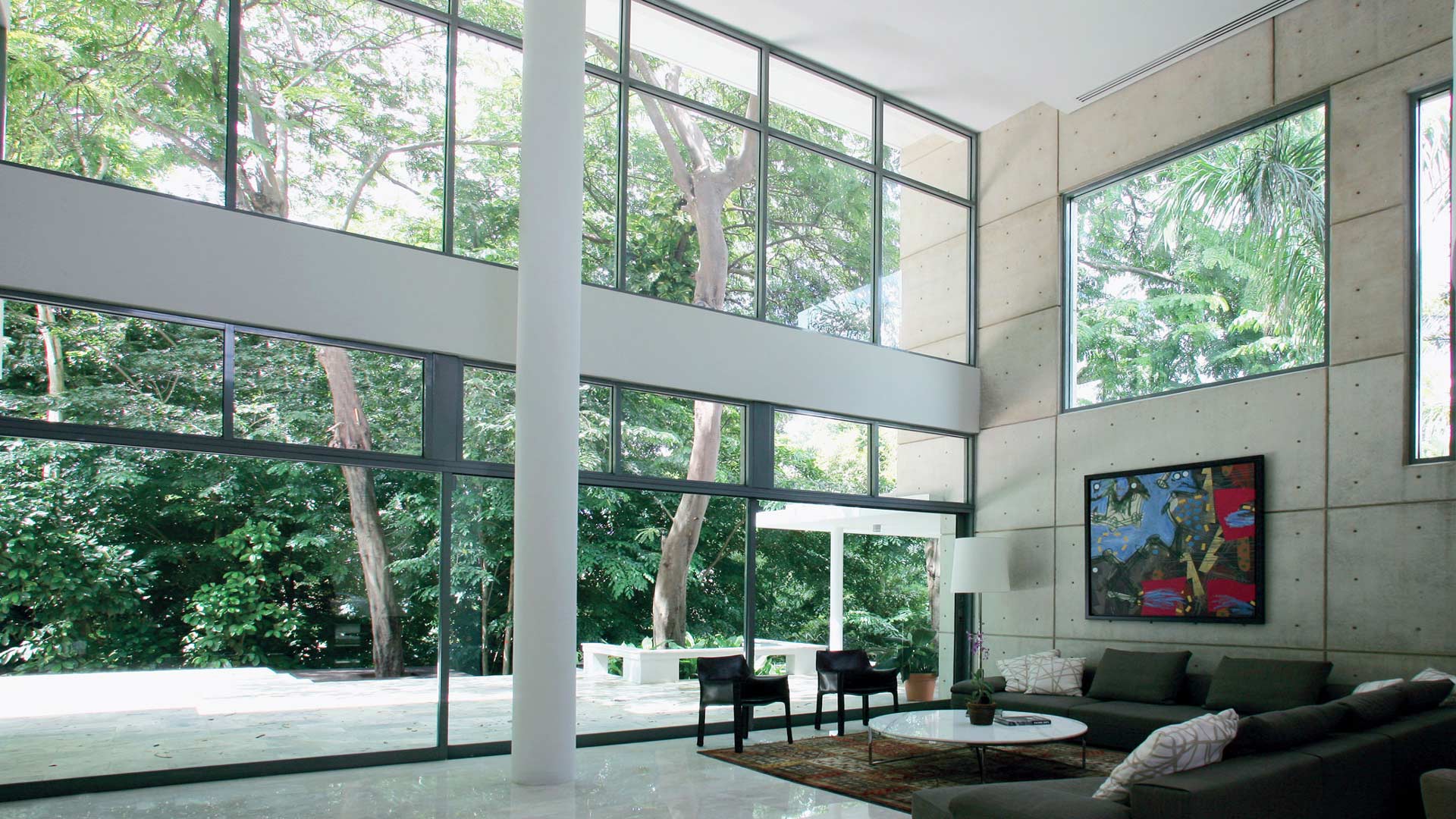

Air Master Picture Window
See price & specs
Eastern Architectural Systems

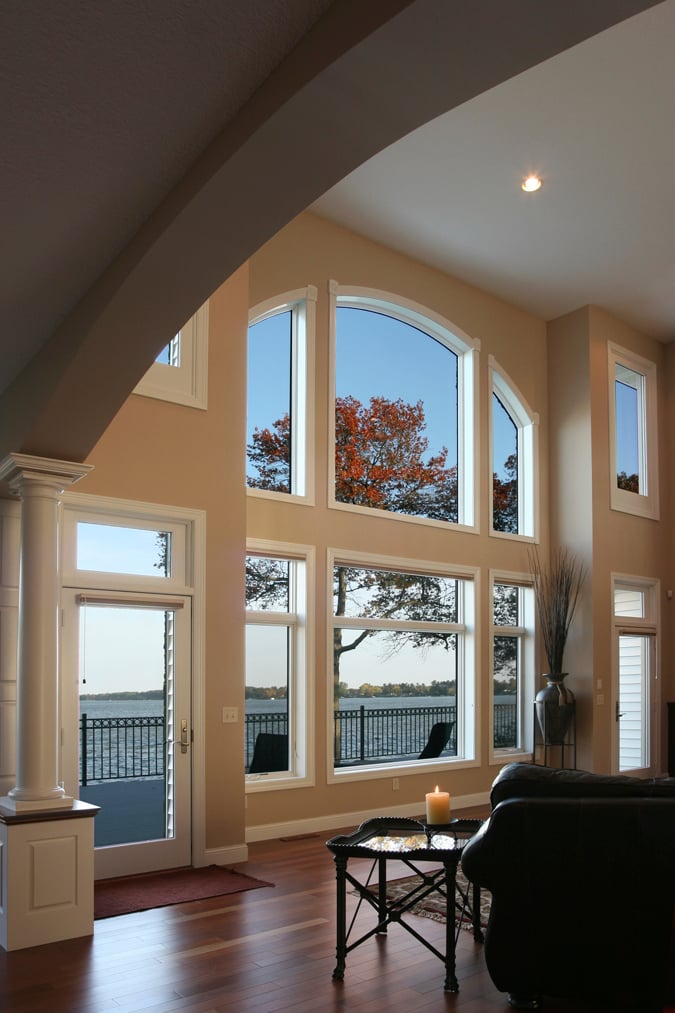

EAS 176 Bertha Picture Impact Vinyl
See price & specs
Pella

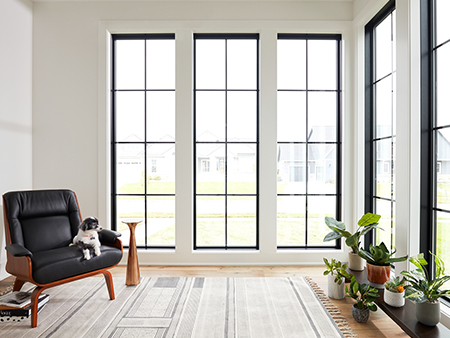

Pella Lifestyle Fixed / Picture / Specialty Shapes
See price & specs
PGT Custom Windows & Doors

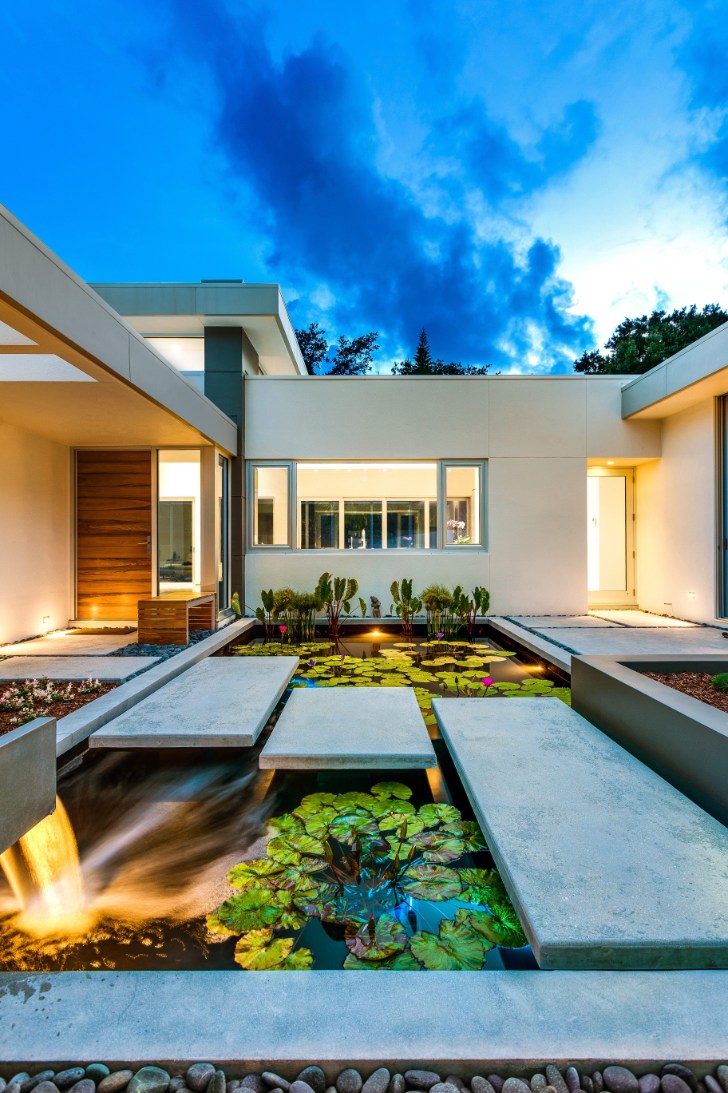

PGT WinGuard Aluminum Casement Picture PW740A
See price & specs
Frequently Asked Questions
The Series 70 (AF-70) is the entry model in ECO Window Systems' aluminum impact fixed-window family, built on a slim 2-1/8 inch frame. It's a fixed (non-operable) impact lite for picture openings, transoms, and architectural shapes where you want certified impact glass at the most economical point in the line. We install it on more standard fixed openings and step up to the Series 300 or 350 when an elevation needs higher design pressure or a taller span.
Yes. The Series 70 is a Large Missile Impact (LMI) rated fixed window and is HVHZ-approved, so it can be used in Miami-Dade and Broward. It carries Florida Product Approval FL32389. We confirm the specific approval and rating for your jurisdiction at the time of quote so the unit is permitted correctly for your opening.
In its fixed configuration the AF-70 reaches a maximum of 48 by 76 inches, with a design pressure of +60/-60 psf, which is the wind load the unit is built to resist. That makes it best suited to moderate-size picture and transom openings rather than the tallest elevations. We measure your rough opening and confirm the exact size and design pressure your project needs before ordering.
The Series 70 has an aluminum frame, and at 2-1/8 inches it's the slimmest profile in ECO's fixed-window family, which keeps sightlines clean on smaller picture and transom openings. ECO offers a range of frame colors and finishes across the line, and we'll review the options available for the AF-70 when we spec your project.
The AF-70 is the budget-friendly entry choice, rated to +60/-60 psf and up to 48 by 76 inches, so it suits standard fixed openings that don't demand the highest wind loads or extra-tall glass. If your opening needs higher design pressure or a span up to 120 inches, we move you to the Series 300 or the top Series 350. We match the model to your size and wind-load requirements at quote.
We don't quote a flat price because installed cost depends on the size of the opening, the glass package, and the condition of the existing frame. As the entry model in ECO's aluminum fixed line, the Series 70 is the most economical fixed-window option we install in the family. Armor Pro provides a free, no-obligation estimate after measuring your opening.
A fixed (or picture) window doesn't open — it's a sealed lite of glass for light and views where ventilation isn't needed. ECO's architectural fixed family is built for tall and large picture openings, transoms above doors, and specialty shapes like half-rounds and octagons. We commonly pair fixed glass with operable units to build a large stacked elevation.
The family runs from the Series 70 up to the Series 350, which reaches up to 120 inches tall on a 3-3/8 inch frame. Taller and wider picture glass carries higher loads, so the available size narrows as the design pressure climbs. We size each fixed lite against the wind load for its position on the wall and confirm the maximum on the quote.
Yes. ECO's residential aluminum impact lines carry Miami-Dade Notices of Acceptance and Florida Product Approvals, which makes them eligible to install in the High-Velocity Hurricane Zone (Miami-Dade and Broward counties). The exact wind ratings depend on the specific series, size, and configuration, so we confirm the right product for your opening on the quote. We pull the permit and submit the approval documents as part of every job.
