Standard Windows
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +70/-70 psf
Air Master Projected Out (Awning)
Four Florida-certified residential window styles built for South Florida coastal homes.

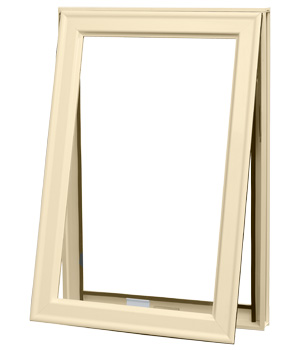

Awning window hinged at top, swinging outward from the bottom to ventilate in light rain. Florida Product Approval with up to 7/16-inch laminated impact glass.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +70/-70 psf
Frame finish
Glass
Impact protection, built for South Florida

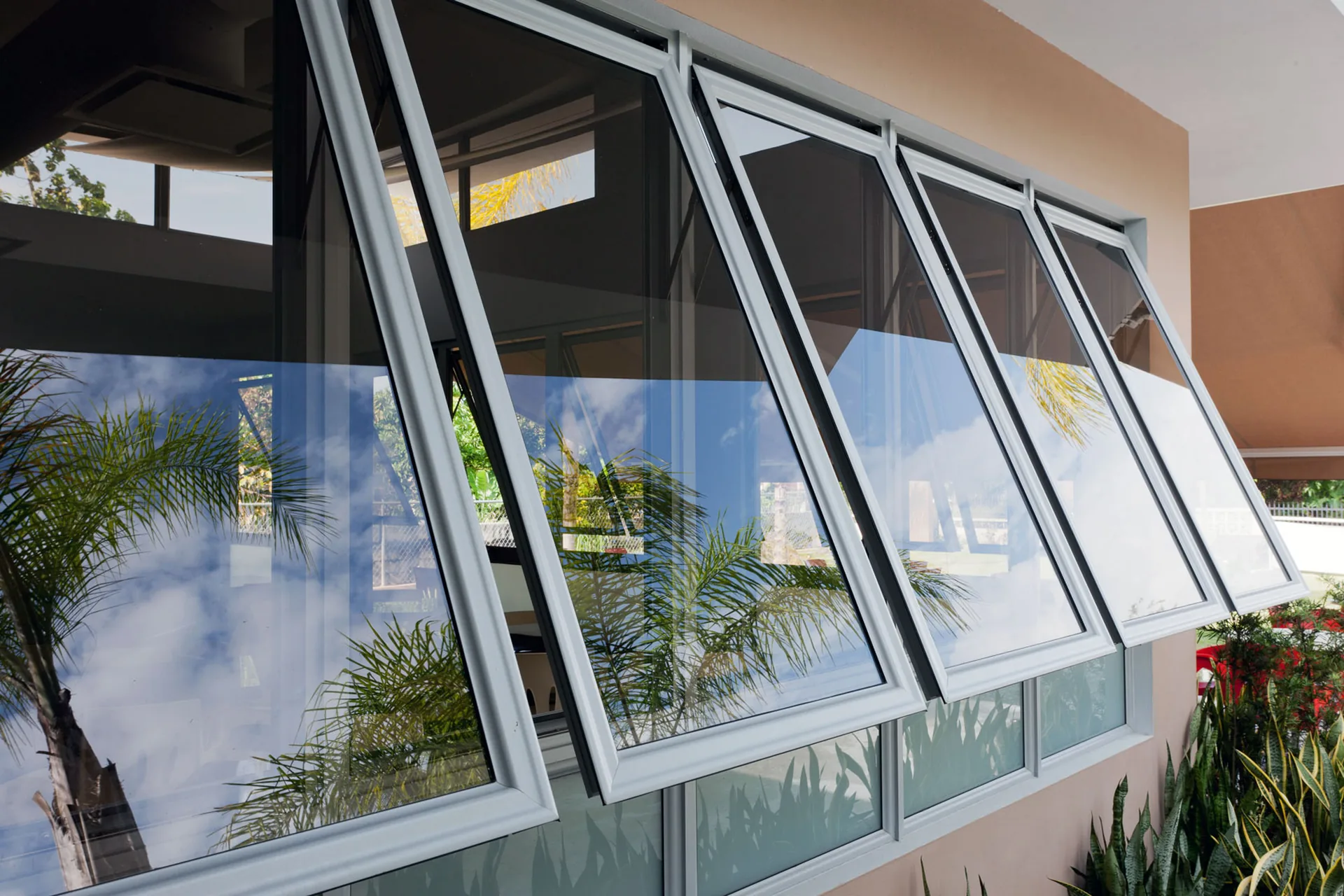

Projected-out (awning) windows hinge at the top and swing outward from the bottom, opening for ventilation while continuing to shed rain. Common in bathrooms, kitchens, and bedrooms where airflow matters but a fixed window would be limiting. Air Master's Projected Out carries Florida Product Approval (FL #21456) with up to 7/16-inch laminated impact glass.
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
36 x 72 in or 32.44 x 69.5 in or 28.75 x 65.88 in
Design Pressure
+70/-70 psf
Impact Rating
LMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| X | 36 x 72 in or 32.44 x 69.5 in or 28.75 x 65.88 in | +70/-70 psf |
Performance Certifications
- FL21456.R6
Options
Related Products
More models in the Standard Windows.
Ready to install the Air Master Projected Out (Awning)?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other awning models Armor Pro installs.
Frequently Asked Questions
The Air Master Projected Out is an awning window that hinges at the top and swings outward from the bottom, so it ventilates while continuing to shed rain. That makes it a good fit for bathrooms, kitchens, and bedrooms where you want airflow even during light rain but a fixed window would be too limiting. Armor Pro installs it across South Florida as part of Air Master's Standard Windows line.
It uses laminated impact (LMI-rated) glass up to 7/16 inch, and it carries Florida Product Approval FL21456.R6 for statewide impact installations. However, the profile shows it is not HVHZ approved on its own and does not list a Miami-Dade NOA, so for High-Velocity Hurricane Zone openings in Miami-Dade or Broward we'd point you to a NOA-holding unit such as Air Master's Picture Window. We always confirm the right certification for your address at quote.
The Projected Out builds in an 'X' awning configuration up to roughly 28.75 inches wide by 65.88 inches tall, within the line's maximum panel dimensions of 36 inches wide by 72 inches tall. It carries a design pressure of +70/-70 psf. We confirm the exact size and rating for your opening when we measure for your free estimate.
Both the monolithic laminated and insulating glass packages perform at a U-factor of 1.09, an SHGC of 0.54, a visible transmittance of 0.58, and a condensation resistance of 14. The insulating option adds a 1/4-inch tempered outer lite with an air space ahead of the laminated inner glass. We'll help you choose the package that best balances heat control and clarity for your sun exposure.
Standard frame finishes include White, Almond, Grey, Bronze, and Chocolate, with more than 200 custom colors available. Glass tints run from standard Clear to Bronze, Solex, Ice Glass, and Frosted, and the window is offered in Continental (standard) or Lineal frame profiles. Frosted glass is a popular pick for bathroom awning windows where you want light but also privacy.
We don't quote a flat price because installed cost depends on the size of the opening, the glass package and tint, the finish color, and the condition of the existing frame. The Projected Out is part of Air Master's Florida-certified Standard Windows line with laminated impact glass. Armor Pro provides a free, no-obligation estimate after measuring your openings so the price reflects your actual project.
This line is the one Air Master family with HVHZ-capable products. The Series 250 Sliding (horizontal roller) and the Series 250 fixed Picture Window hold Miami-Dade Notices of Acceptance, so we can permit and install those two styles in the High-Velocity Hurricane Zone that covers Miami-Dade and Broward. The Projected Out (awning) and Single Hung 250 carry Florida Product Approval for the rest of the state but not a Miami-Dade NOA, so we use them outside the HVHZ. We confirm the right style for your address and county before we quote.
Four styles cover most South Florida replacement work: Picture (a fixed pane for daylight and views), Projected Out (an awning that vents in light rain), Single Hung 250 (a fixed top sash over a movable bottom sash, the most common style on Florida homes), and Sliding (a horizontal roller for wider openings). All four are aluminum-framed with laminated impact glass. We help you match the style to each opening so the look and the airflow fit how you use the room.
Yes, but only on specific products. Air Master's Series 250 aluminum line — fixed window, horizontal-slider window, sliding glass door, and swinging door — carries a Miami-Dade Notice of Acceptance (NOA) and is rated for the High-Velocity Hurricane Zone that covers Miami-Dade and Broward counties. The rest of the residential catalog carries statewide Florida Product Approval, which is accepted across most of Florida but not inside the HVHZ. We confirm the right product for your county before we quote.
