WinDoor
Impact Rating LMI
Design Pressure +65/-75 psf
Glazing Impact
Made in Florida

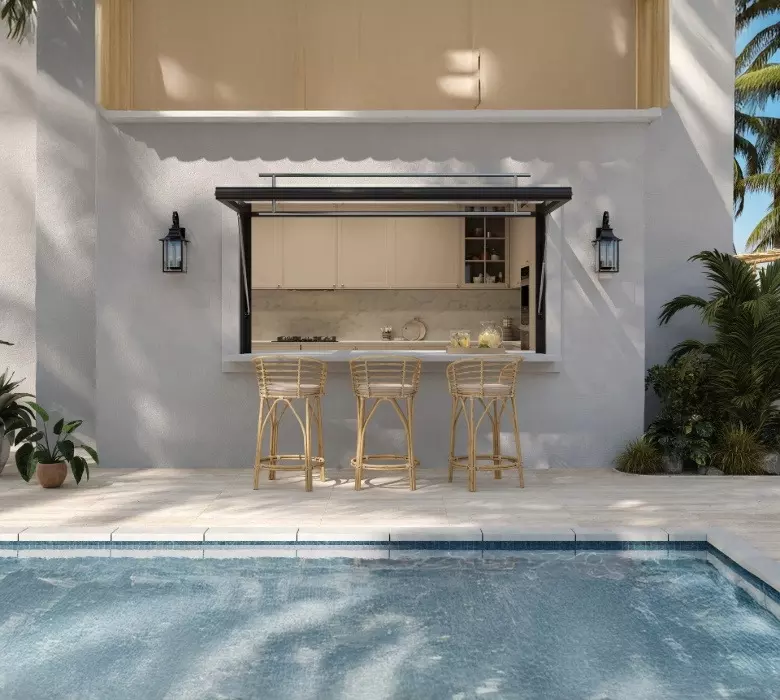

WinDoor Pass-Through Awning Window
Aluminum impact awning configured for outdoor-kitchen pass-through and indoor-outdoor serving openings. Stainless gas-spring operator with anti-drift hold.
Impact Rating LMI
Design Pressure +65/-75 psf
Glazing Impact
Made in Florida
Frame finish
Bone White
Bermuda Bronze
Clear Anodized
Black
Southbeach Silver
Velvet Gray
Patio White
Southern Bronze
Custom
Impact protection, built for South Florida
The Pass-Through Awning is WinDoor's aluminum impact awning window configured for outdoor-kitchen pass-through and indoor-outdoor entertainment serving openings. A stainless- steel gas-spring operator with anti-drift hardware keeps the window at any chosen open position. Available with the Inline Ladder Pull or Flush Handle and rated to 65 psf positive and 75 psf negative design pressure with LMI impact certification.
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
32 sq ft
Design Pressure
+65/-75 psf
Impact Rating
LMI
Frame Depth
5 in
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Pass-through awning (area-capped) | 32 x 31.25 in | 32 sq ft | +65/-75 psf |
Max size governed by 32 sq ft area cap; min width 32", min height 31.25"; head corner 6" max typ, head 28" max typ; with or without sill.
Options
Comparable from Other Brands
Other awning models Armor Pro installs.
Frequently Asked Questions
The WinDoor Pass-Through Awning is an aluminum impact awning window configured specifically for outdoor-kitchen pass-throughs and indoor-outdoor serving openings. It swings outward and uses a stainless-steel gas-spring operator with anti-drift hardware that holds the sash at any chosen open position, so it stays put while you pass food and drinks through. We install it where a kitchen or bar counter meets a covered patio or lanai.
Yes. The Pass-Through Awning carries LMI (Large Missile Impact) certification and is HVHZ-approved, so it qualifies for High-Velocity Hurricane Zone openings in Miami-Dade and Broward without separate shutters. It is glazed with laminated impact glass as standard. We confirm the specific product approval and the configuration that fits your opening when we quote.
The Pass-Through Awning is area-capped at 32 square feet, with a minimum size of 32 by 31.25 inches, and is rated to +65/-75 psf design pressure. Because it's an awning over a serving counter, the size is held within that area limit to keep the operator and impact rating valid. We'll confirm the exact size and design pressure your opening requires before ordering.
Glass options include standard impact glass, Triton Advanced Laminate, and High Performance Low-E, which is a good choice for cutting solar heat gain over a sunny outdoor kitchen. For the handle you can pick the standard Inline Ladder Pull or a Flush Handle, with ladder-pull hardware in satin nickel, bronze, or black. We'll help you choose the glass and handle that suit how the pass-through gets used.
The aluminum frame comes in standard finishes including Bone White, Bermuda Bronze, Clear Anodized, Black, Southbeach Silver, Velvet Gray, Patio White, and Southern Bronze, plus Woodgrain options. That range lets the serving window match the rest of your home's windows and doors or stand out as a feature at the bar. We coordinate the finish selection with your other openings when we quote.
It uses a stainless-steel gas-spring operator with an anti-drift feature, which holds the sash steady at whatever open position you set without slowly creeping closed. That keeps the serving opening clear and hands-free while you pass items across the counter. As your installer, we set and adjust the operator so the window holds correctly once it's mounted in your outdoor-kitchen opening.
Yes. WinDoor's active aluminum impact line carries Florida Product Approval and is rated for the High-Velocity Hurricane Zone (Miami-Dade and Broward counties), with large-missile impact glass throughout. The exact design pressures depend on the specific product, panel size, and configuration, so we confirm the right rating for each opening on the quote. We pull the permit and submit the approval documents as part of every installation.
We install WinDoor's full luxury aluminum range: the 8100 sliding glass door, BF1199A bi-fold and PV9998A pivot doors, the 9050 thermally broken terrace door, FD9950A French doors, and the GD9995A impact garage door, plus the 9020 picture window, the GW9994G Envista bay window, and the Pass-Through Awning. We also service older WinDoor product still in Florida estates built since 2001, even on series the brand no longer sells. If you're comparing door and window types, our Window and Door Designer and Visualizer lets you see how each looks on your home.
Both crank open with a handle instead of sliding. A casement is hinged on the side and swings out like a door; an awning is hinged at the top and opens outward from the bottom, so it sheds rain and can stay open in a light shower. Crank windows seal tightly when closed, which makes them strong performers for energy and weather resistance.
