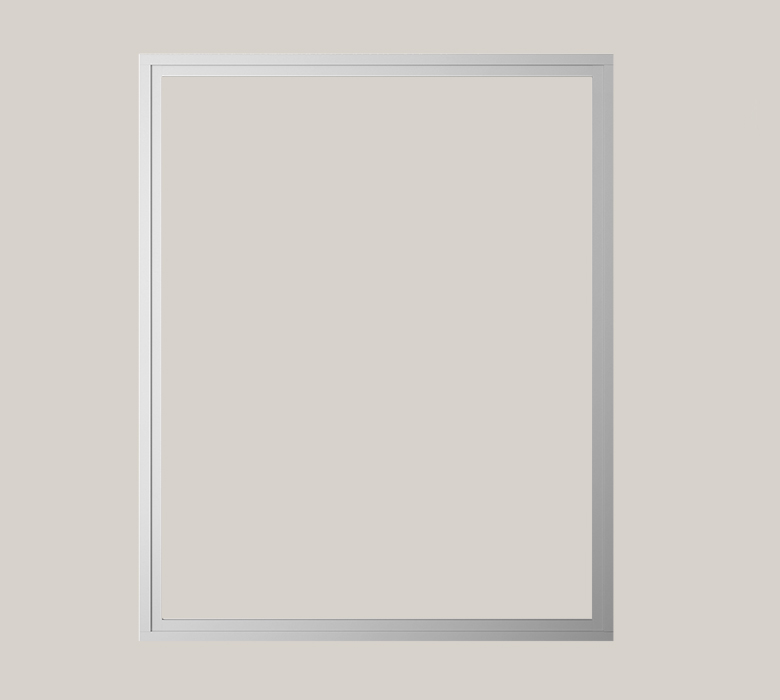

WinDoor 9020 Aluminum Picture Window
Flagship aluminum impact picture window up to 108 by 144 inches at 150 psf positive and negative. Sightline-matches the 8100 SGD and 9050 terrace door.
Florida DBPR
Approved
Impact Rating LMI
NFRC Certified
Made in Florida
Frame finish
Glass
Impact protection, built for South Florida
The 9020 is WinDoor's aluminum impact picture window, a fixed pane sized up to 108 by 144 inches for panoramic openings. The 3-1/4 inch frame depth and top and bottom rail proportions sightline-match the 8100 sliding glass door and 9050 terrace door, allowing clean elevation continuity across mixed-product specifications. Rated to 150 psf positive and negative design pressure with LMI impact certification.
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Patterns
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
72 x 144 in
U-Factor
0.97–1.06
SHGC
0.25–0.77
Visible Trans.
0.06–0.76
Impact Rating
LMI
Sizes & Pressures
| Configuration | Max size |
|---|---|
| Fixed / Picture window (max unit) | 72 x 144 in |
Modular design; available in a variety of architectural shapes; integral mullions available.
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Blue | 1.015 | 0.492 | 0.488 | 12 |
| Bronze | 1.015 | 0.445 | 0.372 | 12 |
| Clear | 1.015 | 0.73 | 0.75 | 12 |
| Green | 1.015 | 0.49 | 0.602 | 12 |
| Gray | 1.015 | 0.422 | 0.28 | 12 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- FL15709.R19
- FL12660.R4
Options
Ready to install the WinDoor 9020 Aluminum Picture Window?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other fixed window models Armor Pro installs.
Air Master
Air Master Picture Window
See price & specs
Eastern Architectural Systems
EAS 176 Bertha Picture Impact Vinyl
See price & specs
Pella
Pella Lifestyle Fixed / Picture / Specialty Shapes
See price & specs
PGT Custom Windows & Doors
PGT WinGuard Aluminum Casement Picture PW740A
See price & specs
Frequently Asked Questions
The 9020 is WinDoor's flagship aluminum impact picture window, a fixed (non-operating) pane built for panoramic openings up to 108 by 144 inches. It's the right choice when you want an unbroken expanse of glass for a view rather than ventilation. We install it where a large fixed window anchors the elevation.
Yes. The 9020 carries LMI (Large Missile Impact) certification and is HVHZ-approved, rated to 150 psf in both positive and negative design pressure with a 30 psf water-resistance rating. That makes it one of the strongest fixed windows we install, and we'll confirm the certified rating for your specific opening at the quote.
Yes. The 9020 uses a 3-1/4 inch frame depth and rail proportions that sightline-match the WinDoor 8100 sliding glass door and the 9050 terrace door. That lets us run clean elevation continuity when a project mixes a picture window alongside those doors. We'll spec the matching units so the openings read as one consistent system.
The 9020 has a U-factor of 0.97 across its glass packages, with SHGC ranging from about 0.25 to 0.76 depending on tint. It's available in single pane, insulating, laminated, and laminated insulating builds with impact-resistant laminated glass and Low-E options; lower-gain tints like Graylite II (SHGC 0.31) cut heat, while Clear and Starphire maximize light. We'll match the glass to your sun exposure.
Standard finishes include Bone White, Bermuda Bronze, Clear Anodize, Black, Southbeach Silver, Velvet Gray, Patio White, and Southern Bronze, plus woodgrain looks like Hazelnut Brown, Mahogany Red, and Walnut Brown. Two-tone options and custom colors are also available. We'll coordinate the 9020's finish with the rest of your WinDoor units for a consistent look.
Installed price depends on the size of the opening, the glass package and tint, and the finish, and because the 9020 can run up to 108 by 144 inches as a single fixed pane, larger units carry more glass and handling cost. As a flagship 150 psf impact window it sits at the premium end. Armor Pro provides a free estimate sized to your exact opening.
Yes. WinDoor's active aluminum impact line carries Florida Product Approval and is rated for the High-Velocity Hurricane Zone (Miami-Dade and Broward counties), with large-missile impact glass throughout. The exact design pressures depend on the specific product, panel size, and configuration, so we confirm the right rating for each opening on the quote. We pull the permit and submit the approval documents as part of every installation.
We install WinDoor's full luxury aluminum range: the 8100 sliding glass door, BF1199A bi-fold and PV9998A pivot doors, the 9050 thermally broken terrace door, FD9950A French doors, and the GD9995A impact garage door, plus the 9020 picture window, the GW9994G Envista bay window, and the Pass-Through Awning. We also service older WinDoor product still in Florida estates built since 2001, even on series the brand no longer sells. If you're comparing door and window types, our Window and Door Designer and Visualizer lets you see how each looks on your home.
A fixed (picture) window does not open — it is a sealed pane that maximizes the view and daylight. With no moving parts it is the most weather-tight and energy-efficient style, and it carries the highest design pressures, which is why it is often used for large feature openings and architectural shapes.
