WinGuard Aluminum Series
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +80/-110 psf
NFRC Certified
Glazing Impact Glass
Made in Florida
PGT WinGuard Aluminum Architectural AR7720A
PGT's flagship aluminum impact line, the reference impact-window platform in Florida.

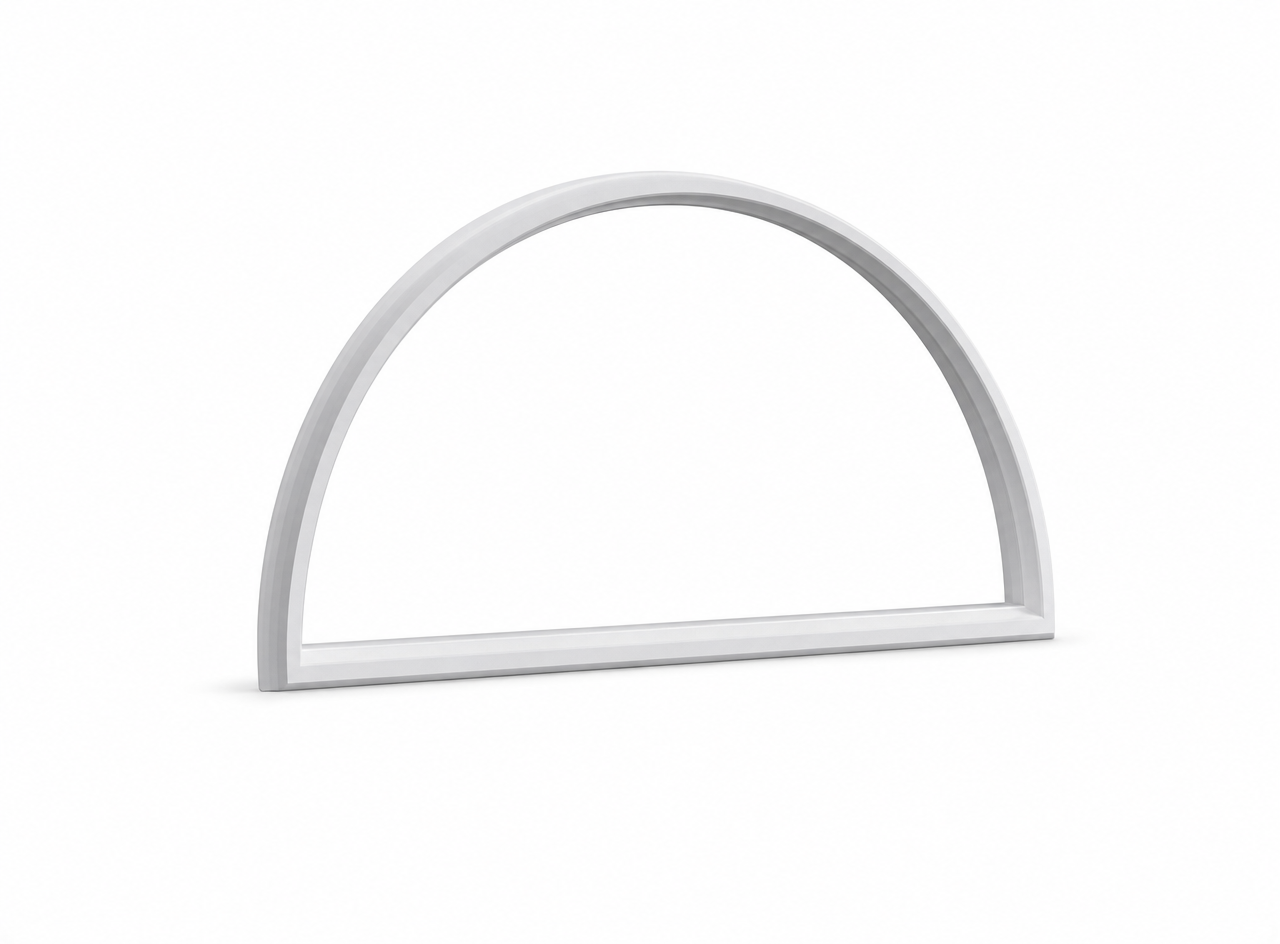

Aluminum impact architectural-shape fixed window in 25 standard shapes (half circle, eyebrow, trapezoid, arch, quadrafoil). LMI for HVHZ.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +80/-110 psf
NFRC Certified
Glazing Impact Glass
Made in Florida
Frame finish
Impact protection, built for South Florida
The AR7720A is PGT's WinGuard Aluminum architectural-shape fixed window, available in 25 standard shapes including half circle, eyebrow, trapezoid, arch, and quadrafoil for accent-window installations. Built on the WinGuard 7720 picture platform, LMI impact-rated for HVHZ installations.
- Florida Building Code product-approved
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Available Shapes
Representative shapes — architectural and fixed-lite units are made to order. Confirm exact shapes and sizes available for your opening at quote.
Grille Styles
1" Raised/Flat9/16" Flat Grid-Between-the-Glass
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
42 sq ft
Design Pressure
+80/-110 psf
U-Factor
0.44–0.45
SHGC
0.15–0.22
Visible Trans.
0.14–0.46
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Architectural shape, fixed (O) | 14.5 x 14.5 in | 42 sq ft | +80/-110 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.44 | 0.36 |
| Argon/Energy Shield | 0.4 | 0.36 |
| Energy Shield Max | 0.43 | 0.25 |
| Argon/Energy Shield Max | 0.39 | 0.25 |
| SolarControl LowE2 | 0.44 | 0.23 |
| Argon/SolarControl LowE2 | 0.4 | 0.23 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- FL243.R30
Related Products
More models in the WinGuard Aluminum Series.
Comparable from Other Brands
Other architectural shape models Armor Pro installs.
Frequently Asked Questions
The AR7720A is offered in 25 standard architectural shapes, including half circle, eyebrow, trapezoid, arch, and quadrafoil. It's a fixed (non-operating) accent window built on the WinGuard 7720 picture platform, so we install it above doors and standard windows to finish off a custom look. We'll help you pick the shape that matches your opening and elevation.
Yes. The AR7720A is LMI (Large Missile Impact) rated and HVHZ-approved for installation throughout Miami-Dade and Broward's High-Velocity Hurricane Zone. It's part of PGT's WinGuard Aluminum line, which carries one of the deepest Miami-Dade NOA libraries in the industry. We confirm the applicable approval for your shape and size at the time of quote.
The AR7720A's fixed architectural shape runs from a minimum of 14.5 by 14.5 inches up to a maximum of 42 square feet. It carries a strong design pressure rating of +90/-130 psf, which is well-suited to high-exposure South Florida elevations. We verify the rating against your exact shape and dimensions before ordering.
The AR7720A offers a wide range of insulated impact glass packages, from Energy Shield to Energy Shield Max, SolarControl LowE2, and argon-filled versions, all on a 1-inch laminated insulating glass unit. U-factors run from 0.39 to 0.47 and SHGC from 0.21 to 0.36 depending on the package and whether you add grids. We'll recommend the package that best balances heat control and clarity for your home.
The AR7720A comes in White as standard, plus Bronze, Black, and Clear Anodized finishes. For grids, you can choose a 1-inch raised/flat profile or a 9/16-inch flat grid-between-the-glass style. Because architectural windows are usually paired with standard units, we match the finish and grid to the rest of your install.
No, the AR7720A is a fixed architectural-shape window, so it does not open or vent; it's an accent unit designed to complete a custom window arrangement. Installed cost depends on the shape you choose, the glass package, and the opening, so Armor Pro provides a free estimate rather than a flat per-window price. We typically install these alongside the operating WinGuard windows below them for a coordinated look.
WinGuard Aluminum is PGT's flagship aluminum impact line and runs the full operation range on one extrusion platform: single hung, horizontal roller, casement, awning, fixed picture, architectural shapes, plus sliding glass doors and French doors. Because every style shares the same frame family, a whole house can be specified consistently instead of mixing systems opening by opening. It's been PGT's reference impact-window platform in Florida since 1998.
Yes. Every WinGuard Aluminum product is large-missile impact-rated and eligible for the High-Velocity Hurricane Zone, which covers Miami-Dade and Broward counties. The line carries one of the deepest Miami-Dade NOA libraries in the industry, glazed with PGT's Diamond Glass laminated impact glass. The exact design pressure depends on the size and configuration of each opening, which we confirm against the Florida Building Code on your quote.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
