Sparta Aluminum
Impact Rating LMI
Design Pressure +55/-65 psf
NFRC Certified
Glazing Impact-resistant glass
Made in Florida

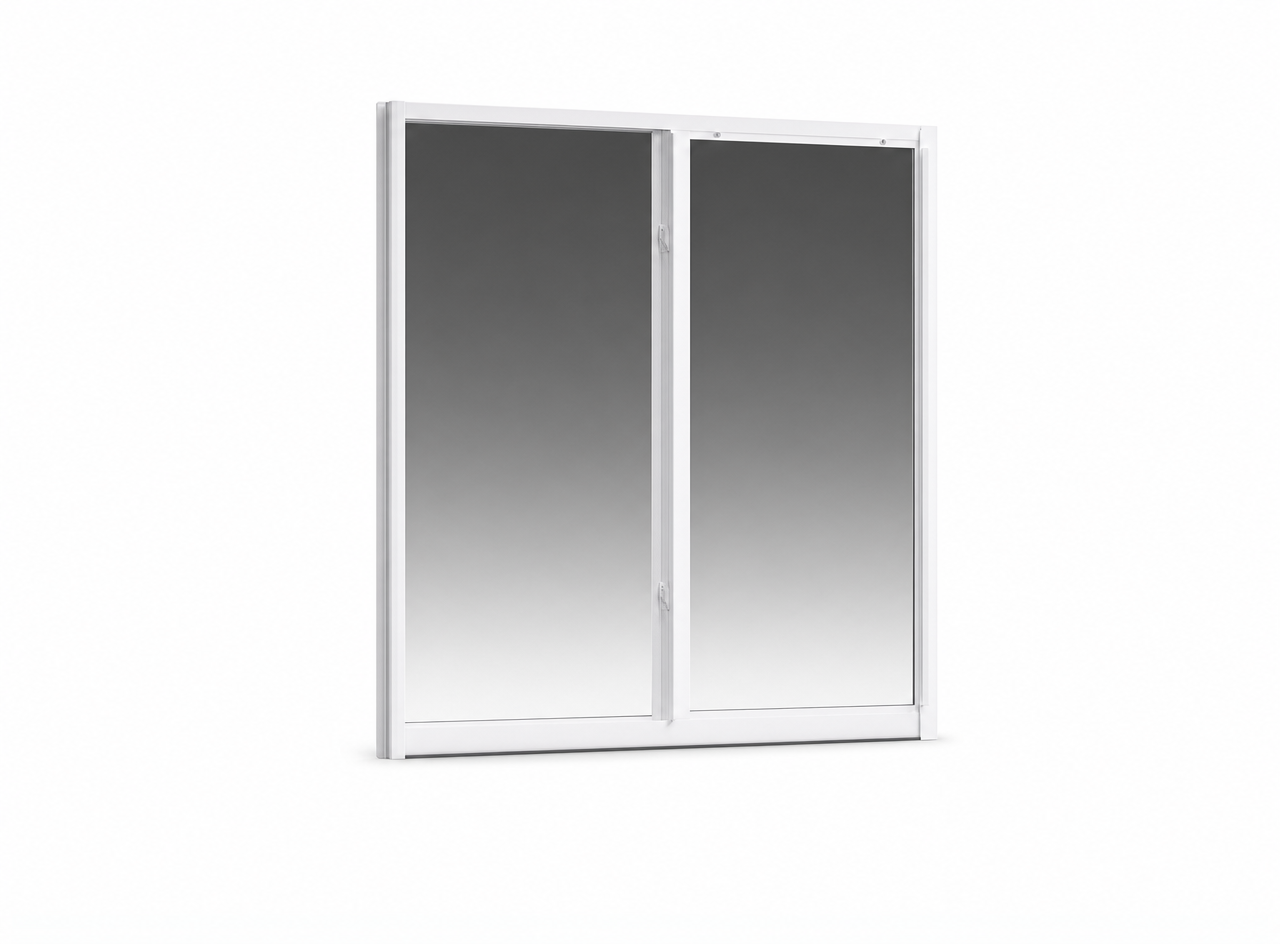

PGT Sparta Aluminum Horizontal Roller HR4110A
PGT's value-tier aluminum impact line on the 4000-series platform.
Value-tier aluminum impact horizontal roller in 2-panel and 3-panel configurations on a 2-inch frame. Adjustable brass rollers, LMI for HVHZ.
Impact Rating LMI
Design Pressure +55/-65 psf
NFRC Certified
Glazing Impact-resistant glass
Made in Florida
Frame finish
Impact protection, built for South Florida
The HR4110A is PGT's Sparta value-tier aluminum horizontal roller impact window, available in 2-panel and 3-panel configurations on a nominal 2-inch frame depth. Adjustable brass rollers, LMI impact-rated for HVHZ installations.
- Aluminum frame engineered for strength and durability
- Large-missile impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Configurations
X = operable panel (it opens) · O = fixed panel (doesn’t open). Panels read left‑to‑right as viewed from outside (hung windows read top‑to‑bottom). Example: XO = operable on the left, fixed on the right.
Grille Styles
1" Flat/Flat
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
74 x 63 in
Design Pressure
+55/-65 psf
U-Factor
1.12
SHGC
0.29–0.7
Visible Trans.
0.14–0.72
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| XO/OX Equal | 21.5 x 16 in | 74 x 63 in | +55/-65 psf |
| XOX 1/4-1/2-1/4 | 44.5 x 16 in | 111 x 63 in | +55/-65 psf |
| XOX 1/3-1/3-1/3 | 33 x 16 in | 111 x 63 in | +55/-65 psf |
Sizes shown are actual DLO frame size.
1/2" flange frame.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield Max | 1.12 | 0.29 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
Options
Related Products
More models in the Sparta Aluminum.
PGT Sparta Aluminum Picture PW4120A
Fixed Window
See price & specs
PGT Sparta Aluminum Sliding Glass Door SGD4130A
Sliding Glass Door
See price & specs
PGT Sparta Aluminum Single Hung SH4100A
Single Hung
See price & specs
PGT Sparta Aluminum Architectural AR4120A
Architectural Shape
See price & specs
Ready to install the PGT Sparta Aluminum Horizontal Roller HR4110A?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other horizontal roller models Armor Pro installs.
Eastern Architectural Systems
EAS 176 Bertha Horizontal Roller Impact Vinyl
See price & specs
ES Windows
ES Windows Prestige ES-P300 Sliding (TB Retrofit)
See price & specs
ECO Window Systems
Eco-Guard Horizontal Rolling Series 200
See price & specs
Eurocraft
Eurocraft EC-300 Horizontal Slider Window
See price & specs
Frequently Asked Questions
The HR4110A is PGT's Sparta value-tier aluminum impact horizontal roller on a nominal 2-inch frame, where the sash slides side to side instead of up and down. It's offered in 2-panel and 3-panel layouts, including XOX configurations split a quarter-half-quarter or in even thirds, which makes it a good fit for wide openings. We install it in South Florida HVHZ projects that need a budget-friendly impact window for a wide span.
Yes, the HR4110A is LMI impact-rated and HVHZ-approved, so it's built with impact-resistant glass and qualifies for Miami-Dade and Broward openings that require impact protection. That lets you cover a wide opening with a sliding window while still meeting hurricane code. We'll confirm the current approval that applies to your configuration and opening at quote.
In its 3-panel XOX configurations the HR4110A reaches up to 111 inches wide by 63 inches tall, while the 2-panel XO/OX layout maxes out around 74 by 63 inches; all configurations carry a design pressure of +55/-65 psf. That makes the 3-panel a strong option for wide living-room or master-bedroom openings. We'll size the window and confirm the design pressure for your opening when we quote.
The HR4110A uses PGT's Energy Shield Max impact glass on a 5/16-inch PVB interlayer, with a U-factor of 1.12 and an SHGC of 0.26 to 0.29 depending on whether grids are added. The laminated impact glass also helps reduce outside noise on a wide window. For South Florida sun, the lower-SHGC option keeps heat gain down, and we'll review the choices at quote.
The HR4110A rides on adjustable brass rollers and is assembled with stainless-steel screws on a 1/2-inch flange frame, which keeps the sliding action smooth and the unit corrosion-resistant in coastal air. It comes in White and Bronze finishes with a 1-inch flat grid option. We coordinate the finish and grid with the rest of your Sparta windows so the home looks consistent.
There's no flat price, because the installed cost depends on whether you choose a 2-panel or 3-panel layout, the overall size, the glass package and grid, the finish, and the condition of the opening. Wider 3-panel units and larger spans cost more than a small 2-panel roller. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the HR4110A for your project.
Yes. Sparta is PGT's value-tier aluminum impact line, large-missile impact-rated and eligible for the High-Velocity Hurricane Zone in Miami-Dade and Broward. The glass is the same laminated impact glass the premium lines use, and the approvals are real — the line simply trims the premium sizes, finishes, and high-pressure configurations to hit a lower price. The exact rating depends on the opening, which we confirm on the quote.
What you give up with Sparta is range, not code compliance. Sparta covers the core operation styles — single hung, horizontal roller, picture, architectural shapes, and a sliding glass door — in white and bronze only, with block-and-tackle balance hardware and a narrower set of sizes and design pressures. WinGuard Aluminum adds more colors, larger sizes, higher pressures, and a broader catalog including casements, awnings, and French doors. We reach for Sparta when impact compliance is required but the budget is the binding constraint.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
