PGT Sparta Aluminum Sliding Glass Door SGD4130A

PGT's value-tier aluminum impact line on the 4000-series platform.

Value-tier aluminum impact sliding door supporting up to 4 panels on 2 tracks or 3 panels on 3 tracks. Stainless and steel tandem rollers, LMI for HVHZ.

Impact Rating LMI Design Pressure +55/-65 psf Glazing Impact-resistant glass Florida Made in Florida

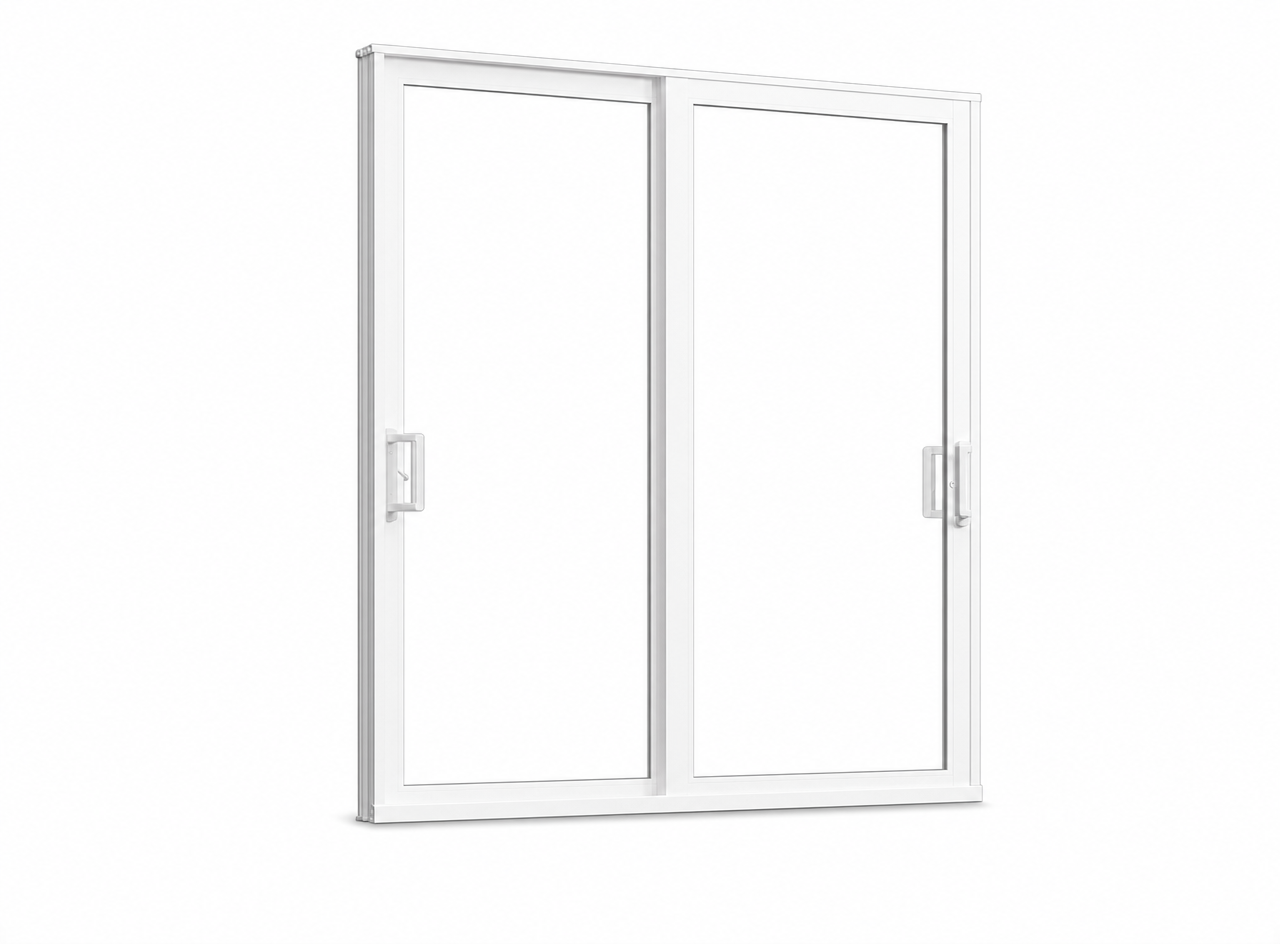

PGT Sparta Aluminum Sliding Glass Door SGD4130A — product render on white background
Frame finish

Impact protection, built for South Florida

The SGD4130A is the sliding door in PGT's value-tier Sparta line, the budget way to put an impact-rated patio opening in an HVHZ home. It runs up to four panels on two tracks, or three on three, with keyed-lock hardware and stainless and steel tandem rollers, and it carries the LMI impact rating Miami-Dade and Broward require. The configurations cover the common patio and lanai openings without the premium panel counts or sizes of the flagship doors.

Armor Pro specs the SGD4130A when a cost-driven full-home replacement still needs a code-compliant slider and the opening is a standard residential size. For wider spans, more panels, or the slimmest sightlines, the step up is the WinGuard Aluminum SGD770A; the trade is price for range.

  • Aluminum frame engineered for strength and durability
  • Large-missile impact-rated laminated glass
  • Energy-efficient Low-E insulated glass options to control heat gain
  • Corrosion-resistant finishes for coastal applications
  • Professionally installed across South Florida by Armor Pro
Grille Styles
1" Flat/Flat
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship

At a Glance

Frame Material Aluminum
Max Size 40.625 x 98 in (per panel)
Design Pressure +55/-65 psf
U-Factor 1.05
SHGC 0.17–0.34
Visible Trans. 0.06–0.52

Sizes & Pressures

Configuration Min size Max size Design pressure
By-Pass 36 x 54 in 40.625 x 98 in (per panel) +55/-65 psf

Door min is 36" x 54"; Window unit min is 36" x 54"; max 40 5/8" DLO width x 98" frame height; max frame area 194.6 sq. ft. in HVHZ.

Glass & Energy Performance

Glass packageU-FactorSHGC
Energy Shield Max1.050.26

U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.

Performance Certifications

NFRC Certified energy ratings

Options

Hardware
Stainless-steel assembly screws (standard)Raised and recessed handles (standard)Keyed lock (standard)Stainless steel and steel tandem rollers (standard)

Related Products

More models in the Sparta Aluminum.

PGT Sparta Aluminum Horizontal Roller HR4110A
PGT Sparta Aluminum Horizontal Roller HR4110A
Horizontal Roller
See price & specs
PGT Sparta Aluminum Picture PW4120A
PGT Sparta Aluminum Picture PW4120A
Fixed Window
See price & specs
PGT Sparta Aluminum Single Hung SH4100A
PGT Sparta Aluminum Single Hung SH4100A
Single Hung
See price & specs
PGT Sparta Aluminum Architectural AR4120A
PGT Sparta Aluminum Architectural AR4120A
Architectural Shape
See price & specs

Ready to install the PGT Sparta Aluminum Sliding Glass Door SGD4130A?

Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.

Get a Free Estimate or call (954) 231-7164

Comparable from Other Brands

Other sliding glass door models Armor Pro installs.

ES Windows Prestige ES-45T Sliding Glass Door (TB)
ES Windows
ES Windows Prestige ES-45T Sliding Glass Door (TB)
See price & specs
EAS 623 Bertha Vinyl Impact SGD
Eastern Architectural Systems
EAS 623 Bertha Vinyl Impact SGD
See price & specs
Eco-Guard Sliding Glass Door Series 700
ECO Window Systems
Eco-Guard Sliding Glass Door Series 700
See price & specs
Eurocraft EC-400 Casement Door / Sliding Glass Door
Eurocraft
Eurocraft EC-400 Casement Door / Sliding Glass Door
See price & specs
From the blog

Related reading

CGI Windows & Doors Review CGI Windows & Doors Review CGI Windows & Doors was discontinued on October 31, 2025 when MITER Brands sunset the brand. Here's what CGI homeowners need to know about their existing windows, warranty coverage, and what to buy instead. Read more
ES Windows Review ES Windows Review ES Windows (Tecnoglass) is the #1 selling impact window manufacturer in Florida by volume. They're approximately 20% less expensive than PGT with Low-E, Kynar coatings, and stainless hardware included standard. Here's our installer's review. Read more
PGT Windows Review PGT Windows Review PGT is the company that created the impact window category after Hurricane Andrew. Here's an installer's review of their product lines, what we see in the field, and how they compare to ES Windows, ECO, and WinDoor. Read more
Best Impact Window Manufacturers in Florida Best Impact Window Manufacturers in Florida Six manufacturers dominate the Florida impact window market. Here's how they compare on price, product range, HVHZ certification, lead times, and what we see after thousands of installations. Read more

Frequently Asked Questions

The SGD4130A is the sliding glass door in PGT's value-tier Sparta line, the budget way to put an impact-rated patio opening in a South Florida home. It supports up to four panels on two tracks or three panels on three tracks, with keyed-lock hardware and stainless-steel and steel tandem rollers. We install it on standard residential patio and lanai openings that need a code-compliant slider without the premium panel counts of the flagship doors.

Yes, the SGD4130A is LMI impact-rated and HVHZ-approved, built with impact-resistant glass so it carries the rating Miami-Dade and Broward require for a patio opening. That makes it a true hurricane-code slider rather than a non-impact door. We'll confirm the current approval that applies to your configuration and opening at quote.

In its by-pass configuration each panel runs from about 36 by 54 inches up to roughly 40.625 by 98 inches, for a total opening up to about 194.6 square feet, and the door carries a design pressure of +55/-65 psf. The frame depth ranges from 4.875 to 6.75 inches depending on the configuration. For wider spans, more panels, or the slimmest sightlines, the step up is PGT's WinGuard Aluminum SGD770A; we'll confirm what fits your opening at quote.

The SGD4130A uses PGT's Energy Shield Max impact glass on a 7/16-inch PVB interlayer, with a U-factor of 1.05, an SHGC of 0.23 to 0.26, and visible transmittance up to about 0.52, plus a condensation resistance rating of 15. The laminated impact glass also helps cut outside noise across a large patio opening. For a sun-facing lanai, the lower-SHGC option keeps heat gain down, and we'll review the choices at quote.

The SGD4130A comes standard with a keyed lock, raised and recessed handle options, stainless-steel and steel tandem rollers, and stainless-steel assembly screws for corrosion resistance in coastal air. It's offered in White and Bronze finishes with a 1-inch flat grid option. We coordinate the door finish and handle style with the rest of your Sparta windows so the patio opening matches the home.

There's no flat price, because the installed cost depends on the panel count and track configuration, the overall opening size, the glass package and grid, the finish, and the condition of the existing opening. A four-panel patio door is a bigger job than a two-panel one. Armor Pro gives a free, no-obligation estimate; we'll measure the opening and price the SGD4130A for your project.

Yes. Sparta is PGT's value-tier aluminum impact line, large-missile impact-rated and eligible for the High-Velocity Hurricane Zone in Miami-Dade and Broward. The glass is the same laminated impact glass the premium lines use, and the approvals are real — the line simply trims the premium sizes, finishes, and high-pressure configurations to hit a lower price. The exact rating depends on the opening, which we confirm on the quote.

What you give up with Sparta is range, not code compliance. Sparta covers the core operation styles — single hung, horizontal roller, picture, architectural shapes, and a sliding glass door — in white and bronze only, with block-and-tackle balance hardware and a narrower set of sizes and design pressures. WinGuard Aluminum adds more colors, larger sizes, higher pressures, and a broader catalog including casements, awnings, and French doors. We reach for Sparta when impact compliance is required but the budget is the binding constraint.

PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
