EnergyVue Vinyl Series
Florida DBPR
Approved
Design Pressure +80/-98.2 psf
NFRC Certified
Made in Florida

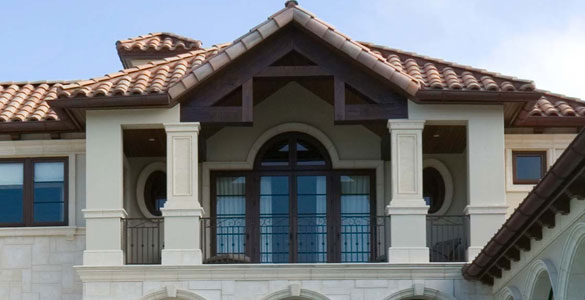

PGT EnergyVue Vinyl Architectural AR5440
PGT's non-impact vinyl line with the best thermal performance in the PGT residential catalog.
Non-impact vinyl casement-matched architectural shapes, the non-impact counterpart of the WinGuard AR5540 for sightline-continuous arched bays.
Florida DBPR
Approved
Design Pressure +80/-98.2 psf
NFRC Certified
Made in Florida
Frame finish
White
Beige
Bronze
Black
Custom
Built for South Florida homes

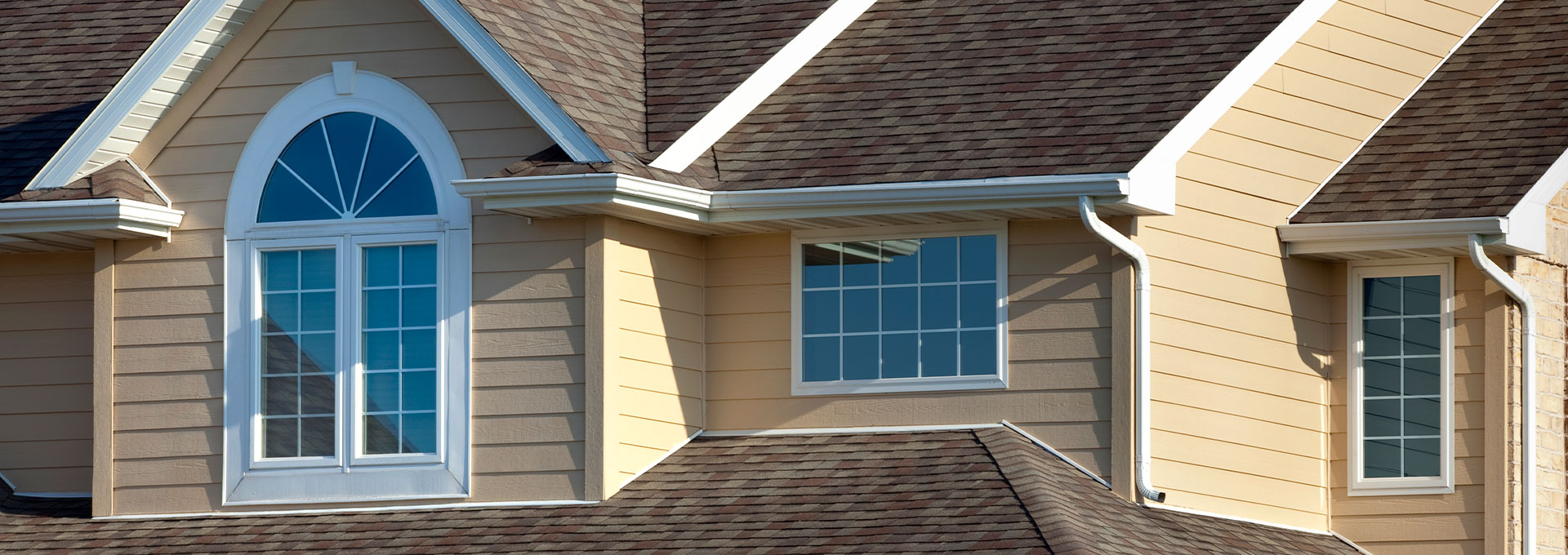

The AR5440 is PGT's EnergyVue non-impact vinyl casement- matched architectural-shape window, the non-impact counterpart of the WinGuard AR5540 for sightline-continuous arched bays.
- Florida Building Code product-approved
- Vinyl frame engineered for strength and durability
- Energy-efficient Low-E insulated glass options to control heat gain
- Professionally installed across South Florida by Armor Pro
Available Shapes
Representative shapes — architectural and fixed-lite units are made to order. Confirm exact shapes and sizes available for your opening at quote.
Grille Patterns
Grille Styles
9/16" Flat Grid-Between-the-Glass13/16" Flat Grid-Between-the-Glass1" Contour Grid-Between-the-Glass
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Vinyl
Max Size
50 sq ft
Design Pressure
+80/-98.2 psf
U-Factor
0.27
SHGC
0.19–0.29
Visible Trans.
0.11–0.53
Sizes & Pressures
| Configuration | Min size | Max size | Design pressure |
|---|---|---|---|
| Architectural Shape (O) | 12.5 x 18 in | 50 sq ft | +80/-98.2 psf |
Sizes shown are actual DLO frame size.
Glass & Energy Performance
| Glass package | U-Factor | SHGC |
|---|---|---|
| Energy Shield | 0.3 | 0.31 |
| Argon/Energy Shield | 0.26 | 0.29 |
| Energy Shield Max | 0.3 | 0.21 |
| Argon/Energy Shield Max | 0.26 | 0.2 |
U-Factor / SHGC shown without grids; add-grid values vary slightly. Confirm exact ratings for your opening at quote.
Performance Certifications
- FL2766.R19
- FL243.R30
- FL245.R17
Related Products

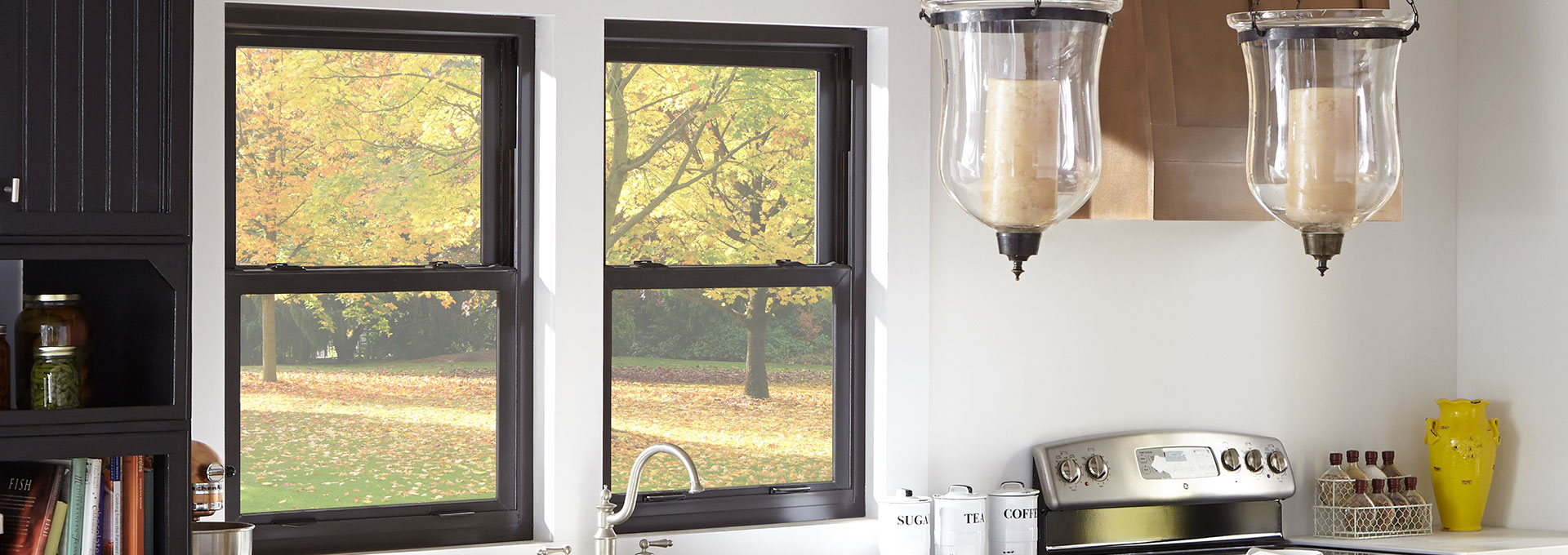

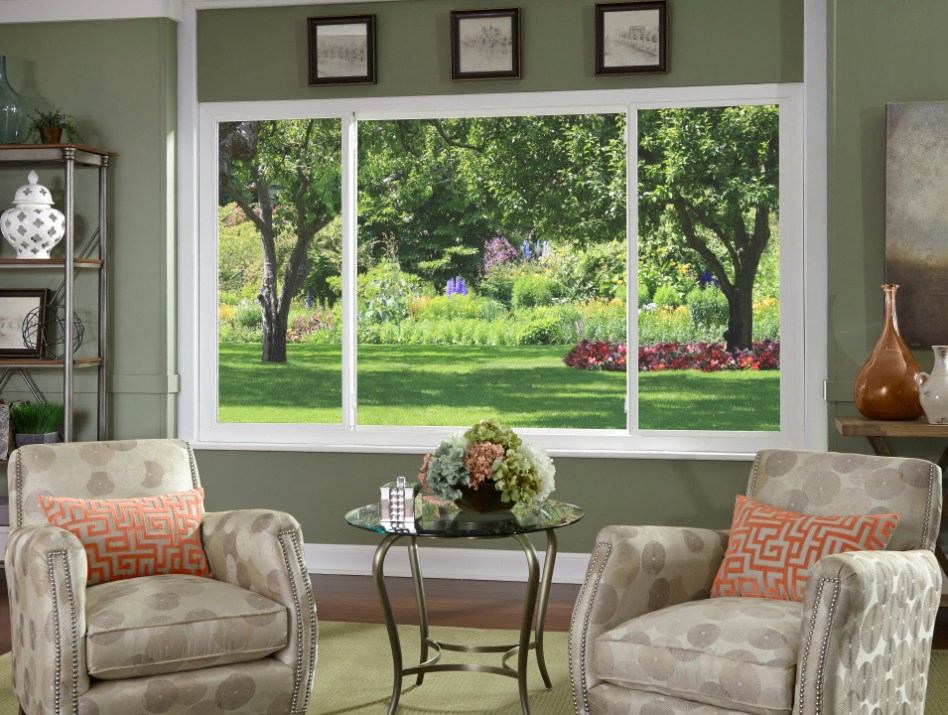

More models in the EnergyVue Vinyl Series.
Comparable from Other Brands
Other architectural shape models Armor Pro installs.
Frequently Asked Questions
The AR5440 is PGT's EnergyVue non-impact vinyl architectural-shape window, built to match the casement profile so you get continuous sightlines across arched bays and shaped openings. We install it where you want a fixed decorative shape over or beside operating EnergyVue casements. Because it is non-impact, it suits inland, non-HVHZ Florida projects where the code does not require impact glazing.
No. The AR5440 is a non-impact window, so it is not approved for the High-Velocity Hurricane Zone and we do not install it in Miami-Dade or Broward as a primary hurricane defense. If you need an impact-rated architectural shape, the AR5440's direct counterpart is the PGT WinGuard AR5540 on the same vinyl frame platform, which we can quote instead. We'll confirm which one your county and opening require before you order.
The AR5440 architectural shape (O configuration) runs from a minimum of 12.5 by 18 inches up to a maximum of 50 square feet. It carries a design pressure of +80/-98.2 psf for wind loads. We measure each opening and confirm the achievable size and rating at the time of quote.
EnergyVue is the best-performing thermal line in PGT's residential catalog, and the AR5440 ranges from a U-factor of 0.26 to 0.30 with an SHGC of 0.18 to 0.31 depending on the glass package. With the Argon/Energy Shield Max package the AR5440 reaches U-factor 0.26 and SHGC as low as 0.18, which is its strongest combination of insulation and solar-heat control. We'll match the glass package to your sun exposure and energy goals when we quote.
The AR5440 comes standard in White, Beige, Bronze, and Black, plus two-tone Bronze-exterior/White-interior and Black-exterior/White-interior. For decorative shapes we can add 7/8-inch Traditional Simulated Divided Lite grids, or 9/16-inch, 13/16-inch, or 1-inch Contour grids between the glass. We'll help you pick a finish and grid that match your casements and home style.
There is no flat price on the AR5440 because it is a made-to-order shape; the installed cost depends on the size and geometry of the shape, the glass package you choose, and the condition of the opening. As a non-impact window it is generally less than the impact-rated AR5540 counterpart. Armor Pro provides a free, no-obligation estimate after we measure your opening.
No — EnergyVue is a non-impact vinyl line, so it cannot be installed in the High-Velocity Hurricane Zone of Miami-Dade and Broward, and it isn't the right choice for any opening that needs a Notice of Acceptance. It belongs on inland Florida addresses where the building code does not require laminated impact glazing. If you're inside the HVHZ or you want storm protection regardless of jurisdiction, the impact counterpart is WinGuard Vinyl, which uses the same frame.
EnergyVue is the line for projects driven by the energy bill rather than the wind map. It posts the best thermal performance in PGT's residential catalog — U-factors from about 0.27 to 0.32 with the EnergyShield Max Low-E package — which is low enough to move a utility bill and clear ENERGY STAR for the climate zone. The welded vinyl frame also resists salt-air corrosion and never needs repainting. We spec it for inland, energy-focused homes where impact glass isn't required by code.
PGT has built impact windows and doors in Venice, Florida since 1980 and is the largest impact-window and -door manufacturer in the country. It was the first company to develop impact-resistant products that met Miami-Dade County's hurricane code after Hurricane Andrew, and the line is engineered specifically for Florida conditions. PGT is now part of the MITER Brands family, alongside WinDoor, ECO, and NewSouth, but the products are still made in Florida under the PGT name.
