MG-7000 Impact Stick Curtain Wall
Stick-built (field-assembled) aluminum impact curtain wall supporting 196-inch single-span heights for floor-to-floor commercial glazing. LMI at 120 psf for HVHZ.
Florida DBPR
Approved
Impact Rating LMI
Design Pressure +130/-130 psf
Made in Florida
Impact protection, built for South Florida

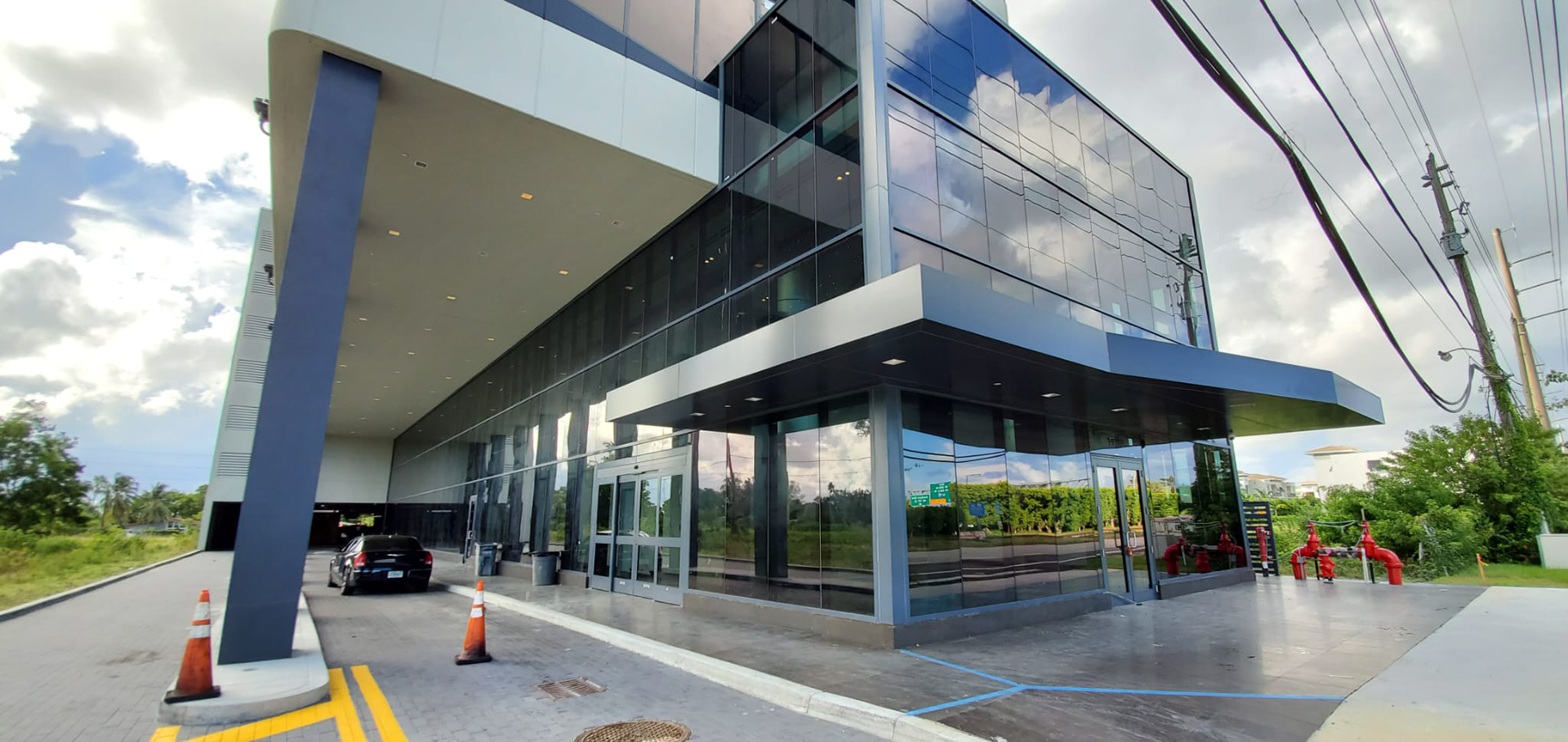

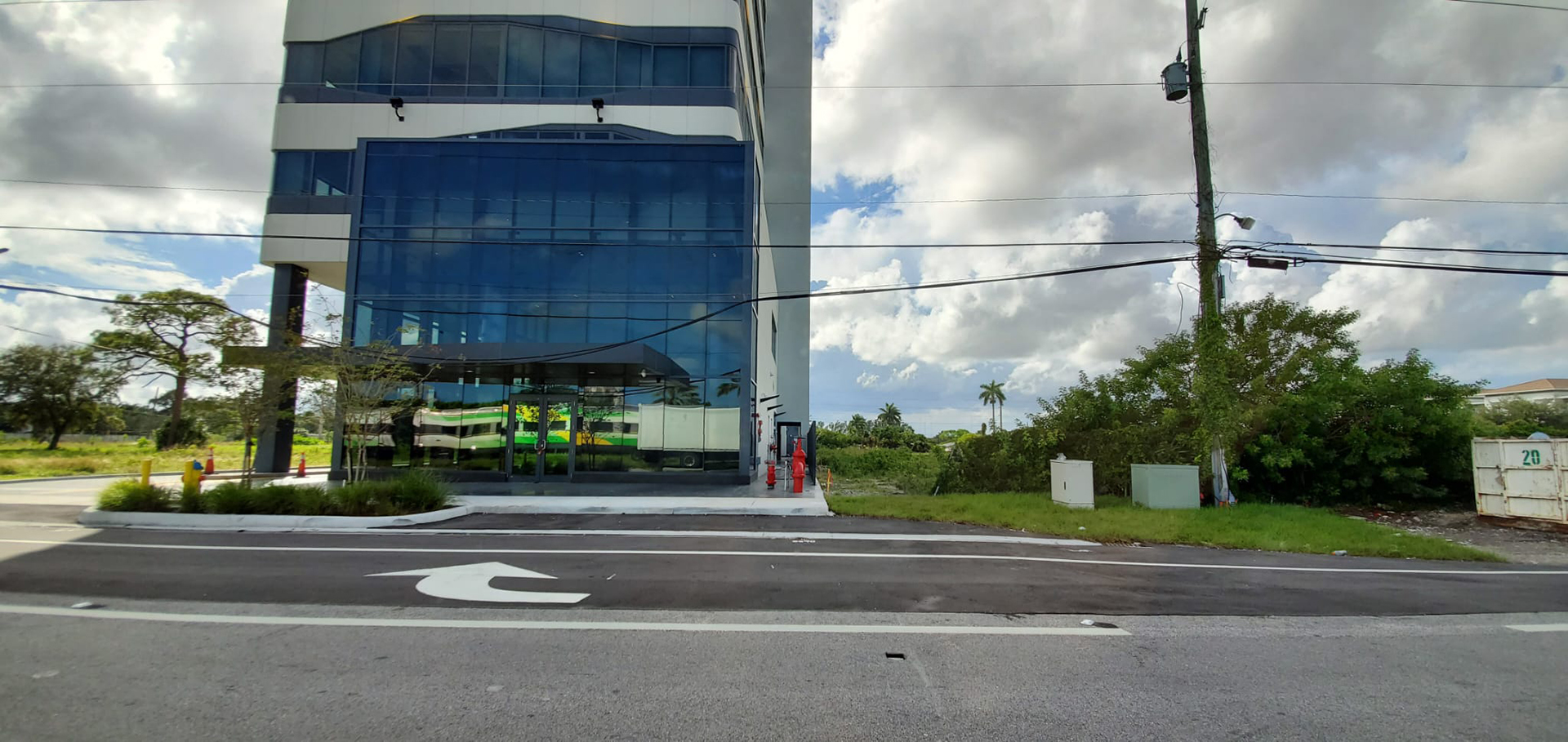

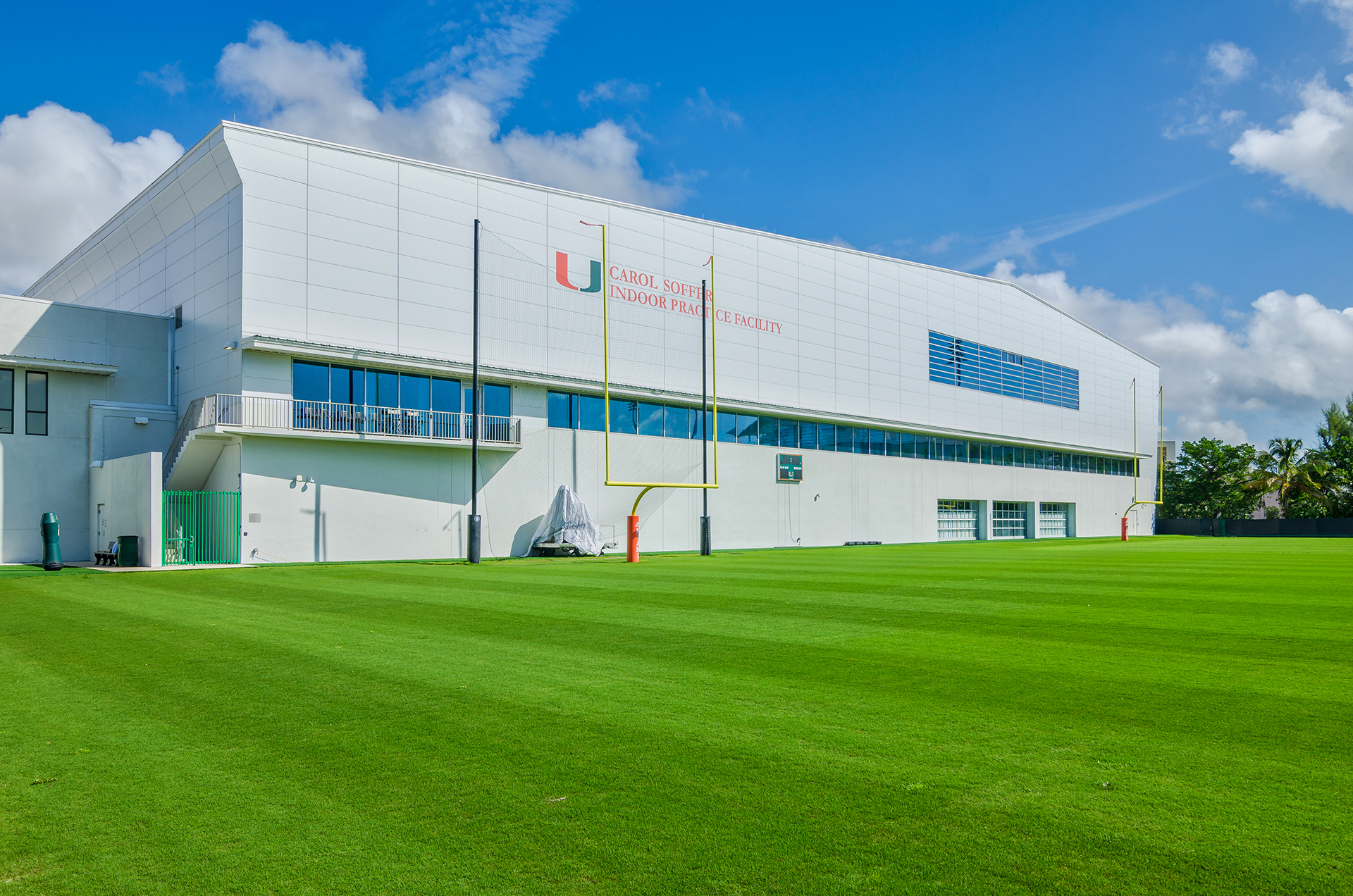

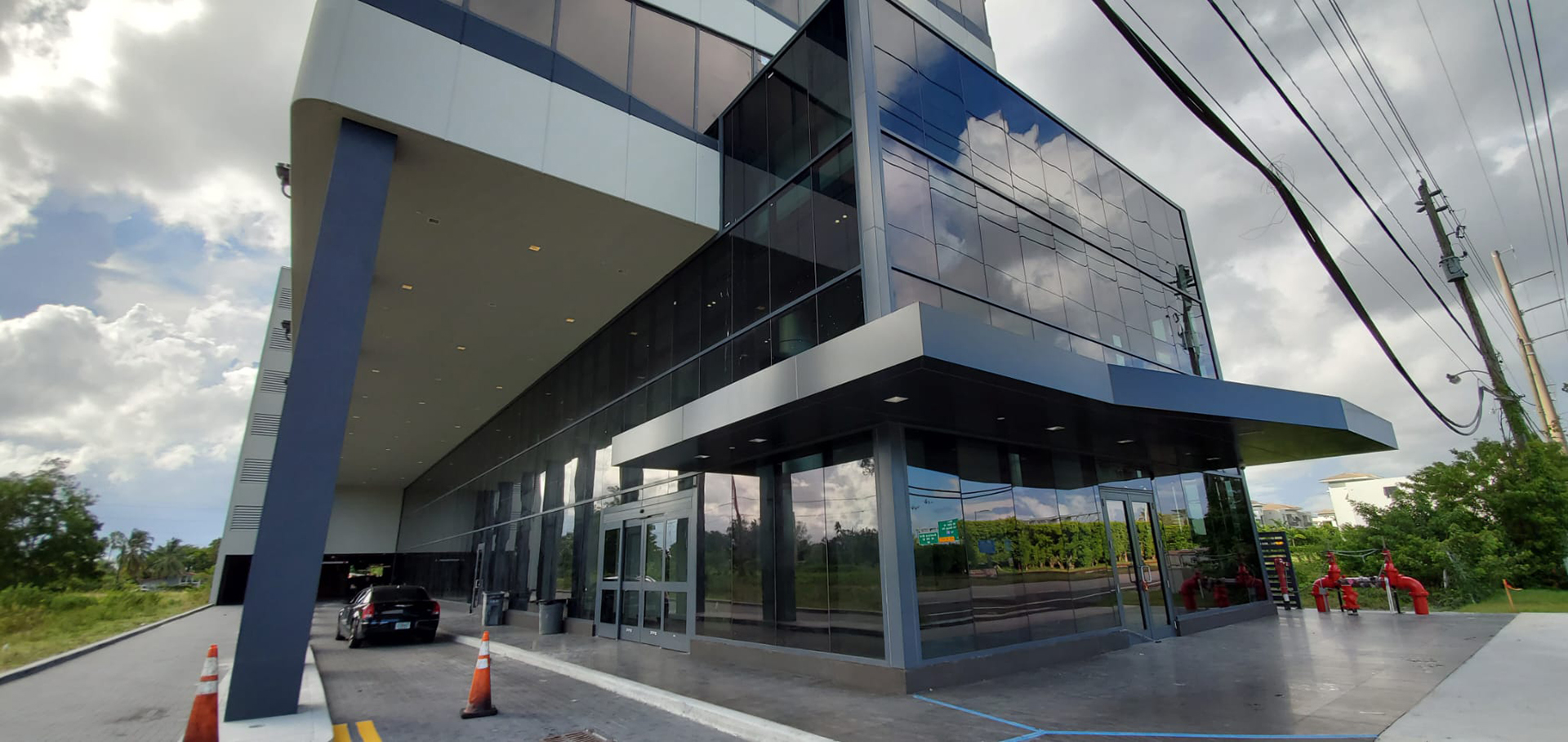

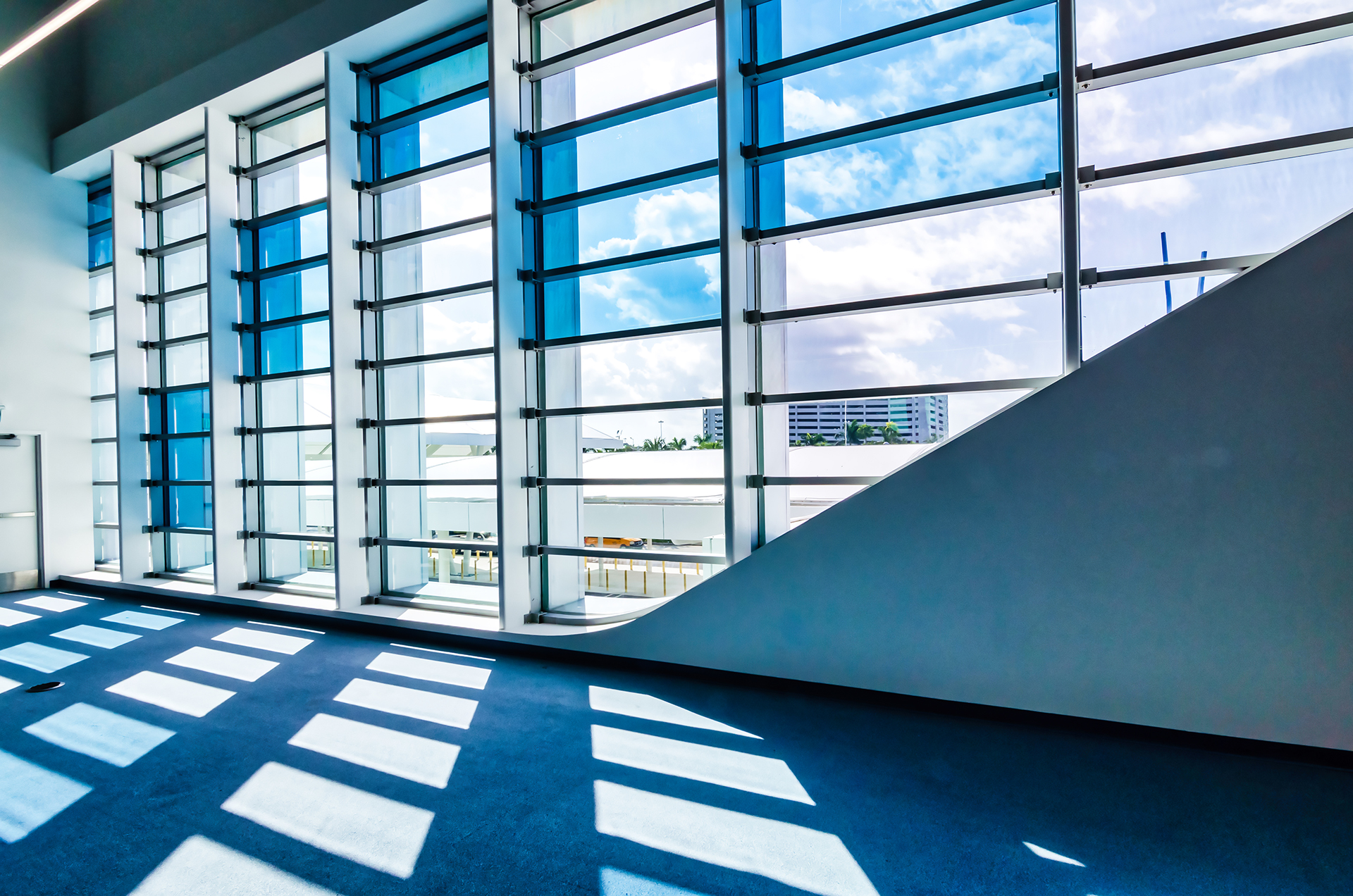

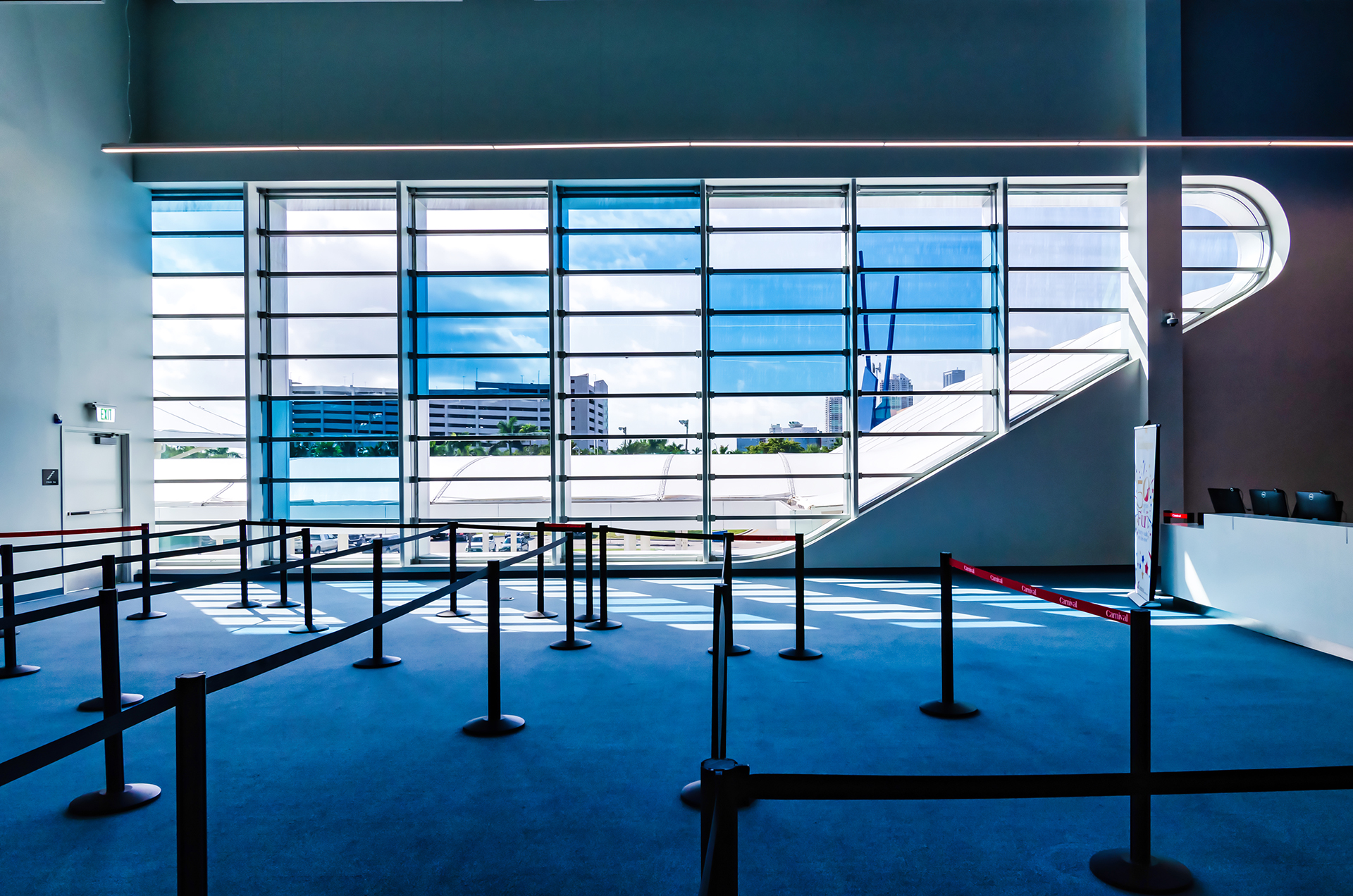

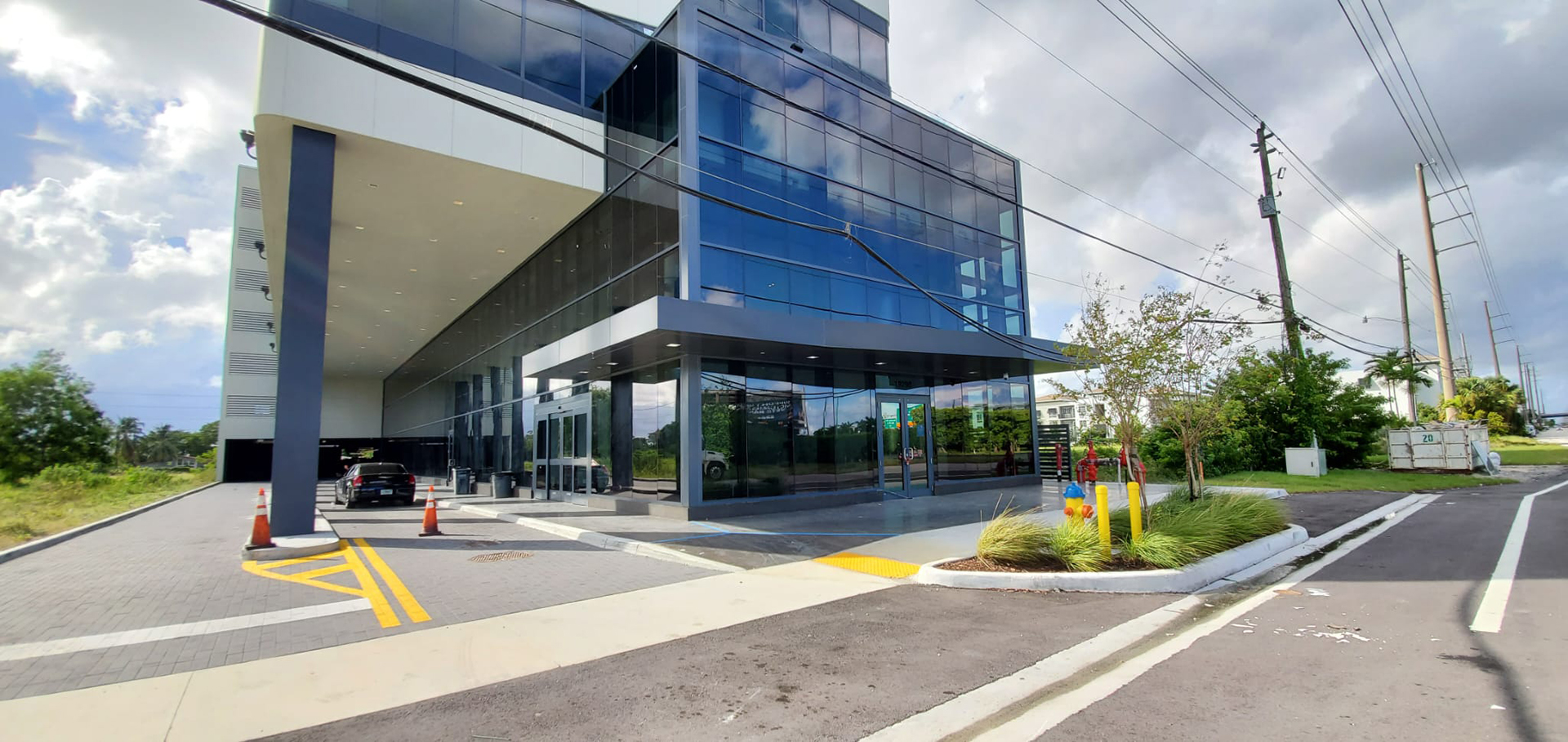

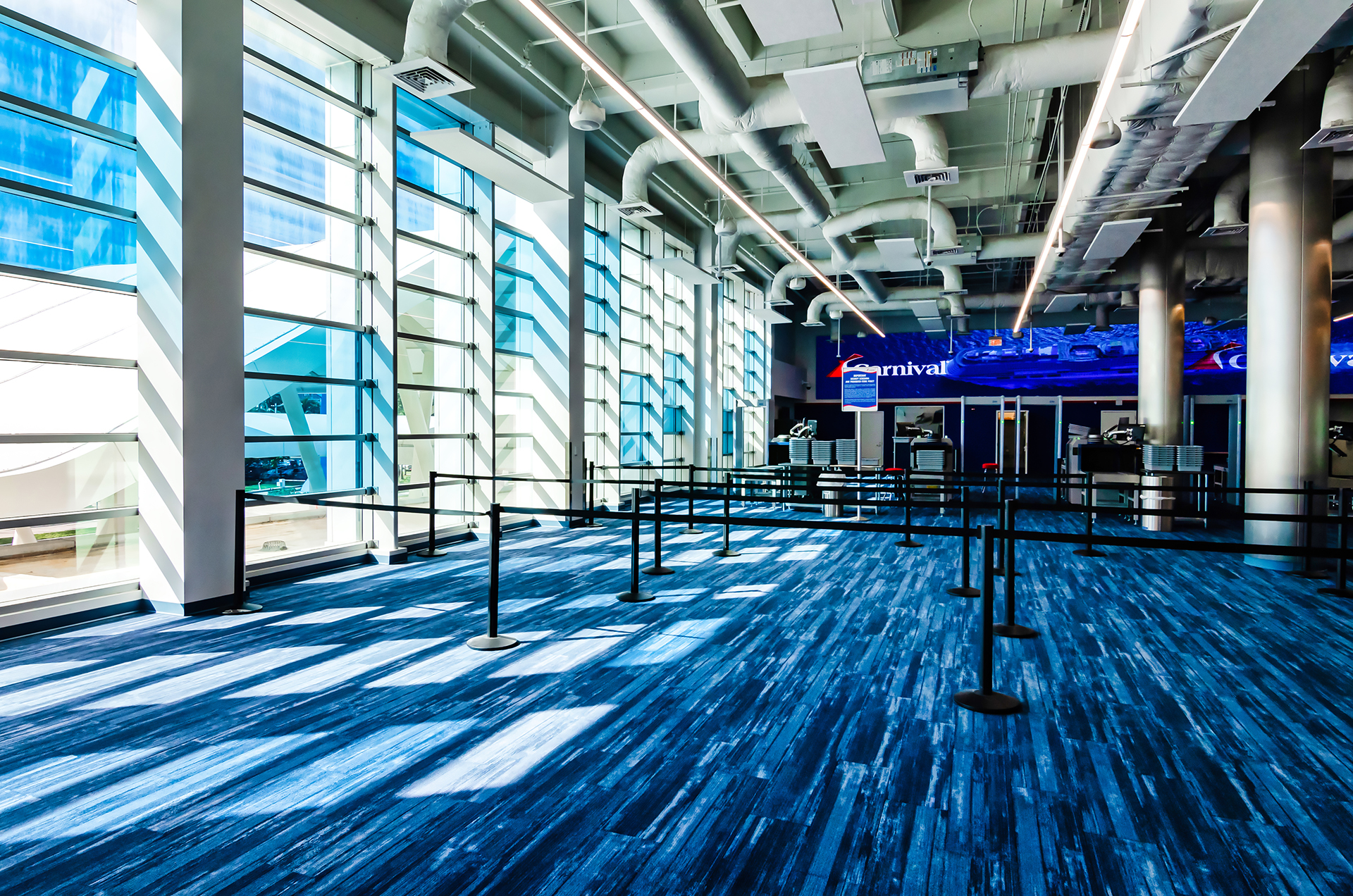

The MG-7000 is Mr Glass's impact curtain wall, the system for full-height commercial glazing in the HVHZ. It is stick-built, assembled in the field piece by piece rather than arriving as pre-assembled unitized panels, and it carries a single-span height capacity of 196 inches for true floor-to-floor glazing. LMI impact-rated at 120 psf, it is built for the building skin on mid-rise structures where the whole elevation is glass.
Armor Pro engages the MG-7000 on commercial and mid-rise projects that need a Florida-approved impact curtain wall rather than a storefront. The distinction matters: a curtain wall hangs off the structure and spans multiple floors, while a storefront like the MG-5000 fills the ground-floor openings. The MG-7000 is the structural-glazing tier of the Mr Glass commercial catalog.
- Florida Building Code product-approved
- Large-missile impact-rated laminated glass
- Professionally installed across South Florida by Armor Pro
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Max Size
196 in
Design Pressure
+130/-130 psf
Impact Rating
LMI
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Impact Resistant Stick Curtain Wall System | 196 in | +130/-130 psf |
Performance Certifications
- FL27101.R2
Options
Ready to install the MG-7000 Impact Stick Curtain Wall?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Frequently Asked Questions
The MG-7000 is Mr Glass's impact curtain wall, the system for full-height commercial glazing in the HVHZ. We install it on commercial and mid-rise projects where the whole elevation is glass and the skin has to hang off the structure and span multiple floors. It is the structural-glazing tier of the Mr Glass commercial catalog, distinct from a storefront.
Stick-built means the MG-7000 is assembled in the field piece by piece, rather than arriving as pre-assembled unitized panels. We build it on site to fit the structure, which gives flexibility on mid-rise commercial elevations. It is engineered for true floor-to-floor glazing with a single-span height capacity of 196 inches.
The distinction is structural: the MG-7000 curtain wall hangs off the building structure and spans multiple floors, while the MG-5000 storefront fills the ground-floor openings between floors and structure. We engage the MG-7000 on commercial and mid-rise projects that need a Florida-approved impact curtain wall rather than a storefront. We'll help match the right system to your building's structure and the floors being glazed.
Yes. The MG-7000 is a large-missile impact (LMI) system approved for the High-Velocity Hurricane Zone, rated up to 130 psf design pressure and carrying Florida Product Approval FL27101.R2. It uses a laminated impact makeup with a SentryGlas (SGP) interlayer between heat-strengthened glass. We'll confirm the applicable approval and rating for your specific elevation at quote.
The MG-7000 carries a single-span height capacity of 196 inches, which supports true floor-to-floor commercial glazing on mid-rise structures. That tall single span is what lets the whole elevation read as glass. We'll confirm the spans and design pressure your structure can support when we review the project.
The MG-7000 curtain wall can be glazed clear as standard, or with gray, bronze, Solex green, or Solargray tints, plus Low-E options including Solarban SB70, SB70XL, and SB60, and privacy glass. The aluminum framing comes with a standard AAMA 2604 powder-coat finish (5-year warranty) or an upgraded AAMA 2605 finish (10-year warranty). We'll help you select glass and finish to fit the building's design and solar-control goals.
Mr Glass runs a deep catalog, and we install across most of it. On the residential side that means impact windows in single-hung, horizontal-roller (sliding), fixed picture, and casement and awning styles, plus a full range of doors: entry and outswing doors, architectural pivot doors, and sliding glass doors including the multitrack pocket slider. They also build a commercial line of impact and non-impact storefronts, window walls, curtain walls, glass railings, and aluminum louvers that we handle on light-commercial projects. We help you match the right Mr Glass product to each opening and pull the matching approval for your county.
Most of the line is, but it depends on the specific product. Mr Glass's premium residential windows are dual-certified to both Large Missile Impact (LMI) and Small Missile Impact (SMI), which covers them for high-rise and coastal work anywhere in the High-Velocity Hurricane Zone of Miami-Dade and Broward. Their value-tier windows and all of their doors carry the impact certification needed for the HVHZ as well, and a couple of commercial products (the MG-275 door and MG-4500 storefront) are non-impact and are not used in the wind-borne-debris zone. We confirm the exact product, rating, and approval for your address before we quote and permit.
Curtain wall, storefront, window-wall, and related framing systems for commercial and multi-family buildings, including impact-rated assemblies for the High-Velocity Hurricane Zone. These are engineered, project-specific systems rather than off-the-shelf units.
