Prestige Series
Impact Rating impact
Design Pressure +95/-95 psf
NFRC Certified

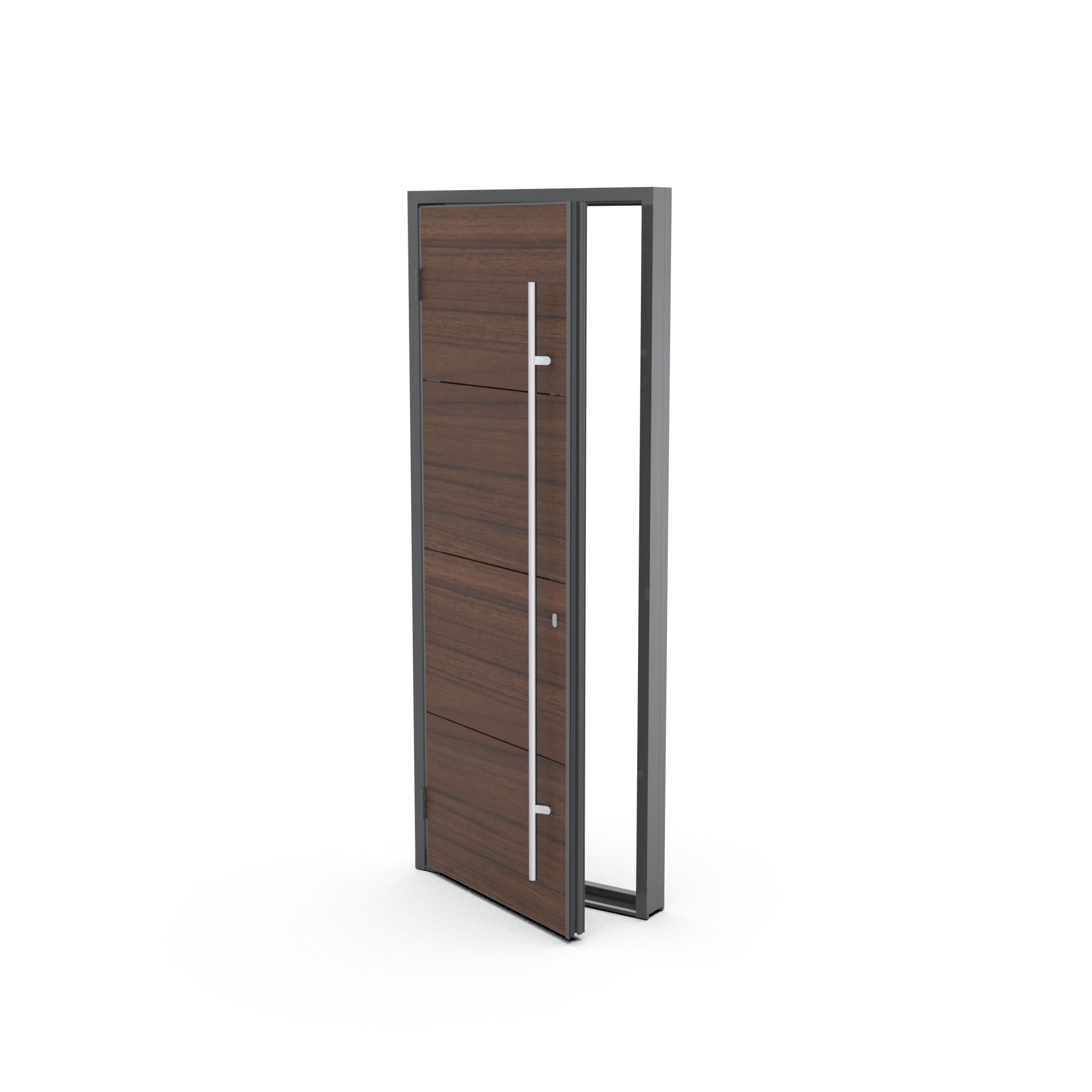

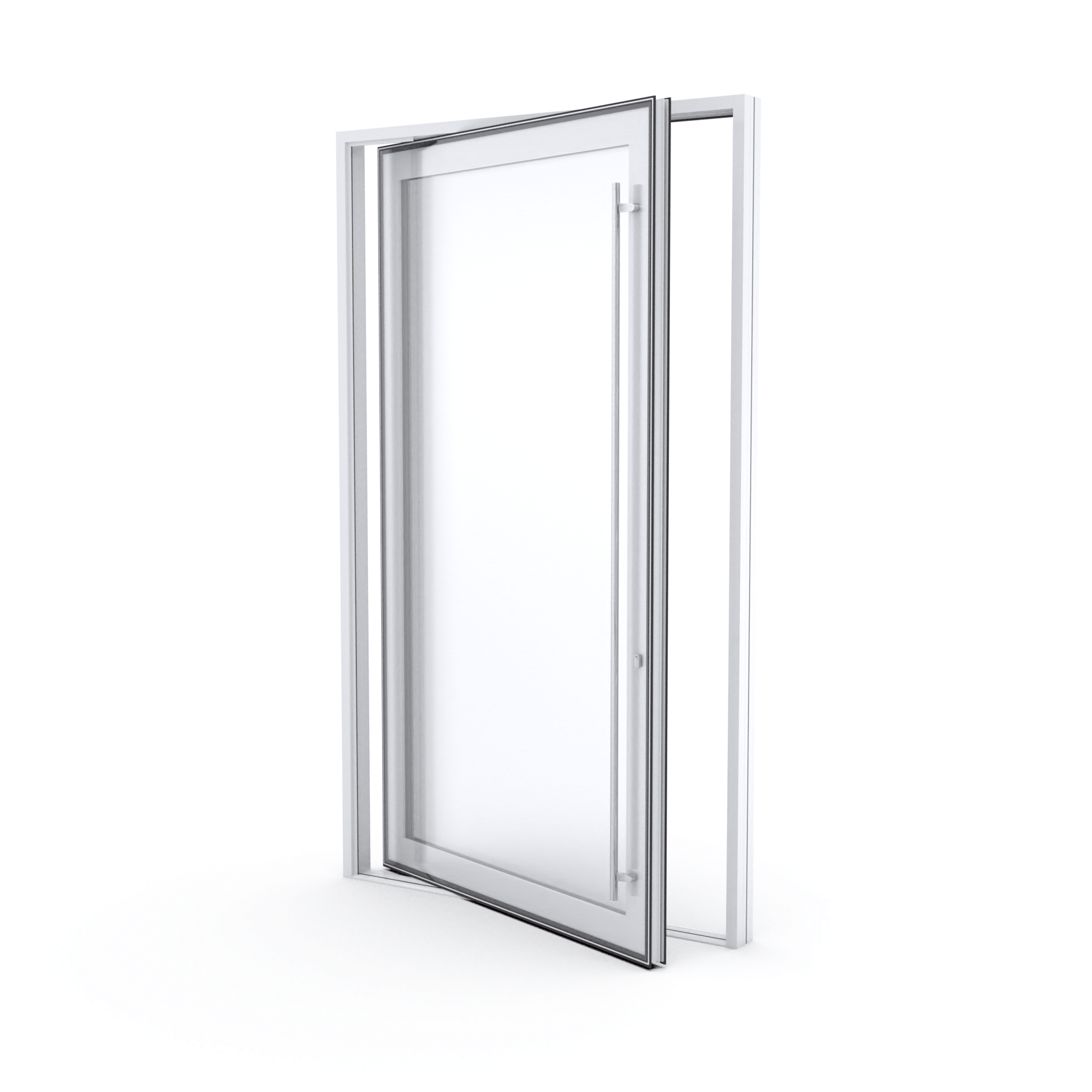

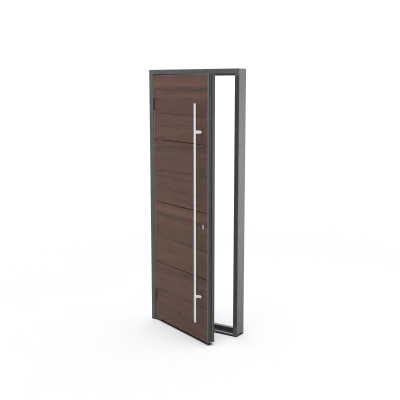

ES Windows Pivot ES-PSD5030T Pivot Door (TB)
ES Windows's premium architectural line, including the award-winning Pivot Door.
Thermally broken variant of the award-winning Pivot, with anodized, painted, and wood-grain finish options and an ADA threshold.
Impact Rating impact
Design Pressure +95/-95 psf
NFRC Certified
Impact protection, built for South Florida
The ES-PSD5030T is the thermally broken variant of the Pivot ES-PSD5030, with the same captured-glass, structural-silicone- glazed, and phenolic-panel configurations on a thermally broken 5-inch aluminum frame. Multipoint locking with anodized, painted, and wood-grain finish options and an ADA-compliant threshold.
- Aluminum (thermally broken) frame engineered for strength and durability
- impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum (thermally broken)
Max Size
72 x 120 in or 60 x 144 in or 90 x 96 in (per panel)
Design Pressure
+95/-95 psf
U-Factor
0.55–0.66
SHGC
0.11–0.36
Visible Trans.
0.11–0.39
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Pivot door | 72 x 120 in or 60 x 144 in or 90 x 96 in (per panel) | +95/-95 psf |
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Insulated laminated (SGP, SB70 Clear) | 0.537 | 0.165 | — | — |
| Insulated | 0.605 | 0.216 | 0.243 | 31 |
| Laminated (SGP) | 0.605 | 0.216 | 0.243 | 31 |
| Laminated (SGP) | 0.605 | 0.216 | 0.243 | 31 |
| Insulated laminated (PVB) | 0.605 | 0.216 | 0.243 | 31 |
| Phenolic panel | 0.605 | 0.216 | 0.243 | 31 |
Performance Certifications
Options
Related Products
More models in the Prestige Series.
ES Windows Prestige ES-45T Sliding Glass Door (TB)
Sliding Glass Door
See price & specs
ES Windows Prestige ES-P300 Sliding (TB Retrofit)
Horizontal Roller
See price & specs
ES Windows Prestige ES-9000 Impact Entry Door
Entry Door
See price & specs
ES Windows Prestige ES-P252 Casement/Awning/Fixed (TB)
Casement
See price & specs
Ready to install the ES Windows Pivot ES-PSD5030T Pivot Door (TB)?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other pivot door models Armor Pro installs.
Frequently Asked Questions
The ES-PSD5030T is the thermally broken variant of the award-winning ES-PSD5030 pivot door, built on the same 5-inch aluminum frame with the same captured-glass, structural-silicone-glazed, and phenolic-panel configurations. The difference is the thermal break in the frame, which separates the inside and outside aluminum to cut heat transfer for better energy performance. We recommend the ES-PSD5030T when you want the same statement pivot entrance but with the added thermal efficiency of a broken frame.
Yes. The ES-PSD5030T carries an impact rating, so it can serve as the front entrance on South Florida homes that require hurricane-rated openings. As your installer, we confirm the specific product approval on file matches your jurisdiction at the time of your permit so the thermally broken pivot meets local impact code.
The ES-PSD5030T pivot door installs up to a maximum of 90 by 96 inches and is rated to a design pressure of +95/-95 psf. It is also available as single, double, and double-with-sidelites configurations, as well as a phenolic-panel or glass door. Because the design pressure your opening must reach depends on its size and wind exposure, we confirm the rating your specific entrance requires at quote.
The ES-PSD5030T's insulated laminated (SGP) package with SB70 clear low-E glass is rated at a U-factor of 0.537 and an SHGC of 0.165, which benefits from the thermally broken frame for lower heat transfer than the standard pivot. It is also offered with insulated, laminated SGP, insulated laminated PVB, and phenolic-panel make-ups. We will recommend the glass package that best balances solar-heat control and budget for your entrance.
The ES-PSD5030T is offered in anodized, painted, and wood-grain frame finishes, the wood-grain palette being a Prestige-line feature, and the glass can be painted, serigraphy-treated, or digitally printed. It comes standard with a multipoint lock and an ADA-compliant threshold for a flush, accessible entrance. We will walk you through the finish, glazing, and panel options so the door fits your entrance.
Installed pricing for the ES-PSD5030T depends on the panel size, the single, double, or sidelite configuration, the glass or phenolic panel choice, the finish, and the condition of the existing opening, so there is no single price. As your installer, Armor Pro handles measurement, the threshold and locking hardware setup, and code-compliant installation. Contact us for a free, no-obligation estimate and we will measure your entrance and quote the ES-PSD5030T.
Yes. Prestige is ES Windows's premium aluminum impact line and carries Miami-Dade NOAs across its windows and doors for HVHZ use in Miami-Dade and Broward, including thermally broken variants. Exact design pressures depend on the product and opening size, which we confirm against your address before ordering.
Prestige is built around large-format and statement openings: the PSD5030 pivot door (a 2024 Glass Magazine award winner), the FX3050 folding door with panels up to roughly 8 by 16 feet, the 16-panel BF5010T bi-fold, and impact sliding glass doors. These are the openings homeowners want to disappear, and Prestige is engineered to make them disappear while keeping an HVHZ impact rating. We size and configure the door system to your opening during the consultation.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
