Prestige Series
Impact Rating impact
Design Pressure +95/-95 psf
NFRC Certified

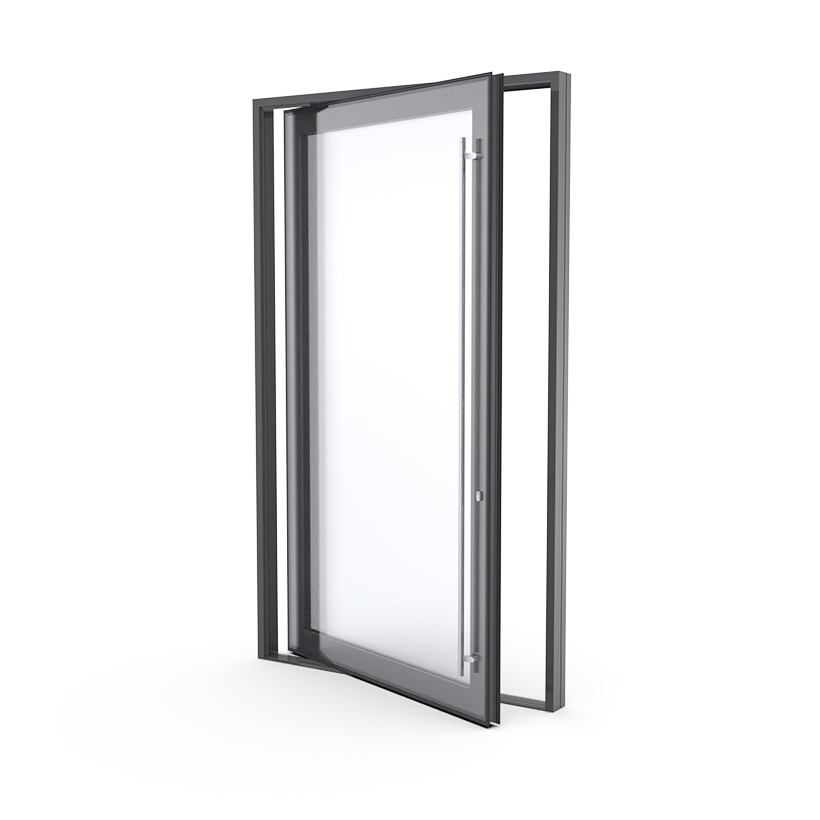

ES Windows Pivot ES-PSD5030 Pivot/Swing Door
ES Windows's premium architectural line, including the award-winning Pivot Door.
Award-winning pivot door supporting panels up to 60 by 144 inches, with automatic drop-down seal, soft-close damper, and three hold positions. Glass Magazine 2024 winner.
Impact Rating impact
Design Pressure +95/-95 psf
NFRC Certified
Impact protection, built for South Florida
The ES-PSD5030 is ES Windows's statement entrance, the pivot door that won Glass Magazine and Luxe RED Readers' Choice in 2024. It carries panels up to 60 by 144 inches on a 5-inch frame, with captured-glass or structural-silicone glazing, a choice of phenolic panel finishes, an automatic drop-down seal, a soft-close damper, and three hold positions (closed, fully open, and reverse open). It is the door a homeowner installs when the front entrance is meant to be the first impression, and it does that while holding an HVHZ impact rating.
Armor Pro reaches for the PSD5030 on architectural and luxury entries where a standard hinged or French door would undersell the elevation. For a wide patio or pool opening that wants to disappear rather than make an entrance, the FX3050 folding wall or a Prestige multi-panel slider is the better tool; the pivot is for the doorway you want people to notice.
- Aluminum frame engineered for strength and durability
- impact-rated laminated glass
- Energy-efficient Low-E insulated glass options to control heat gain
- Corrosion-resistant finishes for coastal applications
- Professionally installed across South Florida by Armor Pro
Impact Protection
Tested to withstand hurricane wind-borne debris
Engineered Strength
Built and tested to Florida product-approval standards
Energy Efficient
Low-E insulated glass options reduce heat gain
Corrosion Resistant
Coastal-grade finishes for salt-air durability
Limited Warranty
Manufacturer warranty plus Armor Pro install workmanship
At a Glance
Frame Material
Aluminum
Max Size
72 x 120 in or 60 x 144 in or 90 x 96 in
Design Pressure
+95/-95 psf
U-Factor
0.55–0.66
SHGC
0.11–0.36
Visible Trans.
0.11–0.39
Sizes & Pressures
| Configuration | Max size | Design pressure |
|---|---|---|
| Pivot Door | 72 x 120 in or 60 x 144 in or 90 x 96 in | +95/-95 psf |
| Swing/French Door - Single | 48 x 144 in | +95/-95 psf |
| Swing/French Door - Double (incl. sidelites) | 86 x 120 in | +95/-95 psf |
Glass & Energy Performance
| Glass package | U-Factor | SHGC | VT | CR |
|---|---|---|---|---|
| Blue, Air | 0.65 | 0.21 | 0.29 | 30 |
| Blue, Argon | 0.64 | 0.21 | 0.29 | 31 |
| Bronze, Air | 0.65 | 0.27 | 0.23 | 30 |
| Bronze, Argon | 0.64 | 0.27 | 0.23 | 31 |
| Clear, Air | 0.655 | 0.36 | 0.385 | 30 |
| Clear, Argon | 0.64 | 0.36 | 0.38 | 31 |
| Green, Air | 0.65 | 0.26 | 0.33 | 30 |
| Green, Argon | 0.64 | 0.26 | 0.33 | 31 |
| Gray, Air | 0.65 | 0.23 | 0.15 | 30 |
| Gray, Argon | 0.64 | 0.23 | 0.15 | 31 |
| Clear, Low-E, Air | 0.57 | 0.177 | 0.273 | 31 |
| Clear, Low-E, Argon | 0.55 | 0.177 | 0.273 | 31 |
| Gray, Low-E, Air | 0.57 | 0.143 | 0.163 | 31 |
| Gray, Low-E, Argon | 0.55 | 0.14 | 0.163 | 31 |
Performance Certifications
Options
Related Products
More models in the Prestige Series.
ES Windows Prestige ES-45T Sliding Glass Door (TB)
Sliding Glass Door
See price & specs
ES Windows Prestige ES-P300 Sliding (TB Retrofit)
Horizontal Roller
See price & specs
ES Windows Prestige ES-9000 Impact Entry Door
Entry Door
See price & specs
ES Windows Prestige ES-P252 Casement/Awning/Fixed (TB)
Casement
See price & specs
Ready to install the ES Windows Pivot ES-PSD5030 Pivot/Swing Door?
Armor Pro measures, permits, and installs it across South Florida — code-compliant and warrantied. Get a free, no-obligation estimate.
Comparable from Other Brands
Other pivot door models Armor Pro installs.
Frequently Asked Questions
The ES-PSD5030 is ES Windows's flagship pivot door, a 5-inch-frame statement entrance that won Glass Magazine 2024 and Luxe RED Readers' Choice 2024. It pivots on a central axis rather than swinging on side hinges, with an automatic drop-down seal, a soft-close damper, and three hold positions: closed, fully open, and reverse open. We reach for the ES-PSD5030 on architectural and luxury South Florida entries where a standard hinged or French door would undersell the elevation.
Yes. The ES-PSD5030 carries an HVHZ impact rating, so it can be the front entrance on homes in the High-Velocity Hurricane Zone while still being the centerpiece of the elevation. As your installer, we confirm the specific product approval on file matches your jurisdiction at the time of your permit so the door meets local impact code.
As a true pivot the ES-PSD5030 installs up to 90 by 96 inches, and individual panels can run up to 60 by 144 inches. It is also offered as a single swing/French door up to 48 by 144 inches and a double swing/French configuration, including sidelites, up to 86 by 120 inches. All three configurations are rated to a design pressure of +95/-95 psf, and we confirm the rating your specific opening requires at quote.
The ES-PSD5030 offers a deep range of 1-1/4-inch insulated laminated packages. Its most efficient make-ups use SB-series low-E with argon fill and reach a U-factor as low as 0.55, with SHGC options down to about 0.11 to 0.16 for strong solar control, a visible-transmittance range, and condensation resistance up to 31. A clear, non-low-E build runs about U 0.65 with an SHGC near 0.36 for maximum daylight. We will recommend the glass that best balances heat control, clarity, and budget for your entrance.
The ES-PSD5030 can be ordered as a glass door or as a solid phenolic-panel door, with captured-glass or structural-silicone glazing for a cleaner sightline. Frames come in anodized, painted, and wood-grain finishes, and the glass itself can be painted, serigraphy-treated, or digitally printed. It comes standard with a multipoint lock and an ADA threshold, and we will walk you through the panel, finish, and glazing choices so the door fits the entrance you want.
Installed pricing for the ES-PSD5030 depends on the panel size, whether it is a pivot, single, or double swing configuration, the glass or phenolic panel choice, the finish, and the condition of the existing opening, so there is no single price. As your installer, Armor Pro handles measurement, the soft-close and seal hardware setup, and code-compliant installation. Contact us for a free, no-obligation estimate and we will measure your entrance and quote the ES-PSD5030.
Yes. Prestige is ES Windows's premium aluminum impact line and carries Miami-Dade NOAs across its windows and doors for HVHZ use in Miami-Dade and Broward, including thermally broken variants. Exact design pressures depend on the product and opening size, which we confirm against your address before ordering.
Prestige is built around large-format and statement openings: the PSD5030 pivot door (a 2024 Glass Magazine award winner), the FX3050 folding door with panels up to roughly 8 by 16 feet, the 16-panel BF5010T bi-fold, and impact sliding glass doors. These are the openings homeowners want to disappear, and Prestige is engineered to make them disappear while keeping an HVHZ impact rating. We size and configure the door system to your opening during the consultation.
ES Windows is the residential and light-commercial fenestration brand of Tecnoglass Inc. (NYSE: TGLS), and the products are manufactured at the company's complex in Barranquilla, Colombia. What makes the brand unusual is that the parent makes its own architectural glass and aluminum extrusions and then assembles the finished windows and doors in-house, so a single company stands behind the whole assembly rather than buying glass and frames from outside suppliers. We install and service ES Windows products throughout South Florida.
Explore more: All Pivot Doors we install · Window and Door Designer and Visualizer
